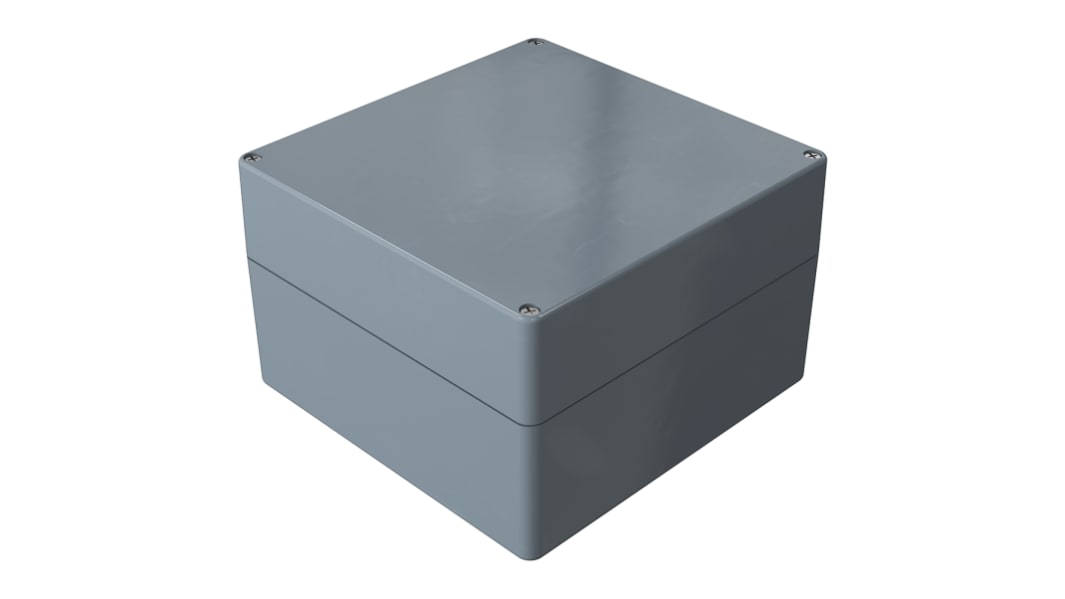

Rose Polyester Standard Series Grey Glass Fibre Reinforced Polyester Enclosure, IP66, IK08, Grey Lid, 255 x 250 x 161mm
- RS Stock No.:
- 229-1393
- Mfr. Part No.:
- 02252616
- Brand:
- Rose
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£245.91
(exc. VAT)
£295.09
(inc. VAT)
- RS Stock No.:
- 229-1393
- Mfr. Part No.:
- 02252616
- Brand:
- Rose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Rose | |
Body Material | Glass Fibre Reinforced Polyester | |
External Length | 255 mm | |
External Height | 255 mm | |
External Width | 250 mm | |
External Dimensions | 255 x 250 x 161mm | |
Range | Glass fibre reinfored Polyeser Enclosure | |
IP Rating | IP66 | |
Colour | Grey | |
Lid Colour | Grey | |
Flanged | No | |
Hazardous Area Certification | Lloyds Register, Maritime Register, UL 508 | |
Shielded | No | |
Series | Polyester Standard | |
Number Of Knockouts | 0 | |
Weight | 3300g | |
Transparent Door | No | |
IK Rating | IK08 | |
RAL Code | RAL 7000 | |
Gasket Material | Chloroprene | |
Select all | ||
---|---|---|
Brand Rose | ||
Body Material Glass Fibre Reinforced Polyester | ||
External Length 255 mm | ||
External Height 255 mm | ||
External Width 250 mm | ||
External Dimensions 255 x 250 x 161mm | ||
Range Glass fibre reinfored Polyeser Enclosure | ||
IP Rating IP66 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged No | ||
Hazardous Area Certification Lloyds Register, Maritime Register, UL 508 | ||
Shielded No | ||
Series Polyester Standard | ||
Number Of Knockouts 0 | ||
Weight 3300g | ||
Transparent Door No | ||
IK Rating IK08 | ||
RAL Code RAL 7000 | ||
Gasket Material Chloroprene | ||
- COO (Country of Origin):
- DE
ROSE Grey Glass-Fibre Reinforced Polyester Enclosure, 255mm Width, 161mm Depth - Polyester Standard Series - 02252616
This general-purpose enclosure from ROSE protects your delicate electronic parts from mechanical and environmental hazards. Its glass fibre-reinforced thermoset polyester construction is resistant to corrosion and impacts of up to seven joules for use in demanding industrial environments. Thanks to its IP66 (ingress protection) rating, the enclosure is protected against dust and high-pressure water jets. This makes it suitable for use in both indoor and outdoor applications.
Features & Benefits
• Halogen-free construction means it won't release toxic fumes in the event of a fire for enhanced safety
• Wide operating temperature range of -40°C to +100°C for use in hot and cold environments
• Suitable for mounting on a DIN rail or mounting plate for flexible installation
• Chloroprene seal prevents contaminants from interfering with sensitive electrical components
• Light weight of 3.596kg to minimise strain on your mounting surface
• Wide operating temperature range of -40°C to +100°C for use in hot and cold environments
• Suitable for mounting on a DIN rail or mounting plate for flexible installation
• Chloroprene seal prevents contaminants from interfering with sensitive electrical components
• Light weight of 3.596kg to minimise strain on your mounting surface
Applications
• Food and beverage production
• Chemical industry
• Terminals and push buttons
• Chemical industry
• Terminals and push buttons
How large is this enclosure?
This enclosure has dimensions of 250 (height) x 255 (width) x 161mm (depth), giving you ample storage space for your components.
