Schneider Electric Spacial SF Series Grey Galvanised Steel General Purpose Enclosure, IP55, IK10, 2000 x 1000 x 800mm

RS Stock No.:: 211-4007
Mfr. Part No.:: NSYSF201080
Brand:: Schneider Electric

Schneider Electric Spacial SF Series Grey Galvanised Steel General Purpose Enclosure, IP55, IK10, 2000 x 1000 x 800mm

Price Each

£1,083.60

(exc. VAT)

£1,300.32

(inc. VAT)

Available to back order for despatch 21/02/2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 +	£1,083.60

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 211-4007
Mfr. Part No.:: NSYSF201080
Brand:: Schneider Electric

Datasheet NSYSF201080

Spacial SF Steel Floor Standing General Purpose Enclosures No Mounting Plate.

Schneider Electric this is the Spacial SF range for Steel floor standing enclosures and the Spacial SF accessories needed to build a floor standing enclosure. The general purpose enclosures are IP55 rated and can be supplied already assembled or in a kit and are suitable for automation and control to LV electrical distribution. The Spacial SF General Purpose enclosures provide you with a rigid profile, easy to assemble and are recognised as one of the most robust enclosures available.

Floor standing Spacial SF Steel General Purpose Enclosure Benefits.

600 plus various configurations available (with kit model).

One of the most hard wearing and robust ranges available.

Can withstand 1,000 kg distributed within the enclosures volume.

Easy and quick to assemble.

General Purpose Enclosure Protection Provided.

IP 55 to IEC 60529.

IK 10 to IEC 62262 (IK 08 if a transparent door is fitted).

General Purpose Enclosure Certifications.

IEC 62 208, BV rules for classification steel ships, DNV

Vibration Class A, UL & CUL 1,12 & 12K, NEMA 12 & 12K.

Spacial SF General Purpose Enclosure Applications.

Industrial.

Energy and Infrastructures.

Building.

Automation and control.

LV Electrical distribution.

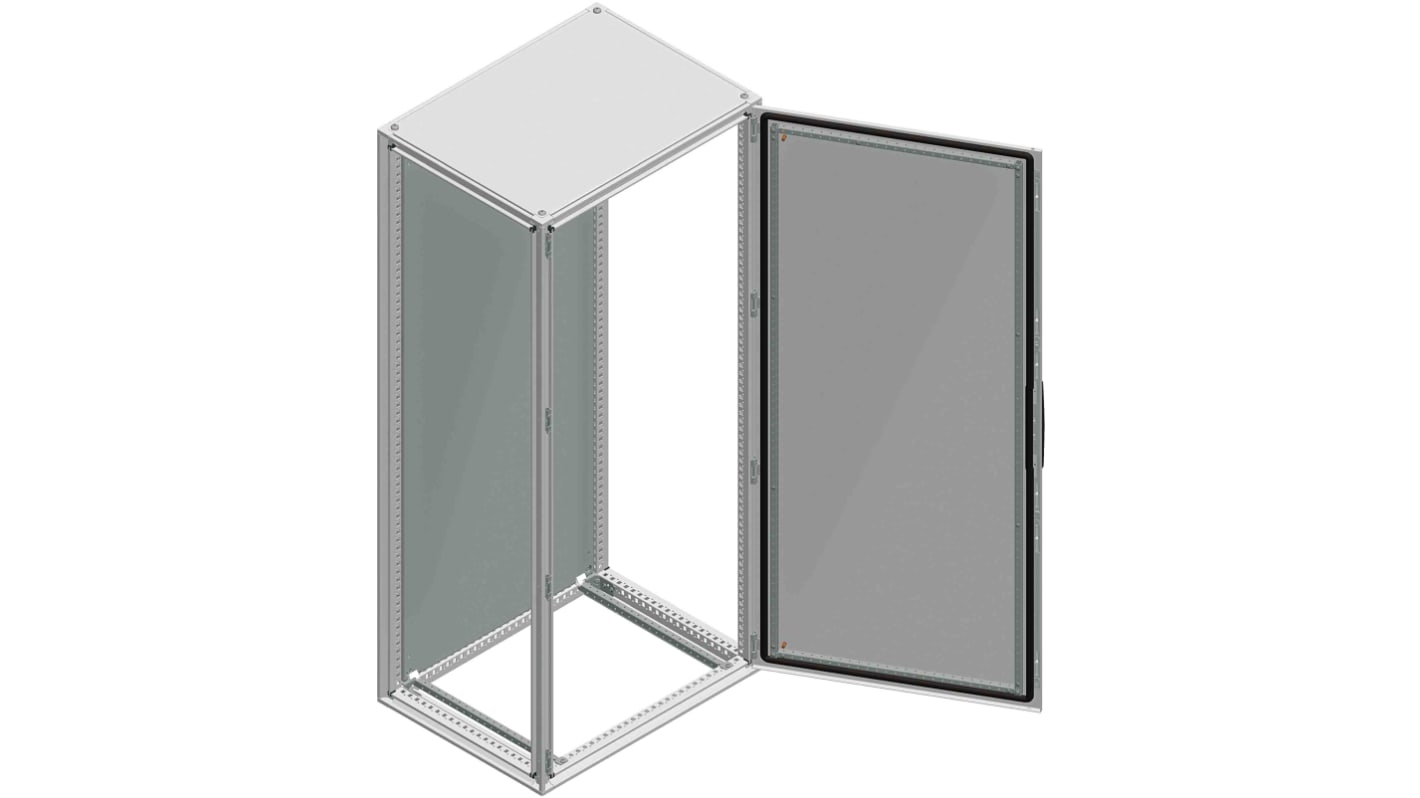

NSYSF201080 Spacial SF General Purpose Floor Standing Enclosure.

Floor standing.

Plain front.

1 x 120° Reversible door.

4 Points lock, handle with 5 mm double bar insert (front door).

No Mounting or Gland plate.

Enclosure colour Grey RAL 7035.

Enclosure handle Black RAL 9005.

Epoxy polyester powder finish.

Net weight 134.62 kg.

What is included?

2 x Sliding rails, 4 x Mounting plate brackets, 1 x Enclosure structure, 1 x Door,

1 x Locking system with handle, 1 x Rear panel, 1 x enclosure roof / top.

General Purpose Enclosure Material.

Frame – Galvanised steel.

Uprights - Galvanised steel.

Door – Sheet steel.

Panels – Sheet steel.

Hinge – Zamak.

Enclosure door handle – Polyamide 6 with 30% Fibreglass.

Spacial SF Enclosure Structure.

Formed from a single section.

Panels and doors are built into the enclosure structure.

Perforated enclosure structure with a pitch of 25 mm.

Vertical uprights joined with top and bottom frames.

What are the Enclosures removable parts?

Door (screw hinge).

Rear panel, enclosure top, roof, mounting plate bracket, sliding rail (all by screws).

Standards

IEC 62208

Attribute	Value
Body Material	Galvanised Steel
External Length	2000 mm
External Height	1000 mm
External Width	800 mm
External Dimensions	2000 x 1000 x 800mm
Range	Spacial
IP Rating	IP55
Colour	Grey
Flanged	No
Shielded	Yes
Series	Spacial SF
IK Rating	IK10
Better World Verification	Green Premium
Better World Product	Yes
RAL Code	RAL 7035
