Hammond 1551 Series Clear ABS Enclosure, IP54 Flanged 15.5 mm, 35 mm, 20 mm
- RS Stock No.:
- 197-4434
- Distrelec Article No.:
- 301-00-667
- Mfr. Part No.:
- 1551ACLR
- Brand:
- Hammond
Subtotal (1 unit)*
£2.86
(exc. VAT)
£3.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 04 May 2026
- Plus 11 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.86 |
*price indicative
- RS Stock No.:
- 197-4434
- Distrelec Article No.:
- 301-00-667
- Mfr. Part No.:
- 1551ACLR
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | ABS | |
| Product Type | Enclosure | |
| External Height | 15.5mm | |
| External Length | 35mm | |
| External Width | 20mm | |
| IP Rating | IP54 | |
| Colour | Clear | |
| Lid Colour | Clear | |
| Flanged | Yes | |
| Shielding | Unshielded | |
| Hazardous Area Certification | No | |
| Series | 1551 | |
| Standards/Approvals | RoHS | |
| Weight | 05g | |
| Transparent Door | Yes | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material ABS | ||
Product Type Enclosure | ||
External Height 15.5mm | ||
External Length 35mm | ||
External Width 20mm | ||
IP Rating IP54 | ||
Colour Clear | ||
Lid Colour Clear | ||
Flanged Yes | ||
Shielding Unshielded | ||
Hazardous Area Certification No | ||
Series 1551 | ||
Standards/Approvals RoHS | ||
Weight 05g | ||
Transparent Door Yes | ||
Explosion Proof No | ||

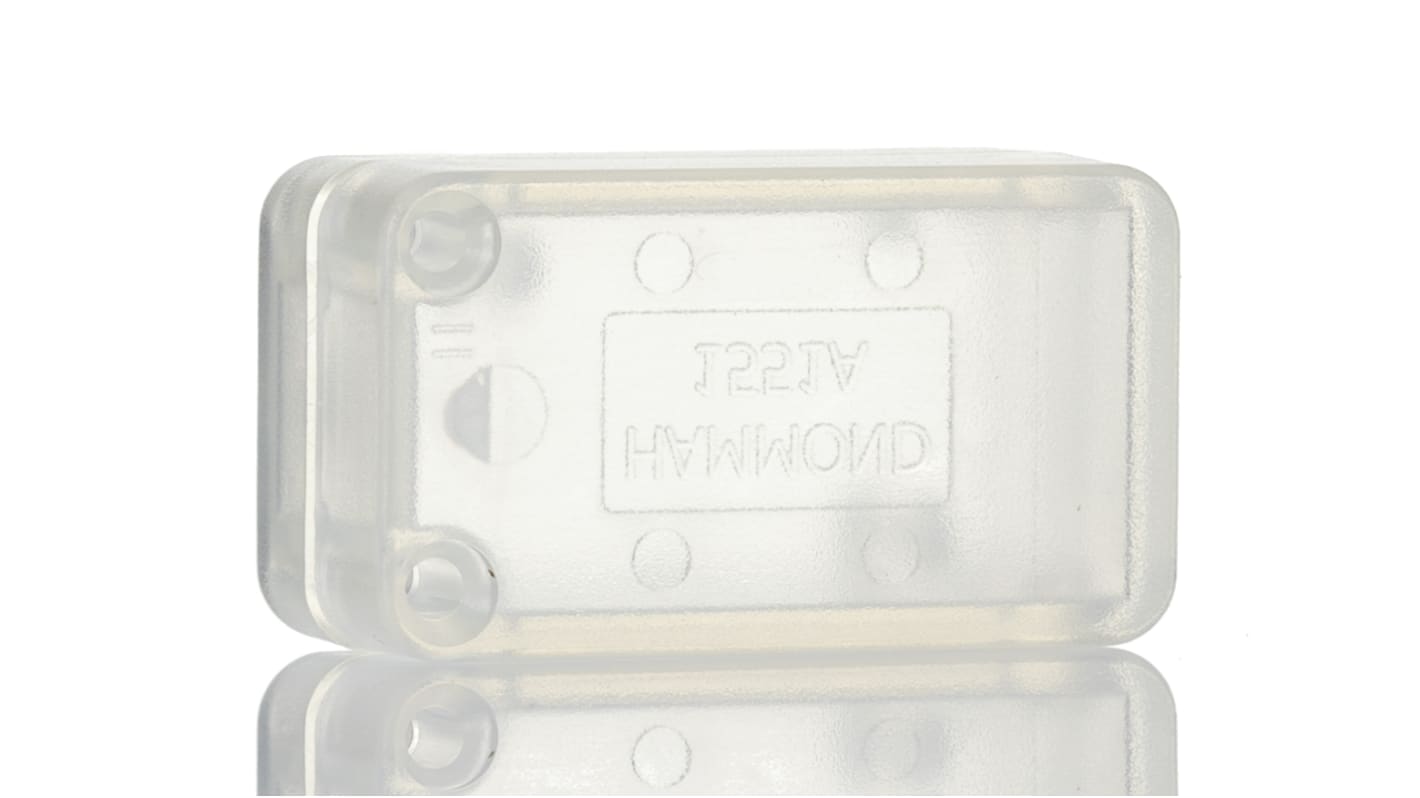

Hammond Enclosure, 35 (L) x 20 (W) x 15mm (H), ABS Construction, Transparent - 1551MINI Series -1551ACLR
For a clear-cut way to protect your electronics, use this transparent enclosure from Hammond. Made from moulded ABS, it's strong and resistant to abrasion, impacts and chemicals. This means it's well-suited to industrial environments. Inside there's space to horizontally mount a PCB with a maximum length of 29mm and width of 15.5mm. Stand-offs provide your board with a sturdy base and the lid is fully removable, so you'll have no trouble fitting this box out. As the lid screws down, you can keep everything secure inside. A recess on the cover provides a handy spot for adding labels, so your installations are easy to identify.
Features & Benefits
• Material is slow-burning to improve fire safety and protect your electronics
• Self-tapping screws mean there's no need to drill holes
• Satin finish makes it easy to wipe clean
Applications
• Consumer electronics
• Computer equipment
• Telecommunications networks
• Security systems
• Instrumentation
Does this enclosure protect against dust or water?
This enclosure has an IP54 rating, meaning it keeps both dust and water splashes out and protects your components from the elements.
