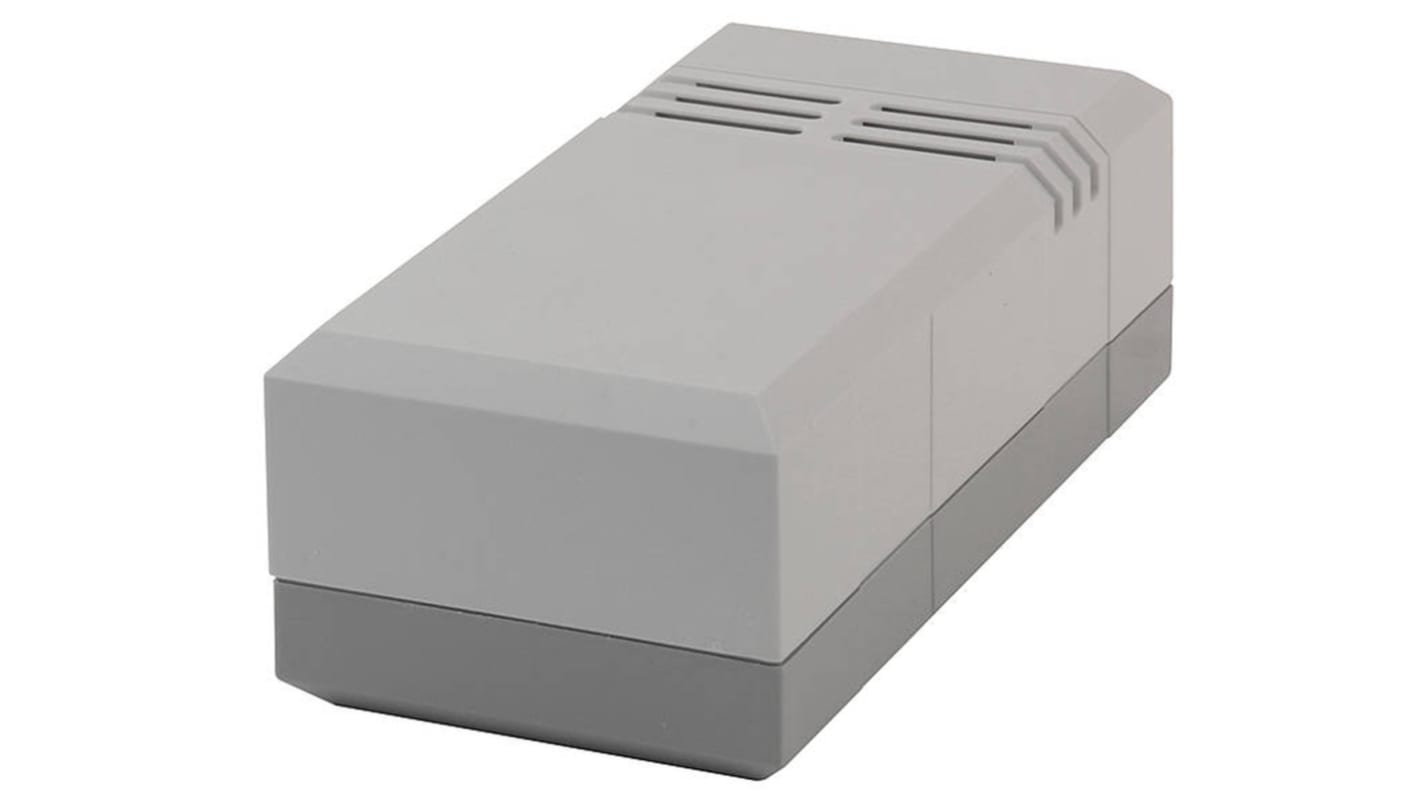

Bopla Elegant Series Grey Polystyrene Enclosure, IP30 40 mm, 125 mm, 67 mm
- RS Stock No.:
- 186-6823
- Mfr. Part No.:
- 32124012 EG 1240 L
- Brand:
- Bopla
Subtotal (1 unit)*
£18.75
(exc. VAT)
£22.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.75 |
*price indicative
- RS Stock No.:
- 186-6823
- Mfr. Part No.:
- 32124012 EG 1240 L
- Brand:
- Bopla
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bopla | |
| Product Type | Enclosure | |
| Body Material | Polystyrene | |
| External Height | 40mm | |
| External Length | 125mm | |
| External Width | 67mm | |
| IP Rating | IP30 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Hazardous Area Certification | No | |
| Series | Elegant | |
| Number of Knockouts | 3 | |
| Standards/Approvals | RoHS Compliant | |
| Weight | 97g | |
| Select all | ||
|---|---|---|
Brand Bopla | ||
Product Type Enclosure | ||
Body Material Polystyrene | ||
External Height 40mm | ||
External Length 125mm | ||
External Width 67mm | ||
IP Rating IP30 | ||
Colour Grey | ||
Lid Colour Grey | ||
Hazardous Area Certification No | ||
Series Elegant | ||
Number of Knockouts 3 | ||
Standards/Approvals RoHS Compliant | ||
Weight 97g | ||
Desktop and wall housing
A series of elegant table and wall housings made of impact-resistant polystyrene. They are used for the installation of small appliances, and many other components. The housings are made up of two half shells; the upper part is light grey (similar to RAL 7035) and the lower part is agate grey (similar to RAL 7038). The screw connection is made from below with 4 screws. There are mounting bosses for self-tapping screws in the upper and lower parts for board mounting. There are also insertion grooves for perpendicular boards. At the base 112 x 200 the cam assembly is specially designed for the 100 x 160mm European card with plug connectors. All housings are available in vented and non-vented versions.
