Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09 50 mm, 50 mm, 45 mm
- RS Stock No.:
- 506-902
- Mfr. Part No.:
- 01050503
- Brand:
- Rose
Subtotal (1 unit)*
£12.44
(exc. VAT)
£14.93
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
- Plus 73 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.44 |
*price indicative
- RS Stock No.:
- 506-902
- Mfr. Part No.:
- 01050503
- Brand:
- Rose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rose | |
| Body Material | Die Cast Aluminium | |
| Product Type | Enclosure | |
| External Height | 50mm | |
| External Length | 50mm | |
| External Width | 45mm | |
| IP Rating | IP66 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Flanged | No | |
| Hazardous Area Certification | Maritime, UL | |
| Shielding | Unshielded | |
| Series | Aluminium Standard | |
| Weight | 70g | |
| Standards/Approvals | RoHS Compliant | |
| Transparent Door | No | |
| IK Rating | IK09 | |
| Gasket Material | Polyurethane | |
| Select all | ||
|---|---|---|
Brand Rose | ||
Body Material Die Cast Aluminium | ||
Product Type Enclosure | ||
External Height 50mm | ||
External Length 50mm | ||
External Width 45mm | ||
IP Rating IP66 | ||
Lid Colour Grey | ||
Colour Grey | ||
Flanged No | ||
Hazardous Area Certification Maritime, UL | ||
Shielding Unshielded | ||
Series Aluminium Standard | ||
Weight 70g | ||
Standards/Approvals RoHS Compliant | ||
Transparent Door No | ||
IK Rating IK09 | ||
Gasket Material Polyurethane | ||
- COO (Country of Origin):
- IN

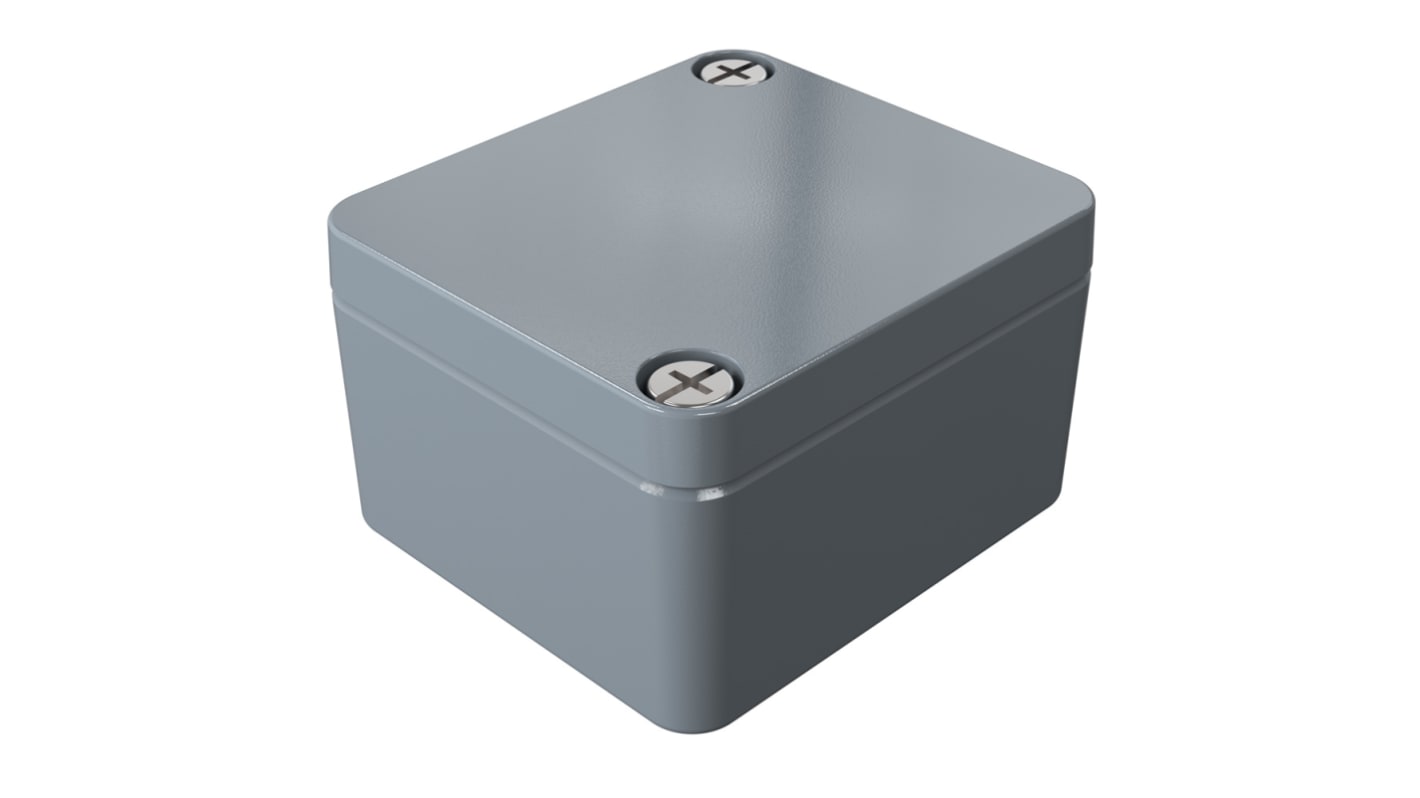

ROSE Grey Die-Cast Aluminium Enclosure, 50mm Width, 45mm Height - Aluminium Standard Series - 01050503
Use this ROSE enclosure to contain and protect electrical components in demanding environments. As it weighs just 0.107kg, it won't place too much strain on your equipment. You can install the enclosure on a DIN rail or mounting plate, making it a versatile choice. The unit comes with earthing screws as well as stainless steel captive screws for securing the lid in place, helping to prevent unauthorised access and tampering. Its IP66 (ingress protection) rating means it's dust-tight and protected against high-pressure water jets, so you can use it in indoor and outdoor applications.
Features & Benefits
• Conforms to UL 508 safety standards for industrial control equipment
• Polyurethane (PU) seal helps to keep contaminants out
• Wide operating temperature range of -40°C to +90°C for use in hot and cold environments
• Compact dimensions of 45 (height) x 50 (width) x 30mm (depth) for use in tight spaces
Applications
• Food and beverage production
• Chemical industry
• Mechanical engineering and automation technology
• Telecommunications
What is this enclosure made of?
This enclosure is made of die-cast aluminium, which offers good resistance to corrosion and impact for use in harsh environments. It also has good electrical properties for use with electronic devices.
