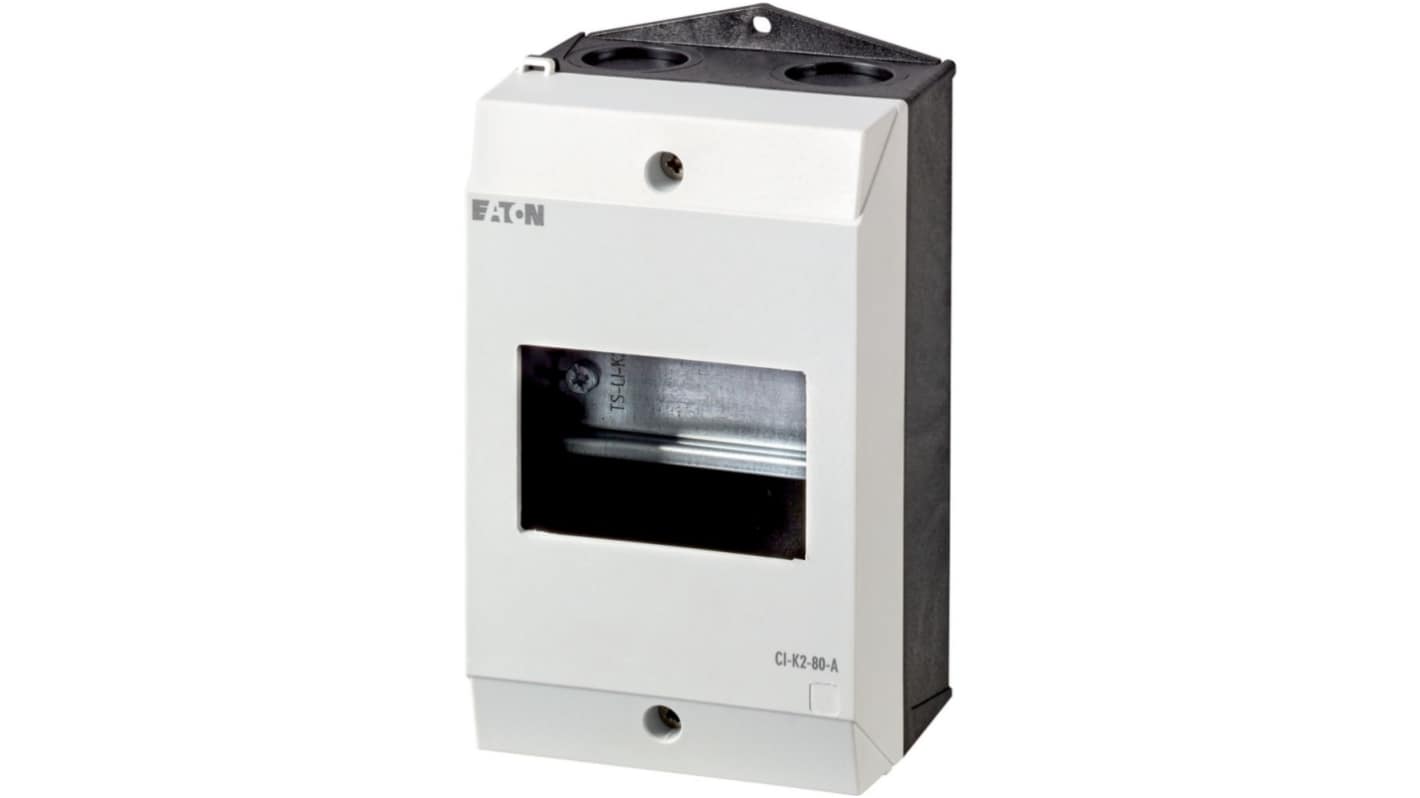

Eaton Eaton Moeller Series Light Grey, Black Plastic General Purpose Enclosure, IP65, IK06 100 mm, 181 mm, 100 mm
- RS Stock No.:
- 252-921
- Mfr. Part No.:
- 211107 CI-K2-80-A
- Brand:
- Eaton
Subtotal (1 unit)*
£33.55
(exc. VAT)
£40.26
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £33.55 |
*price indicative
- RS Stock No.:
- 252-921
- Mfr. Part No.:
- 211107 CI-K2-80-A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | General Purpose Enclosure | |
| Body Material | Plastic | |
| External Height | 100mm | |
| External Length | 181mm | |
| External Width | 100mm | |
| IP Rating | IP65 | |
| Lid Colour | Light Grey | |
| Colour | Light Grey, Black | |
| Hazardous Area Certification | No | |
| Series | Eaton Moeller | |
| Weight | 0.32kg | |
| Standards/Approvals | DIN EN 62208, IEC/EN 60529, UL94: HB, UL94: VO/1.5 mm thickness, EN/IEC 60529 | |
| IK Rating | IK06 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type General Purpose Enclosure | ||
Body Material Plastic | ||
External Height 100mm | ||
External Length 181mm | ||
External Width 100mm | ||
IP Rating IP65 | ||
Lid Colour Light Grey | ||
Colour Light Grey, Black | ||
Hazardous Area Certification No | ||
Series Eaton Moeller | ||
Weight 0.32kg | ||
Standards/Approvals DIN EN 62208, IEC/EN 60529, UL94: HB, UL94: VO/1.5 mm thickness, EN/IEC 60529 | ||
IK Rating IK06 | ||
The Eaton CI-K insulated enclosure exemplifies robust engineering tailored for both functional and aesthetic excellence. Designed by Eaton, this enclosure stands out with its spacious internal dimensions, making it an ideal solution for housing various electrical components safely. The combination of a light grey finish and the possibility of a black variant ensures that the enclosure complements any environment while guaranteeing reliable protection against environmental factors. Built to stringent international standards, the enclosure demonstrates outstanding thermal stability, withstanding temperatures ranging from -25°C to 70°C. Its resilience against chemical impacts and UV radiation is a testament to its suitability for challenging installations, making it a preferred choice for panel builders and system integrators alike.
Engineered for superior thermal stability across a wide temperature range
Resistant to chemicals, ensuring longevity in diverse environments
Designed with user-friendly cable entry options for efficient installation
Light and black colour variants for aesthetic adaptability
IP20 rated for effective protection against foreign objects
Impact resistance rated IK06, enhancing durability
Flammability characteristics compliant with stringent safety standards
Manufactured from environmentally friendly materials, reinforcing sustainability
