Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09 330 mm, 330 mm, 230 mm
- RS Stock No.:
- 222-749
- Mfr. Part No.:
- 01233318
- Brand:
- Rose
Subtotal (1 unit)*
£265.84
(exc. VAT)
£319.01
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 04 May 2026
- Plus 12 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £265.84 |
*price indicative
- RS Stock No.:
- 222-749
- Mfr. Part No.:
- 01233318
- Brand:
- Rose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rose | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 330mm | |
| External Width | 230mm | |
| External Length | 330mm | |
| IP Rating | IP66 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Flanged | No | |
| Shielding | Unshielded | |
| Hazardous Area Certification | UL, Maritime | |
| Series | Aluminium Standard | |
| Standards/Approvals | RoHS Compliant | |
| Weight | 5200g | |
| Transparent Door | No | |
| IK Rating | IK09 | |
| Gasket Material | Polyurethane | |
| Select all | ||
|---|---|---|
Brand Rose | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 330mm | ||
External Width 230mm | ||
External Length 330mm | ||
IP Rating IP66 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged No | ||
Shielding Unshielded | ||
Hazardous Area Certification UL, Maritime | ||
Series Aluminium Standard | ||
Standards/Approvals RoHS Compliant | ||
Weight 5200g | ||
Transparent Door No | ||
IK Rating IK09 | ||
Gasket Material Polyurethane | ||

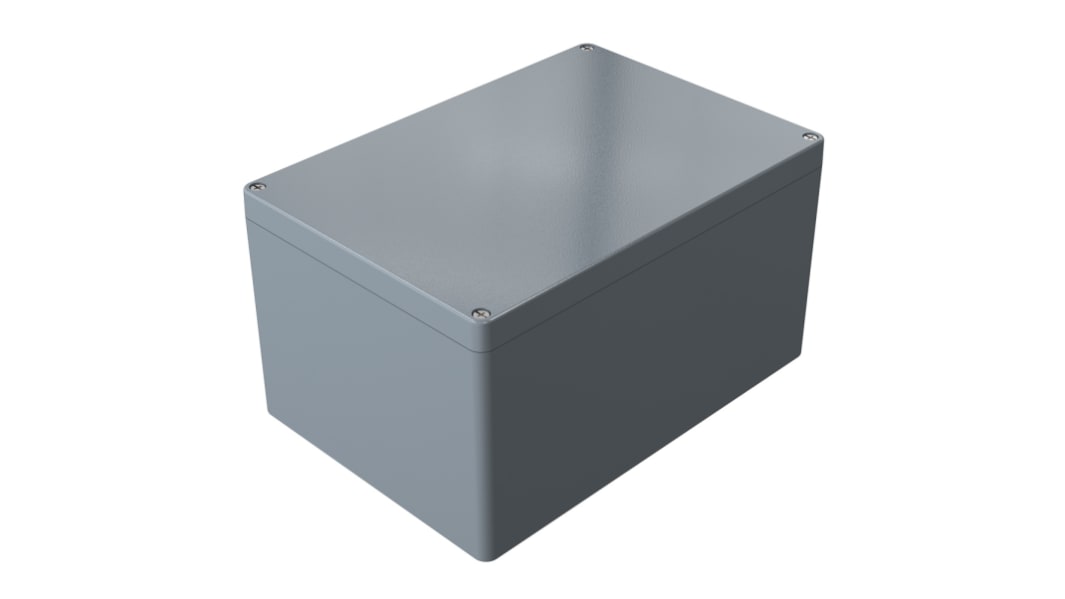

ROSE Grey Die-Cast Aluminium Enclosure, 330mm Length, 180mm Height - Aluminium Standard Series - 01233318
Protect your sensitive electronic devices from accidental damage and weathering with this hard-wearing metal enclosure from ROSE. It safeguards components such as selector switches and relays thanks to a robust aluminium construction that ensures effective electrical conductivity. An IP66 (ingress protection) rating means the housing is dust-tight and protected against high-pressure water jets. This general-purpose enclosure is resistant to corrosion, making it a good choice for use in harsh indoor or outdoor environments.
Features & Benefits
• Withstands up to 7 joules of force for use in applications where impacts are likely
• Wide operating temperature range of -40°C to +100°C for use in demanding environments
• Compatible with DIN rail or mounting plate assembly for versatile installation
• Meets DIN EN 1706 dimensional, mechanical and geometrical tolerances for aluminium casting alloys
Applications
• Cable and wire management
• Telecommunications industry
• Electronic modules
• Industrial terminals
Does this enclosure include a lid?
Yes, this enclosure is supplied with a lid and fixing screws, meaning you can firmly close the box for added security.
How heavy is this enclosure?
This enclosure weighs just 5.2kg, so it won't place much strain on your equipment or wall.
