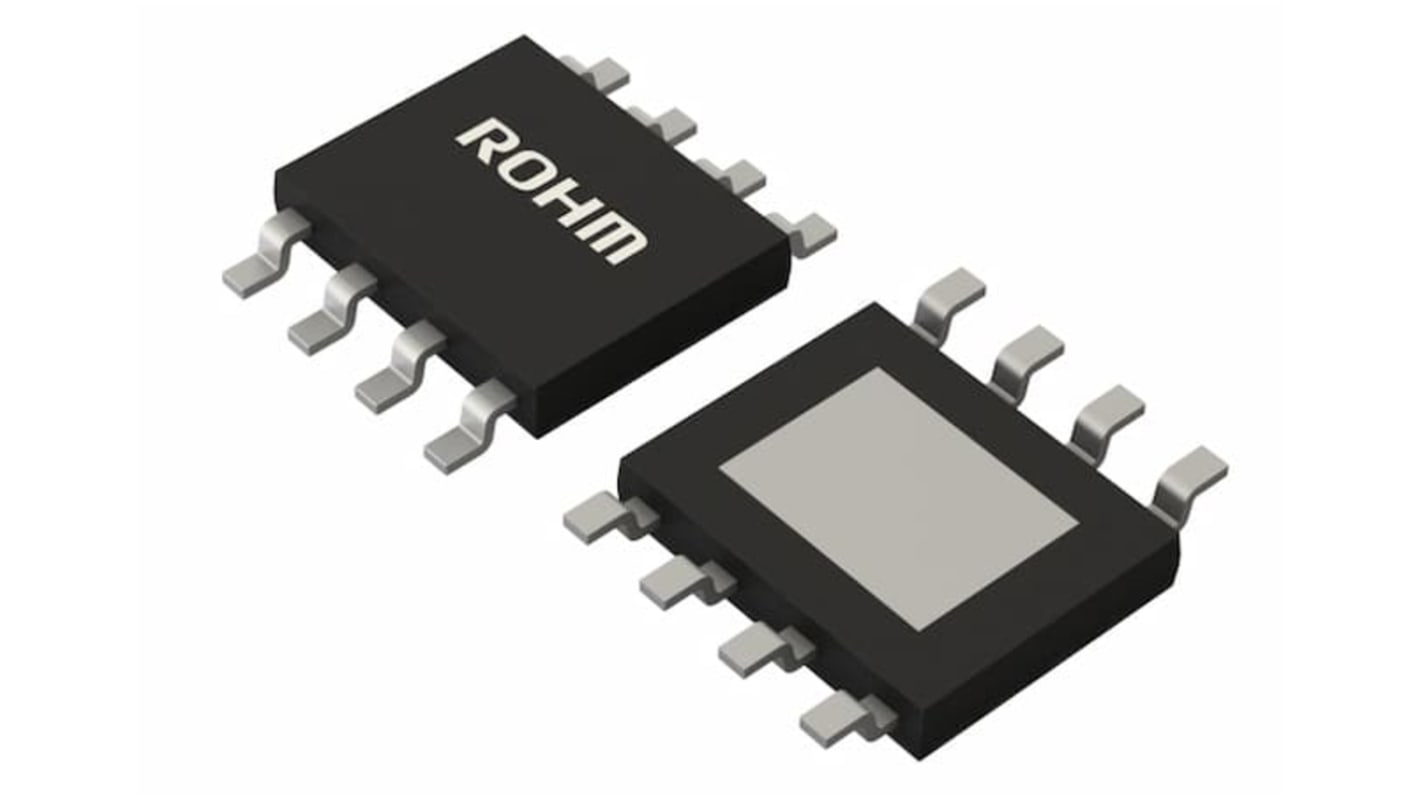

ROHM 2, 4.5 A 8-Pin 100 V, HTSOP-J8
- RS Stock No.:
- 267-2270
- Mfr. Part No.:
- BD2320UEFJ-LAE2
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 2500 units)*
£2,162.50
(exc. VAT)
£2,595.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | £0.865 | £2,162.50 |
| 5000 + | £0.834 | £2,085.00 |
*price indicative
- RS Stock No.:
- 267-2270
- Mfr. Part No.:
- BD2320UEFJ-LAE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Gate Driver Module | |
| Output Current | 4.5A | |
| Pin Count | 8 | |
| Package Type | HTSOP-J8 | |
| Fall Time | 6ns | |
| Rise Time | 6ns | |
| Minimum Supply Voltage | 100V | |
| Number of Drivers | 2 | |
| Maximum Supply Voltage | 100V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1mm | |
| Series | BD2320UEFJ-LA | |
| Standards/Approvals | RoHS | |
| Length | 4.9mm | |
| Mount Type | Through Hole | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Gate Driver Module | ||
Output Current 4.5A | ||
Pin Count 8 | ||
Package Type HTSOP-J8 | ||
Fall Time 6ns | ||
Rise Time 6ns | ||
Minimum Supply Voltage 100V | ||
Number of Drivers 2 | ||
Maximum Supply Voltage 100V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1mm | ||
Series BD2320UEFJ-LA | ||
Standards/Approvals RoHS | ||
Length 4.9mm | ||
Mount Type Through Hole | ||
Automotive Standard No | ||
The ROHM BD2320UEFJ-LA is the 100V maximum voltage high-side and low-side gate driver which can drive external Nch-FET using the bootstrap method. The driver includes a 100V bootstrap diode and independent inputs control for high-side and low-side. 3.3V and 5.0V are available for interface voltage. Under voltage lockout circuits are built in for high-side and low-side.
Long time support product for industrial applications
Under voltage lockout for high-side and low-side driver
3.3 V and 5.0 V interface voltage
Output in-phase with input signal
