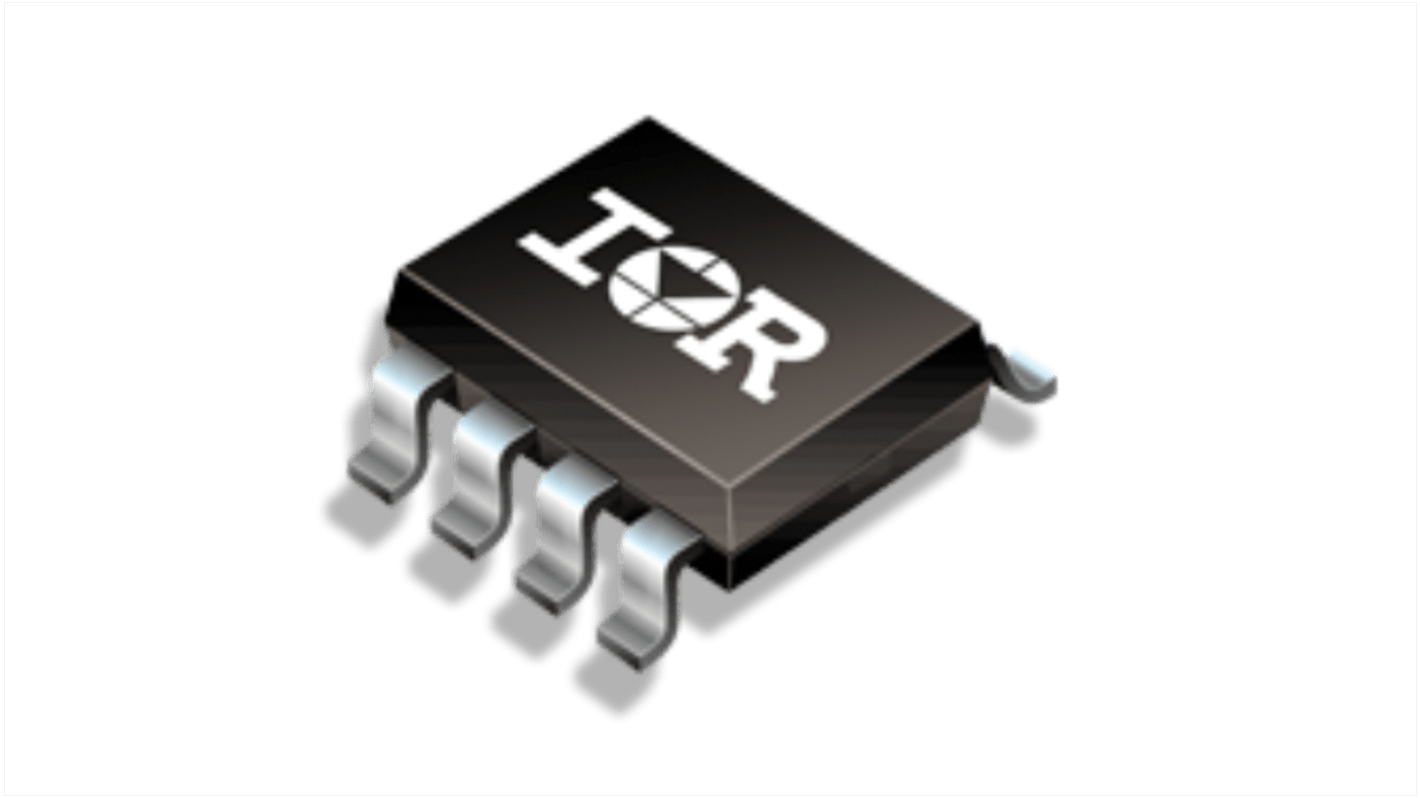

Infineon IR4426SPBF MOSFET Gate Driver 2, 1.5 A 8-Pin 20 V, SOIC
- RS Stock No.:
- 262-6718
- Mfr. Part No.:
- IR4426SPBF
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£10.95
(exc. VAT)
£13.15
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 3,225 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.19 | £10.95 |
| 25 - 45 | £1.66 | £8.30 |
| 50 - 120 | £1.616 | £8.08 |
| 125 - 245 | £1.574 | £7.87 |
| 250 + | £1.536 | £7.68 |
*price indicative
- RS Stock No.:
- 262-6718
- Mfr. Part No.:
- IR4426SPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Output Current | 1.5A | |
| Pin Count | 8 | |
| Package Type | SOIC | |
| Fall Time | 10ns | |
| Driver Type | MOSFET | |
| Minimum Supply Voltage | 6V | |
| Maximum Supply Voltage | 20V | |
| Number of Drivers | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Height | 1.75mm | |
| Length | 4.98mm | |
| Series | IR4426 | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Output Current 1.5A | ||
Pin Count 8 | ||
Package Type SOIC | ||
Fall Time 10ns | ||
Driver Type MOSFET | ||
Minimum Supply Voltage 6V | ||
Maximum Supply Voltage 20V | ||
Number of Drivers 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Height 1.75mm | ||
Length 4.98mm | ||
Series IR4426 | ||
Mount Type Surface | ||
Automotive Standard No | ||
The Infineon low voltage, high speed power MOSFET and IGBT driver has proprietary latch immune CMOS technologies, which enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output driver features a high pulse current buffer stage designed for minimum driver cross conduction.
Matched propagation delay for both channels
Outputs out of phase with inputs
CMOS Schmitt triggered inputs
