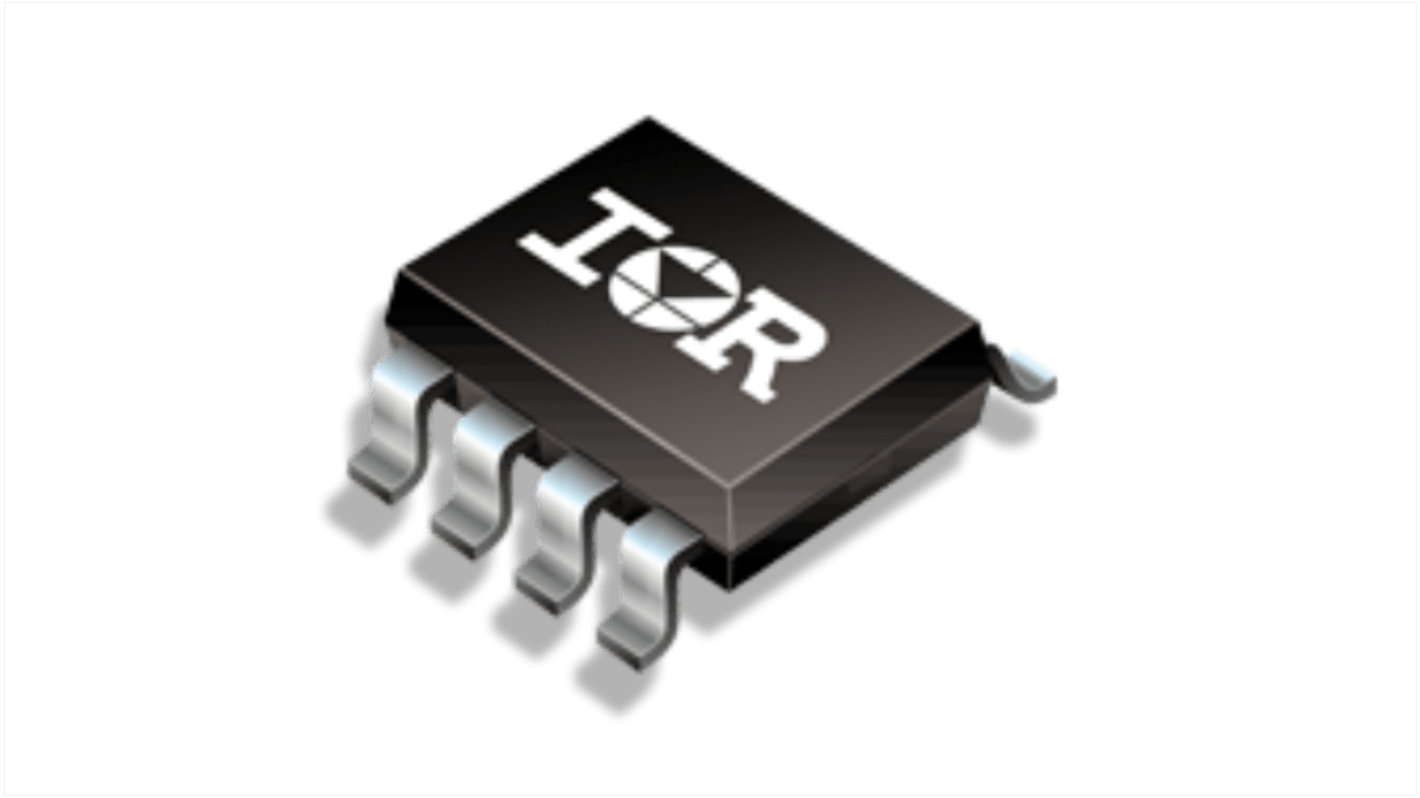

Infineon MOSFET Gate Driver 2, 1.5 A 8-Pin 20 V, SOIC

View all Gate Drivers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
262-6717
Mfr. Part No.:
IR4426SPBF
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

MOSFET

Output Current

1.5A

Pin Count

8

Fall Time

10ns

Package Type

SOIC

Driver Type

MOSFET

Minimum Supply Voltage

6V

Maximum Supply Voltage

20V

Number of Drivers

2

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Series

IR4426

Length

4.98mm

Width

3.99 mm

Standards/Approvals

RoHS

Height

1.75mm

Mount Type

Surface

Automotive Standard

No

The Infineon low voltage, high speed power MOSFET and IGBT driver has proprietary latch immune CMOS technologies, which enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output driver features a high pulse current buffer stage designed for minimum driver cross conduction.

Matched propagation delay for both channels

Outputs out of phase with inputs

CMOS Schmitt triggered inputs
