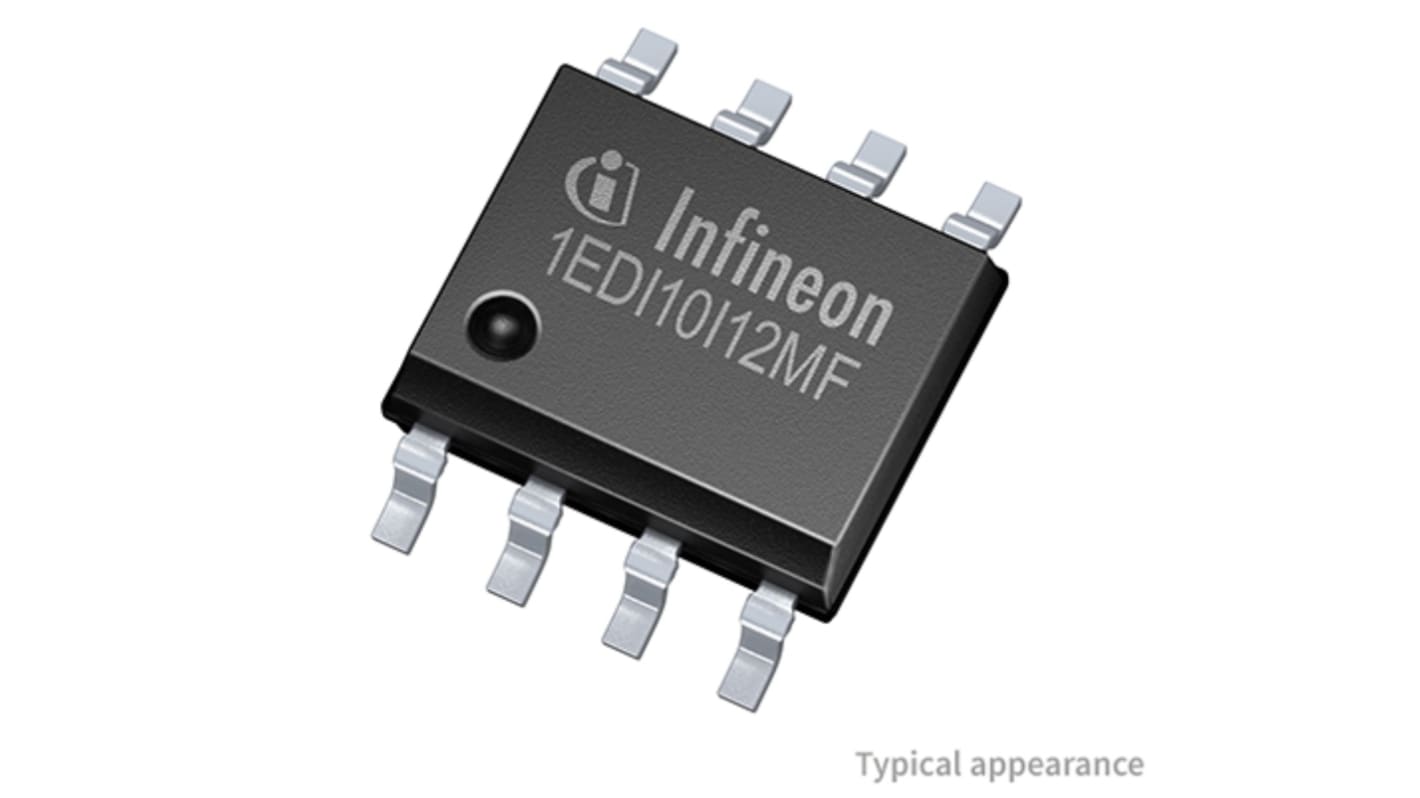

Infineon 1EDI10I12MFXUMA1, IGBT, 6 A, 15V 8-Pin, DSO-8

View all Gate Drivers
Bulk discount available

Subtotal (1 pack of 2 units)*

£1.46

(exc. VAT)

£1.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,496 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 18£0.73£1.46
20 - 48£0.695£1.39
50 - 98£0.665£1.33
100 - 198£0.635£1.27
200 +£0.585£1.17

*price indicative

Packaging Options:
RS Stock No.:
244-0869
Mfr. Part No.:
1EDI10I12MFXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Logic Type

CMOS

Output Current

6 A

Supply Voltage

15V

Pin Count

8

Fall Time

19ns

Package Type

DSO-8

Driver Type

IGBT

The Infineon Single Channel IGBT Gate Driver IC is galvanically isolated single channel IGBT driver in a PGDSO-8-51 package that provide minimum peak output currents up to 3 A and an integrated active Miller Clamp circuit with the same current rating to protect against parasitic turn on. The input logic pins operate on a wide input voltage range from 3 V to 15 V using CMOS threshold levels to support even 3.3 V microcontroller. Data transfer across the isolation barrier is realized by the Coreless Transformer Technology, Every driver family member comes with logic input and driver output under voltage lockout (UVLO) and active shutdown.

Single channel isolated IGBT Driver
For 600 V/1200 V IGBTs
Up to 6 A typical peak current at rail-to-rail outputs
Active Miller Clamp
