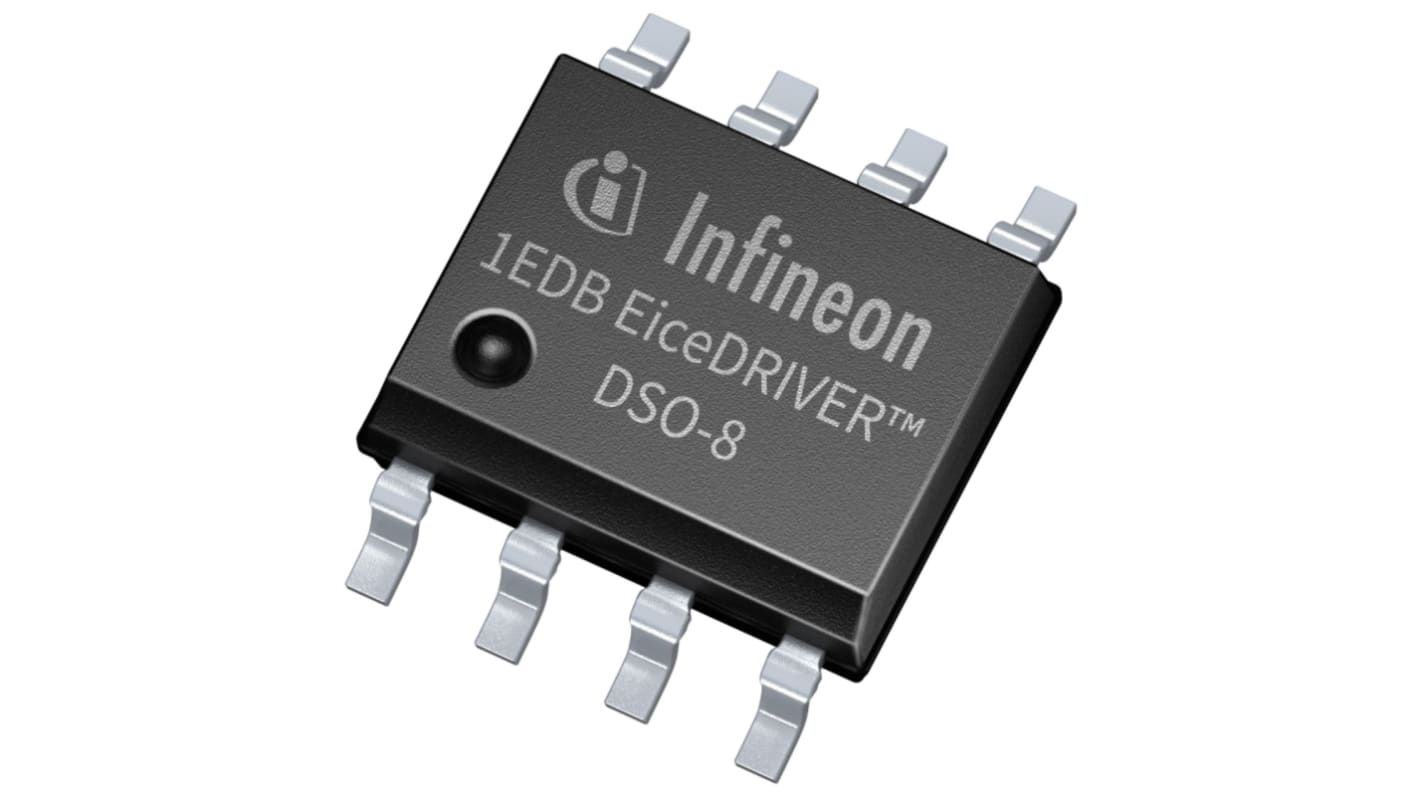

Infineon 1EDB7275FXUMA1 MOSFET Gate Driver, 5.6 A 8-Pin 5 V, PG-DSO-8
- RS Stock No.:
- 234-8938
- Mfr. Part No.:
- 1EDB7275FXUMA1
- Brand:
- Infineon
Subtotal (1 reel of 2500 units)*
£1,340.00
(exc. VAT)
£1,607.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.536 | £1,340.00 |
*price indicative
- RS Stock No.:
- 234-8938
- Mfr. Part No.:
- 1EDB7275FXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Output Current | 5.6A | |
| Pin Count | 8 | |
| Package Type | PG-DSO-8 | |
| Fall Time | 9ns | |
| Driver Type | MOSFET | |
| Rise Time | 16ns | |
| Minimum Supply Voltage | 5V | |
| Maximum Supply Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | 1ED | |
| Standards/Approvals | RoHS | |
| Mount Type | Surface | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Output Current 5.6A | ||
Pin Count 8 | ||
Package Type PG-DSO-8 | ||
Fall Time 9ns | ||
Driver Type MOSFET | ||
Rise Time 16ns | ||
Minimum Supply Voltage 5V | ||
Maximum Supply Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series 1ED | ||
Standards/Approvals RoHS | ||
Mount Type Surface | ||
Automotive Standard AEC-Q100 | ||
The Infineon single channel isolated gate driver IC in 150 mil DSO package available in an 8 pin with 4mm input to output creepage distance. It provides isolation by means of on-chip coreless transformer (CT) technology.
260°C maximum soldering temperature
150°C Junction temperature
5Apk reverse current Peak
