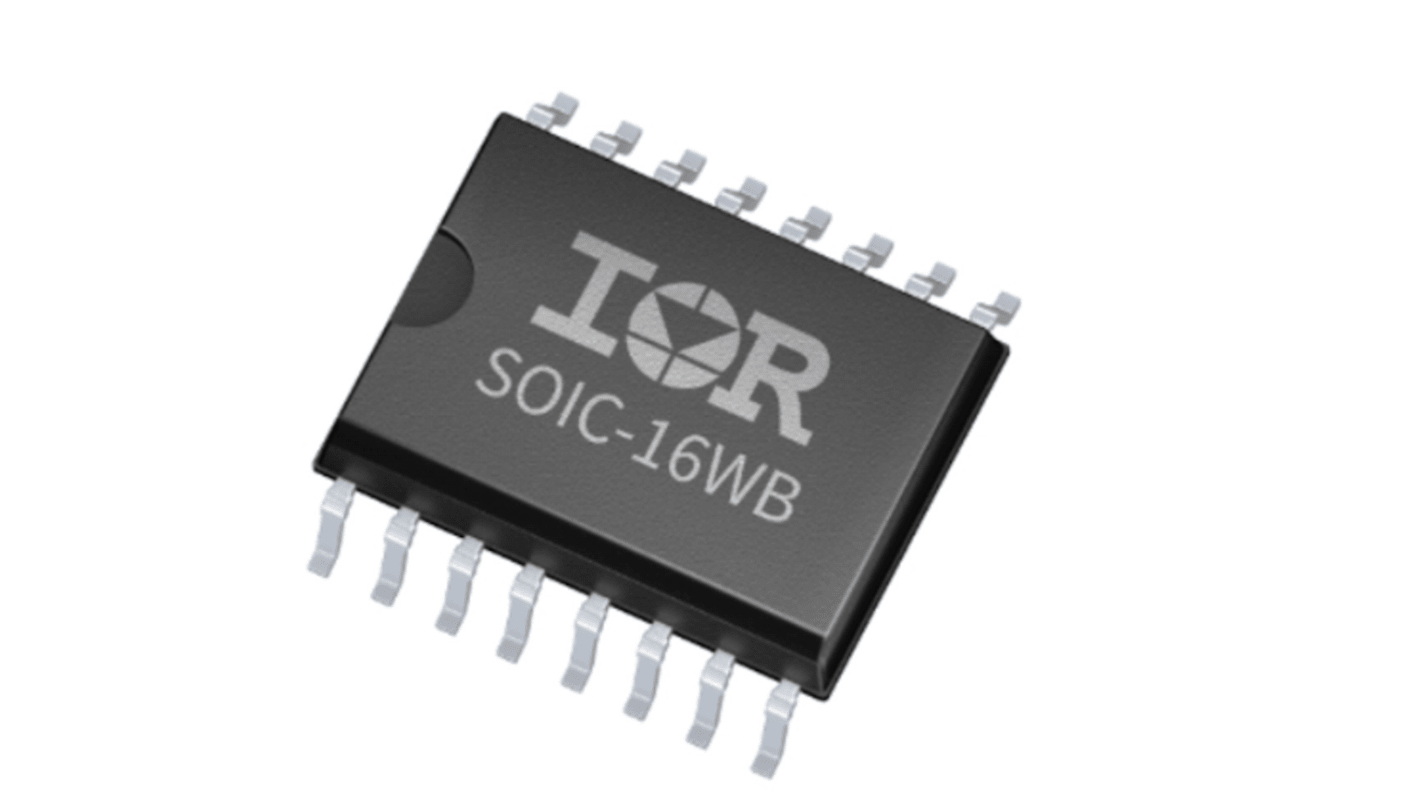

Infineon IR2213STRPBF MOSFET Gate Driver, 2 A, 20V 16-Pin, SOIC
- RS Stock No.:
- 226-6159
- Mfr. Part No.:
- IR2213STRPBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£9.94
(exc. VAT)
£11.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,976 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £4.97 | £9.94 |
10 - 18 | £4.475 | £8.95 |
20 - 48 | £4.225 | £8.45 |
50 - 98 | £3.925 | £7.85 |
100 + | £3.63 | £7.26 |
*price indicative
- RS Stock No.:
- 226-6159
- Mfr. Part No.:
- IR2213STRPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Output Current | 2 A | |
Supply Voltage | 20V | |
Pin Count | 16 | |
Fall Time | 17ns | |
Package Type | SOIC | |
Driver Type | MOSFET | |
Select all | ||
---|---|---|
Brand Infineon | ||
Output Current 2 A | ||
Supply Voltage 20V | ||
Pin Count 16 | ||
Fall Time 17ns | ||
Package Type SOIC | ||
Driver Type MOSFET | ||
The Infineon IR2213(S) is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3 V logic.
Floating channel designed for bootstrap operation
Fully operational to +1200 V
Tolerant to negative transient voltage dV/dt immune
Gate drive supply range from 12 V to 20 V
Fully operational to +1200 V
Tolerant to negative transient voltage dV/dt immune
Gate drive supply range from 12 V to 20 V
