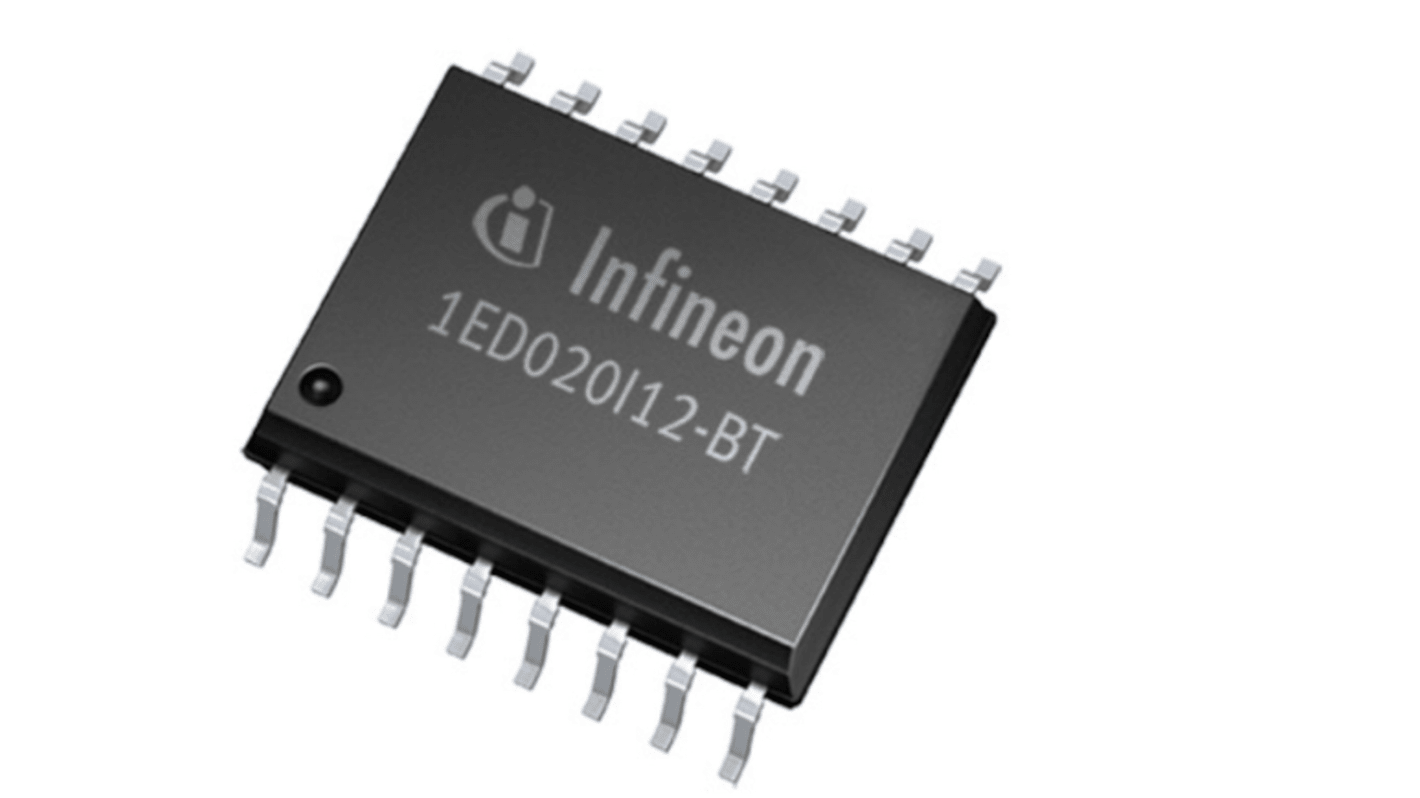

Infineon 1ED020I12BTXUMA1 MOSFET Gate Driver, 2 A, 5.5V 16-Pin, PG-DSO

View all Gate Drivers

Subtotal (1 pack of 5 units)*

£20.40

(exc. VAT)

£24.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£4.08£20.40

*price indicative

Packaging Options:
RS Stock No.:
226-6009
Mfr. Part No.:
1ED020I12BTXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Logic Type

CMOS

Output Current

2 A

Supply Voltage

5.5V

Pin Count

16

Package Type

PG-DSO

Fall Time

20ns

Driver Type

MOSFET

The Infineon 1ED020I12-BT is a galvanic isolated single channel driver in a PG-DSO-16-15 300 mil wide body package that provide an output current capability of typically 2 A. All logic pins are 5 V CMOS compatible and could be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated coreless transformer technology. It provide several protection features like IGBT two-level turn-off, desaturation protection, active Miller clamping and active shut down.

Suitable for operation at high ambient temperature
2 A typical rail-to-rail output current
28 V absolute maximum output supply voltage
