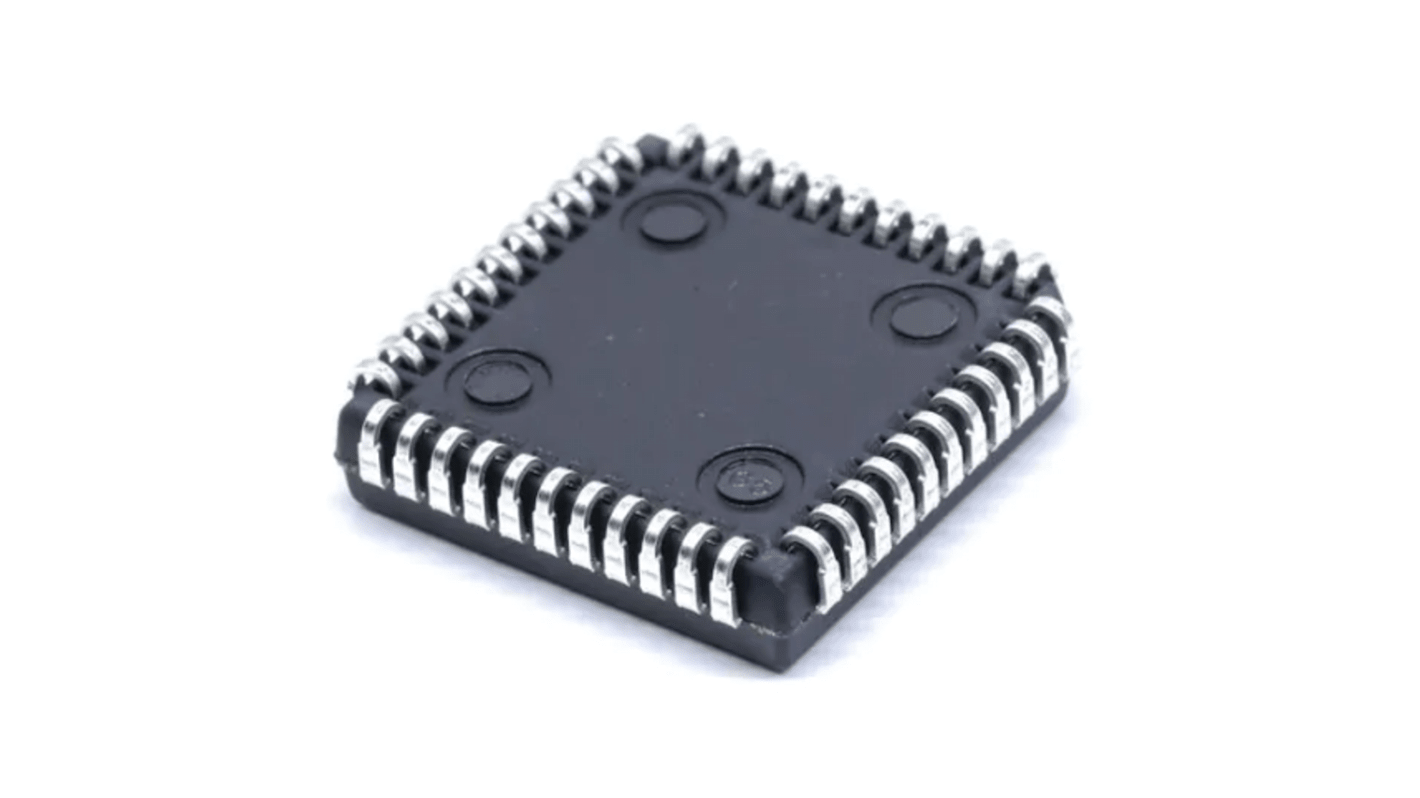

Infineon IR2136JTRPBF, 350 mA, 20V 44-Pin, PLCC
- RS Stock No.:
- 226-6152
- Mfr. Part No.:
- IR2136JTRPBF
- Brand:
- Infineon
Available to back order for despatch 06/08/2025
Added
Price Each (On a Reel of 500)
£3.193
(exc. VAT)
£3.832
(inc. VAT)
| Units | Per unit | Per Reel* |
| 500 + | £3.193 | £1,596.50 |
| *price indicative | ||
- RS Stock No.:
- 226-6152
- Mfr. Part No.:
- IR2136JTRPBF
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The Infineon IR2136J are high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channel for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3 V logic.
Floating channel designed for bootstrap operation
Fully operational to +600 V
Tolerant to negative transient voltage, dV/dt immune
Over-current shutdown turns off all six driver
Independent 3 half-bridge driver
Matched propagation delay for all channel
Cross-conduction prevention logic
Fully operational to +600 V
Tolerant to negative transient voltage, dV/dt immune
Over-current shutdown turns off all six driver
Independent 3 half-bridge driver
Matched propagation delay for all channel
Cross-conduction prevention logic
Specifications
Attribute | Value |
|---|---|
| Output Current | 350 mA |
| Supply Voltage | 20V |
| Pin Count | 44 |
| Fall Time | 75ns |
| Package Type | PLCC |
