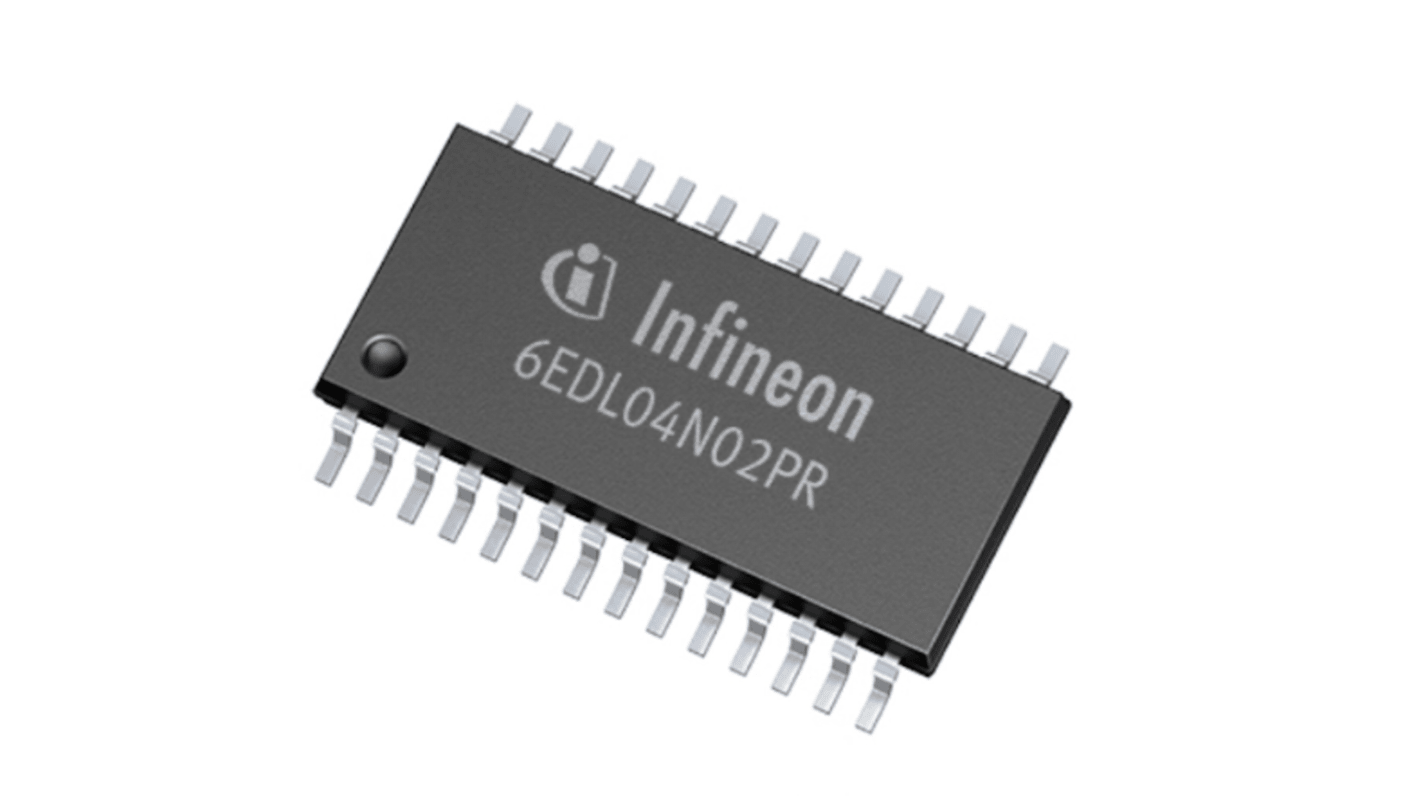

Infineon 6EDL04N02PRXUMA1 MOSFET Gate Driver, 165 mA, 17.5V 28-Pin, PG-DSO

View all Gate Drivers
Bulk discount available

Subtotal (1 pack of 5 units)*

£11.15

(exc. VAT)

£13.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,190 unit(s) ready to ship
  • Plus 999,997,805 unit(s) shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£2.23£11.15
25 - 45£1.894£9.47
50 - 120£1.762£8.81
125 - 245£1.65£8.25
250 +£1.516£7.58

*price indicative

Packaging Options:
Sponsored
Infineon MOSFET IPW60R170CFD7XKSA1
Infineon Logo
Unlock Peak Performance with Infineon Gate Drivers & MOSFETs – A Perfect Match
Looking to push your power design further? Pair your Infineon gate driver with Infineon MOSFETs for seamless compatibility, optimal switching efficiency, and reduced design complexity. Engineered to work together, this combination delivers robust thermal performance and reliable operation across demanding applications.
Shop Now
RS Stock No.:
226-6045
Mfr. Part No.:
6EDL04N02PRXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Output Current

165 mA

Supply Voltage

17.5V

Pin Count

28

Package Type

PG-DSO

Fall Time

45ns

Driver Type

MOSFET

The Infineon 6ED family is a full bridge driver to control power device like MOS-transistors or IGBTs in 3-phase system with a maximum blocking voltage of +600 V.It based on the used SOI-technology there is an excellent ruggedness on transient voltages. No parasitic Thyristor structure are present in the device. Hence, no parasitic latch-up may occur at all temperature and voltage conditions. It has signal interlocking of every phase to prevent cross conduction.

Maximum blocking voltage +600 V
Output source/sink current +0.165 A/-0.375 A
Integrated ultra-fast, low RDS(ON) bootstrap diode
Insensitivity of the bridge output to negative
