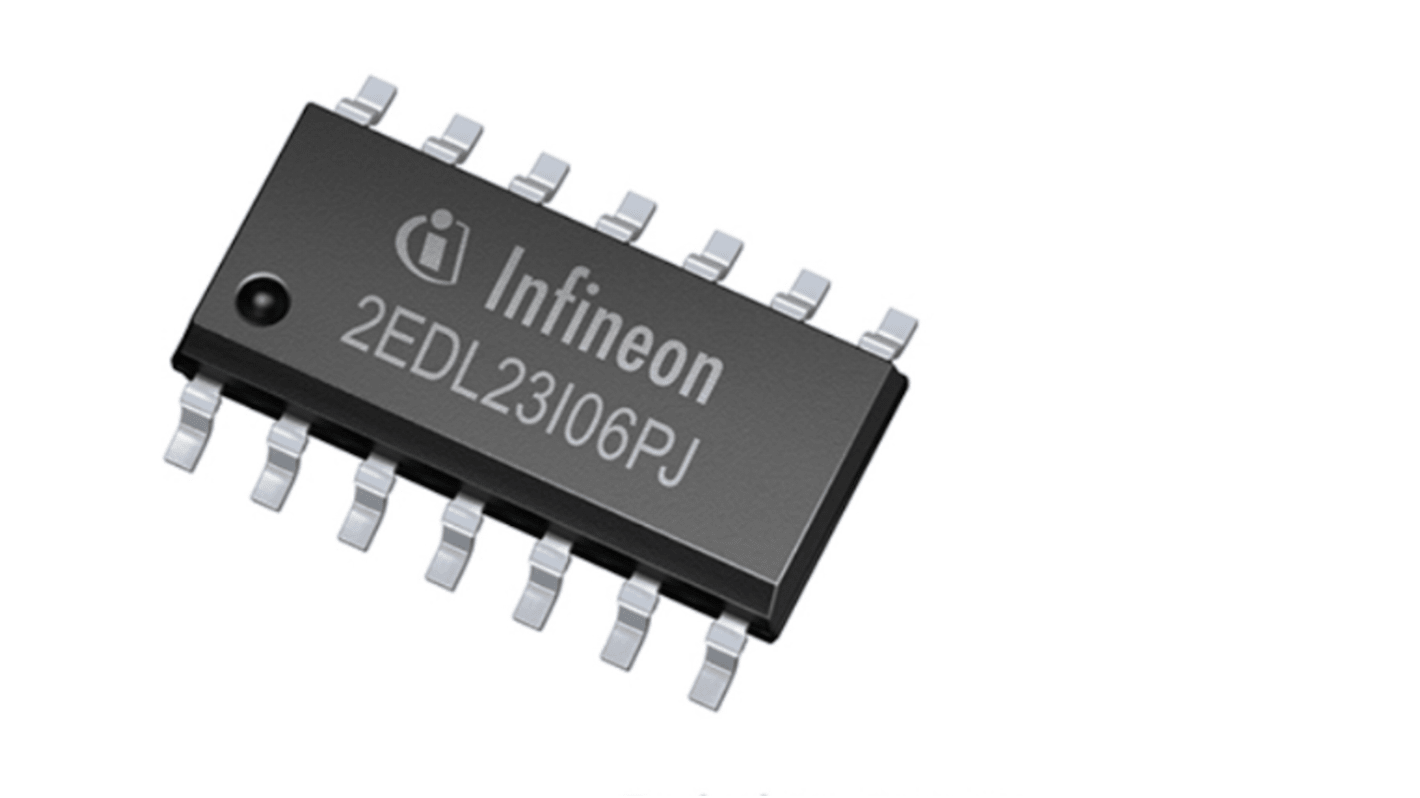

Infineon 2EDL23I06PJXUMA1 MOSFET Gate Driver, 1.8 A, 20V 14-Pin, PG-DSO

View all Gate Drivers

Subtotal (1 reel of 2500 units)*

£2,060.00

(exc. VAT)

£2,472.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.824£2,060.00

*price indicative

RS Stock No.:
226-6036
Mfr. Part No.:
2EDL23I06PJXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Output Current

1.8 A

Supply Voltage

20V

Pin Count

14

Package Type

PG-DSO

Fall Time

60ns

Driver Type

MOSFET

The Infineon 2EDL23 is a 600-V half-bridge gate driver family. It is thin-film-SOI technology provides excellent ruggedness and noise immunity. The Schmitt trigger logic inputs are compatible with standard CMOS or LSTTL logic down to 3.3 V. The output drives features a high pulse current buffer stage designed for minimum driver cross-conduction.

Fully operational to +600 V
Floating channel designed for bootstrap operation
Output source/sink current capability +0.36 A/-0.7 A
