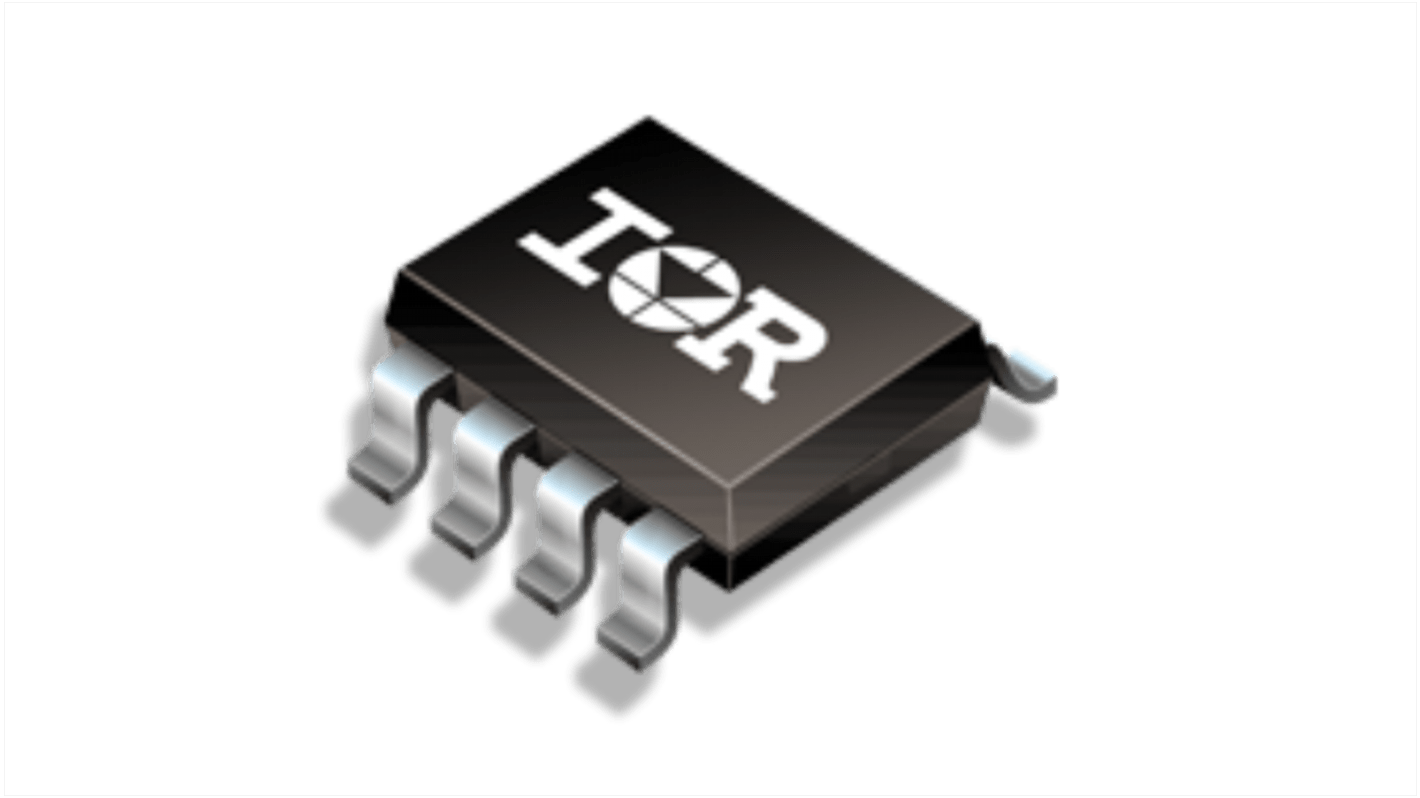

Infineon MOSFET Gate Driver 2, 4 A 8-Pin 20 V, SOIC

View all Gate Drivers

Subtotal (1 reel of 2500 units)*

£2,460.00

(exc. VAT)

£2,952.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.984£2,460.00

*price indicative

RS Stock No.:
222-4947
Mfr. Part No.:
IR11682STRPBF
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

Dual Smart Rectifier Driver IC

Output Current

4A

Pin Count

8

Fall Time

25ns

Package Type

SOIC

Driver Type

MOSFET

Number of Outputs

2

Rise Time

10ns

Minimum Supply Voltage

20V

Number of Drivers

2

Maximum Supply Voltage

20V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Series

IR11682S

Width

4 mm

Height

1.75mm

Standards/Approvals

RoHS

Length

5mm

Mount Type

Surface

Automotive Standard

No

The Infineon 200V Dual Secondary Side High Speed SR Controller in a 8-Lead SOIC Package.

Secondary-side high speed controller for synchronous rectification in resonant half bridge topologies

200V proprietary IC technology

Max 400KHz switching frequency

Anti-bounce logic and UVLO protection

4A peak turn off drive current
