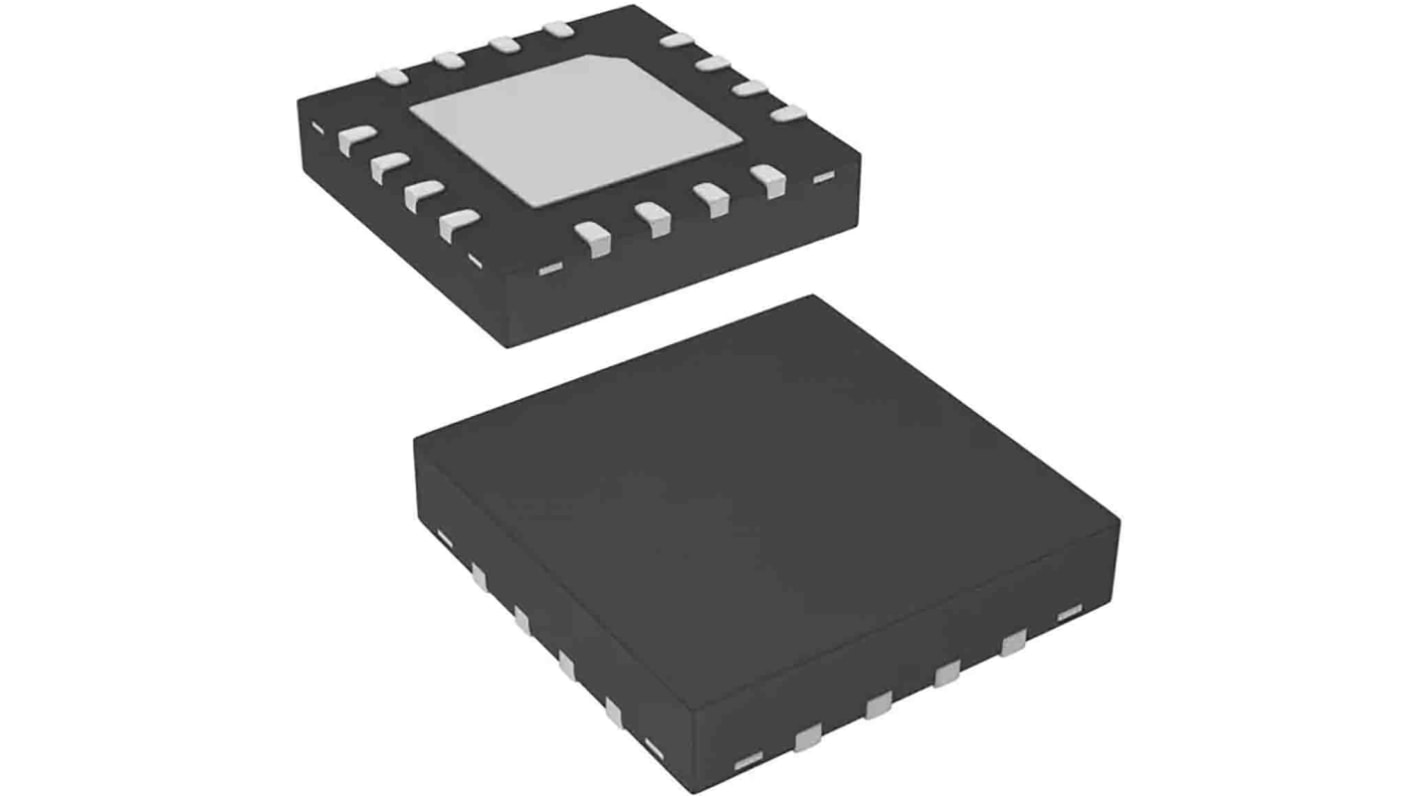

Renesas Electronics ISL55110IRZ MOSFET Gate Driver, 5.5V 16-Pin, QFN
- RS Stock No.:
- 196-9081
- Mfr. Part No.:
- ISL55110IRZ
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£11.61
(exc. VAT)
£13.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,895 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 5 | £2.322 | £11.61 |
10 - 20 | £1.876 | £9.38 |
25 - 45 | £1.836 | £9.18 |
50 - 95 | £1.806 | £9.03 |
100 + | £1.51 | £7.55 |
*price indicative
- RS Stock No.:
- 196-9081
- Mfr. Part No.:
- ISL55110IRZ
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Renesas Electronics | |
Supply Voltage | 5.5V | |
Pin Count | 16 | |
Package Type | QFN | |
Driver Type | MOSFET | |
Select all | ||
---|---|---|
Brand Renesas Electronics | ||
Supply Voltage 5.5V | ||
Pin Count 16 | ||
Package Type QFN | ||
Driver Type MOSFET | ||
The Renesas Electronics is dual, high speed MOSFET driver. Applications require accurate pulse generation and buffering. Target applications include ultrasound, CCD imaging, piezoelectric distance sensing and clock generation circuit. it has a wide output voltage range and low ON-resistance.
5V to 12V pulse amplitude
High current drive 3.5A
6ns minimum pulse width
1.5ns rise and fall times, 100pF load
Low skew
3.3V and 5V logic compatible
In-phase and anti-phase output
High current drive 3.5A
6ns minimum pulse width
1.5ns rise and fall times, 100pF load
Low skew
3.3V and 5V logic compatible
In-phase and anti-phase output
