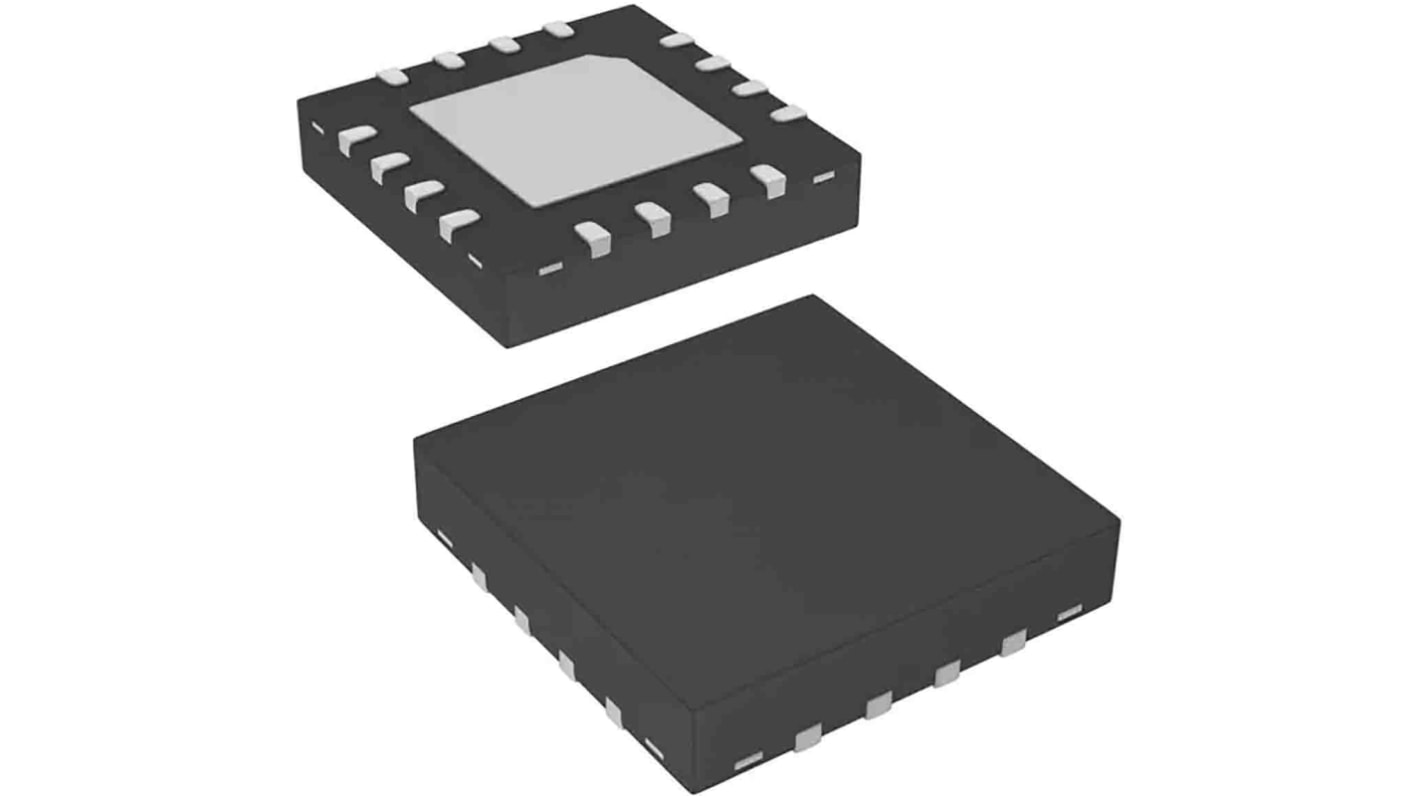

Renesas Electronics MOSFET Gate Driver 2, 3.5 A 16-Pin 5.5 V, QFN

View all Gate Drivers
Bulk discount available

Subtotal (1 tube of 75 units)*

£147.90

(exc. VAT)

£177.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,850 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
75 - 75£1.972£147.90
150 - 450£1.583£118.73
525 - 975£1.396£104.70
1050 - 2475£1.325£99.38
2550 +£1.292£96.90

*price indicative

RS Stock No.:
196-9080
Mfr. Part No.:
ISL55110IRZ
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

MOSFET

Output Current

3.5A

Pin Count

16

Fall Time

6.9ns

Package Type

QFN

Driver Type

MOSFET

Number of Outputs

2

Rise Time

6.2ns

Minimum Supply Voltage

5.5V

Number of Drivers

2

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Width

4 mm

Length

4mm

Series

ISL55110

Height

0.9mm

Mount Type

Surface

Automotive Standard

No

The Renesas Electronics is dual, high speed MOSFET driver. Applications require accurate pulse generation and buffering. Target applications include ultrasound, CCD imaging, piezoelectric distance sensing and clock generation circuit. it has a wide output voltage range and low ON-resistance.

5V to 12V pulse amplitude

High current drive 3.5A

6ns minimum pulse width

1.5ns rise and fall times, 100pF load

Low skew

3.3V and 5V logic compatible

In-phase and anti-phase output
