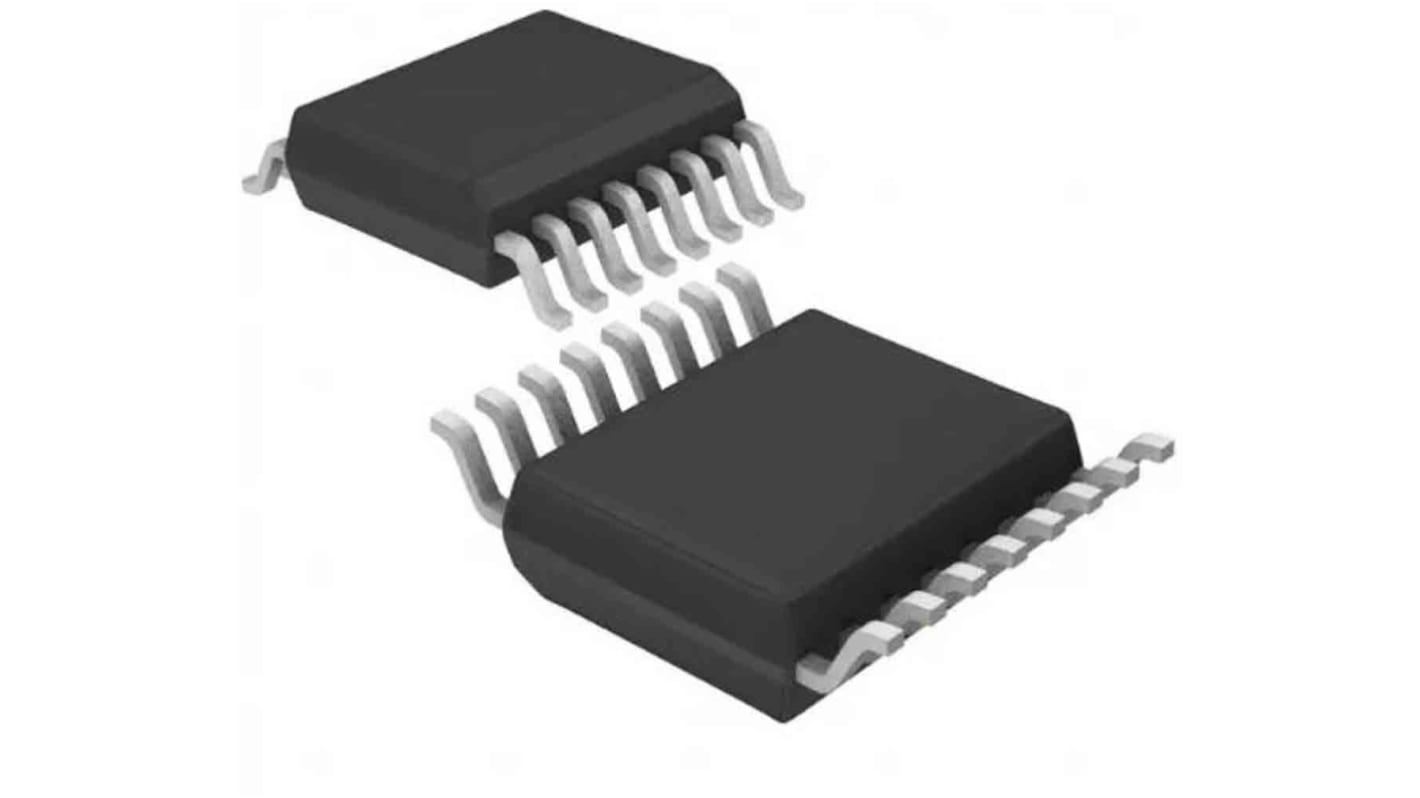

Renesas Electronics Gate Driver 4, 100 mA 16-Pin 18 V, SO-16

View all Gate Drivers
Bulk discount available

Subtotal (1 tube of 47 units)*

£170.892

(exc. VAT)

£205.061

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 47 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
47 - 94£3.636£170.89
141 - 235£3.156£148.33
282 - 470£2.985£140.30
517 - 987£2.676£125.77
1034 +£2.258£106.13

*price indicative

RS Stock No.:
196-9054
Mfr. Part No.:
EL7457CSZ
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

General Purpose Driver

Output Current

100mA

Pin Count

16

Package Type

SO-16

Fall Time

13ns

Number of Outputs

4

Driver Type

General Purpose

Rise Time

13.5ns

Minimum Supply Voltage

18V

Number of Drivers

4

Maximum Supply Voltage

18V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

0.19mm

Series

EL7457

Standards/Approvals

No

Height

0.07mm

Width

0.15 mm

Mount Type

Surface

Automotive Standard

No

The Renesas Electronics' EL7457 series is a high speed, non-inverting, quad CMOS driver. It is capable of running at clock rates up to 40MHz

and features 2A peak drive capability and a nominal on-resistance of just 3. The EL7457 is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applications. It is also well suited to ATE pin driving, level-shifting, and clock-driving applications.

Clocking speeds up to 40MHz

4 channels

Fast output enable function - 12ns
