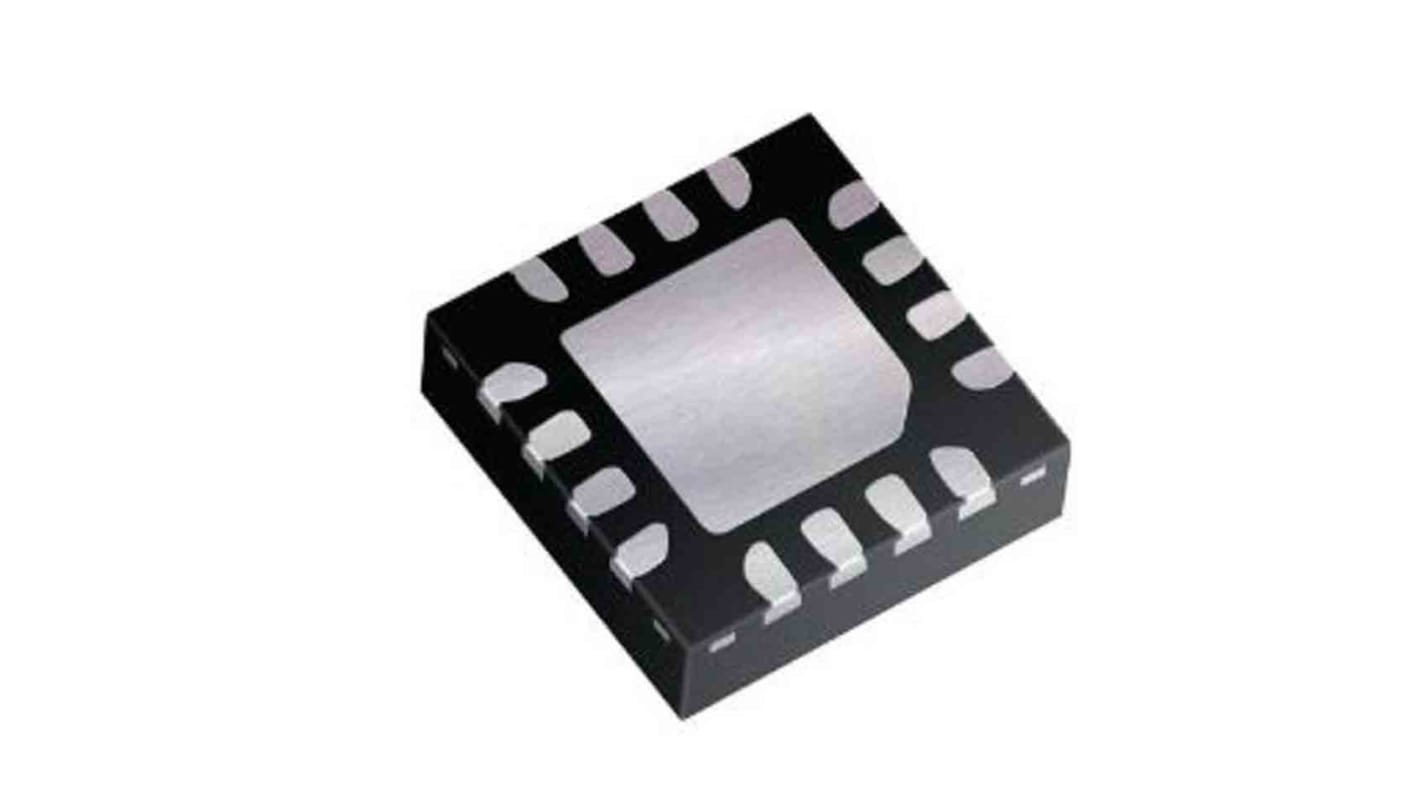

Renesas Electronics EL7457CLZ-T7, General Purpose, 100 mA, 18V 16-Pin, QFN
- RS Stock No.:
- 196-9053
- Mfr. Part No.:
- EL7457CLZ-T7
- Brand:
- Renesas Electronics
2000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£5.89
(exc. VAT)
£7.07
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 48 | £5.89 | £11.78 |
| 50 - 98 | £5.015 | £10.03 |
| 100 - 248 | £4.33 | £8.66 |
| 250 - 498 | £4.105 | £8.21 |
| 500 + | £3.695 | £7.39 |
| *price indicative | ||
- RS Stock No.:
- 196-9053
- Mfr. Part No.:
- EL7457CLZ-T7
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics' EL7457 series is a high speed, non-inverting, quad CMOS driver. It is capable of running at clock rates up to 40MHz
and features 2A peak drive capability and a nominal on-resistance of just 3. The EL7457 is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applications. It is also well suited to ATE pin driving, level-shifting, and clock-driving applications.
and features 2A peak drive capability and a nominal on-resistance of just 3. The EL7457 is ideal for driving highly capacitive loads, such as storage and vertical clocks in CCD applications. It is also well suited to ATE pin driving, level-shifting, and clock-driving applications.
Clocking speeds up to 40MHz
4 channels
Fast output enable function - 12ns
4 channels
Fast output enable function - 12ns
Specifications
Attribute | Value |
|---|---|
| Logic Type | CMOS |
| Output Current | 100 mA |
| Supply Voltage | 18V |
| Pin Count | 16 |
| Package Type | QFN |
