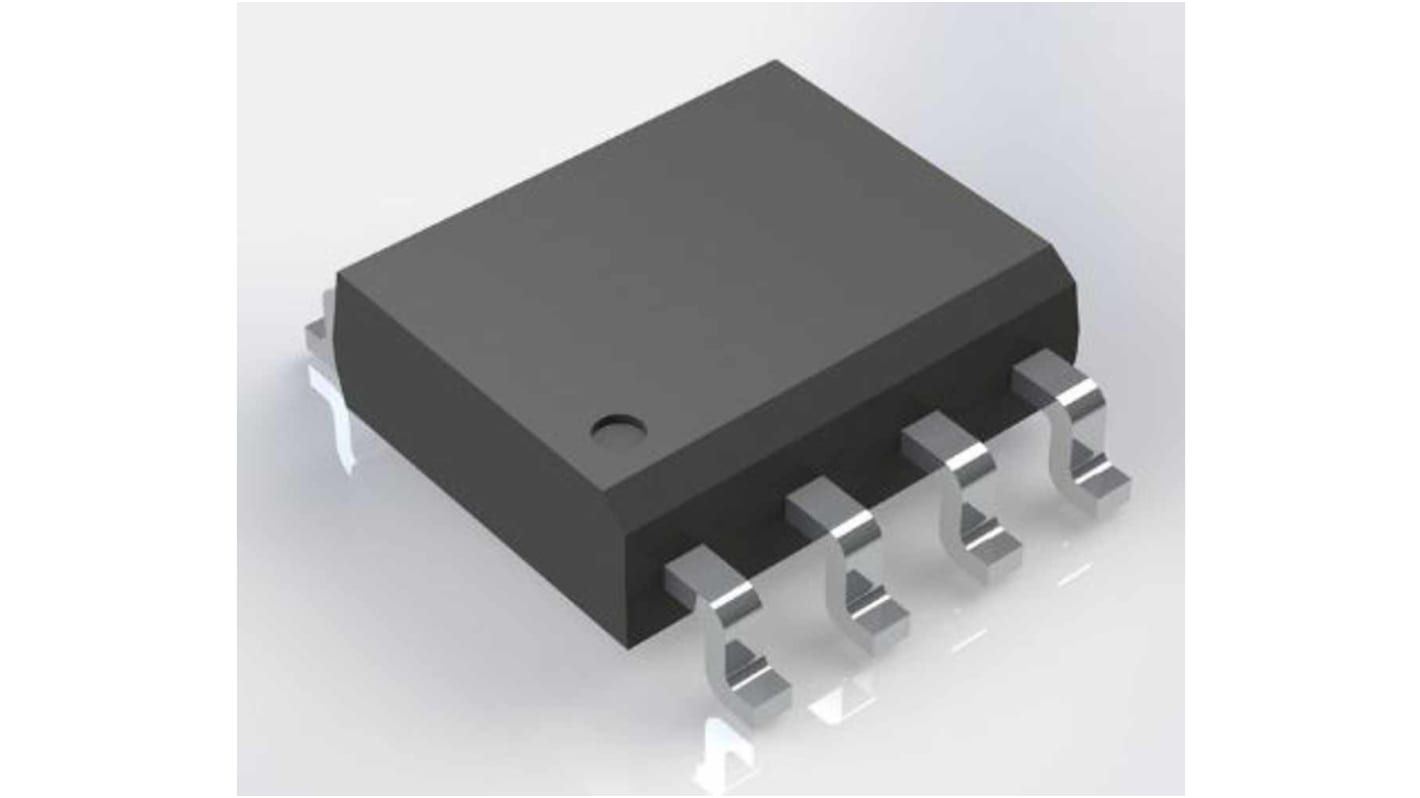

Renesas Electronics Gate Driver 1, 200 mA 8-Pin 18 V, SOIC

View all Gate Drivers

Subtotal (1 reel of 1000 units)*

£3,922.00

(exc. VAT)

£4,706.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£3.922£3,922.00

*price indicative

RS Stock No.:
196-9044
Mfr. Part No.:
EL7156CSZ-T7
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

General Purpose Driver

Output Current

200mA

Pin Count

8

Package Type

SOIC

Fall Time

17ns

Number of Outputs

5

Driver Type

General Purpose

Rise Time

17ns

Minimum Supply Voltage

18V

Number of Drivers

1

Maximum Supply Voltage

18V

Standards/Approvals

No

Height

0.07mm

Series

EL7156

Length

0.19mm

Width

0.15 mm

Mount Type

Surface

Automotive Standard

No

The Renesas Electronics' EL7156 series is high performance pin driver with three-state is suited to many ATE and level-shifting applications. The 3.5A

peak drive capability makes this part an excellent choice when driving high capacitance loads. This pin driver has improved performance over existing pin

drivers. It is specifically designed to operate at voltages down to 0V across the switch elements while maintaining good speed and ON-resistance characteristics.

Clocking speeds up to 40MHz

0.5ns rise and fall times mismatch

Low ON-resistance of 3.5ohm
