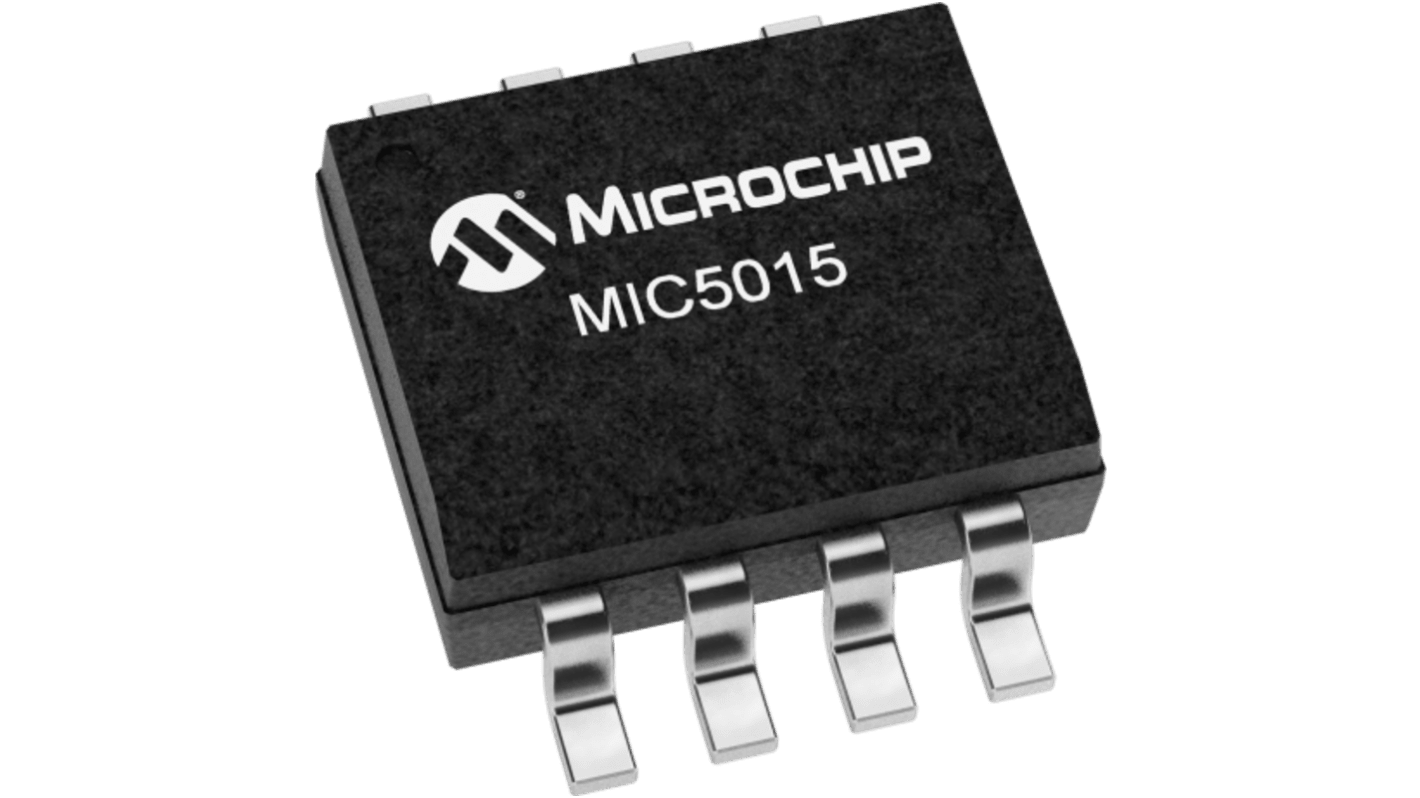

Microchip MIC5015YM-TR High Side Gate Driver 1, 50 mA 8-Pin 30 V

View all Gate Drivers

Subtotal (1 reel of 2500 units)*

£4,005.00

(exc. VAT)

£4,805.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£1.602£4,005.00

*price indicative

RS Stock No.:
598-558
Mfr. Part No.:
MIC5015YM-TR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Gate Driver

Output Current

50mA

Pin Count

8

Fall Time

6000ns

Driver Type

High Side

Rise Time

90000ns

Minimum Supply Voltage

2.75V

Number of Drivers

1

Maximum Supply Voltage

30V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

1.75mm

Series

MIC5014/5

Length

4.90mm

Standards/Approvals

No

Width

6.00 mm

Automotive Standard

No

The Microchip MOSFET driver is designed for gate control of N-channel, enhancement-mode, power MOSFETs used as high-side or low-side switches. It can sustain an on-state output indefinitely. The driver operates from a 2.75V to 30V supply. In high-side configurations, it can control MOSFETs that switch loads of up to 30V. In low-side configurations, with separate supplies, the maximum switched voltage is limited only by the MOSFET.

Overvoltage shutdown at 35V

Internal 15v gate protection

Minimum external parts

Operates in high-side or low-side configurations
