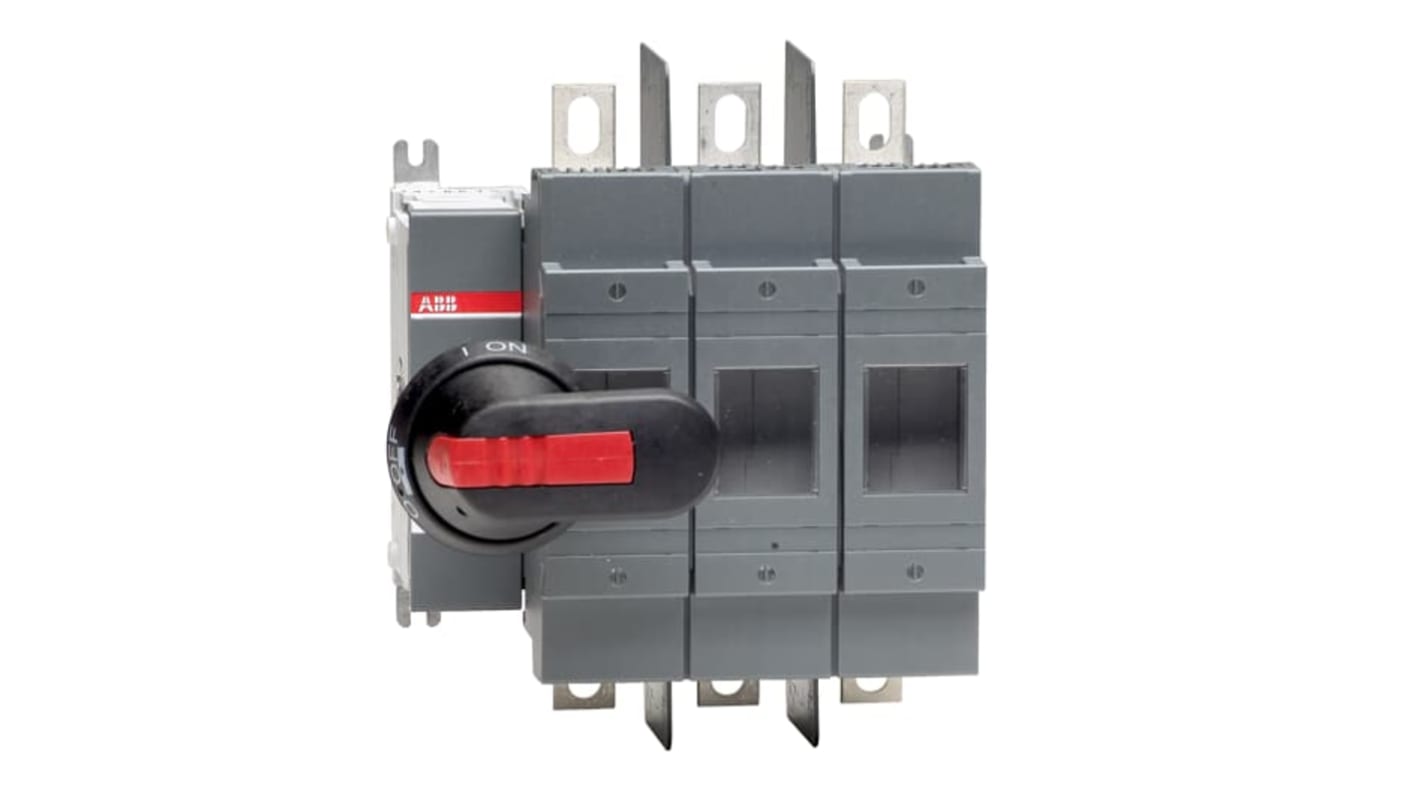

ABB Fuse Switch Disconnector, 3-Pole, 200 A

View all Fuse Switch Disconnectors

Subtotal (1 unit)*

£444.11

(exc. VAT)

£532.93

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£444.11

*price indicative

RS Stock No.:
258-9608
Mfr. Part No.:
1SCA022709R9760
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

3

Product Type

Fuse Switch Disconnector

Enclosed/Not Enclosed

Enclosed

Mount Type

Base

Switching Voltage

600V ac

Electrical Phase

3

Terminal Type

Lug Terminal

Series

1SCA02

Mechanical Fuse Size

200 A

Fuse Current

200A

Standards/Approvals

UL98, IEC 60947-3

COO (Country of Origin):
FI

1SCA022709R9760


The ABB enclosed switch disconnector is using a galvanised steel enclosure, black pistol handle, interlocked cover and defeat able interlocking with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

IP65 protection

The handle is pad lockable for 3 padlocks
