Siemens Switch Disconnector, 3 Pole, 160A Max Current
- RS Stock No.:
- 218-3196
- Mfr. Part No.:
- 3KD3432-2NE10-0
- Brand:
- Siemens
Available to back order for despatch 16/07/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£176.90
(exc. VAT)
£212.28
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £176.90 |
- RS Stock No.:
- 218-3196
- Mfr. Part No.:
- 3KD3432-2NE10-0
- Brand:
- Siemens
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

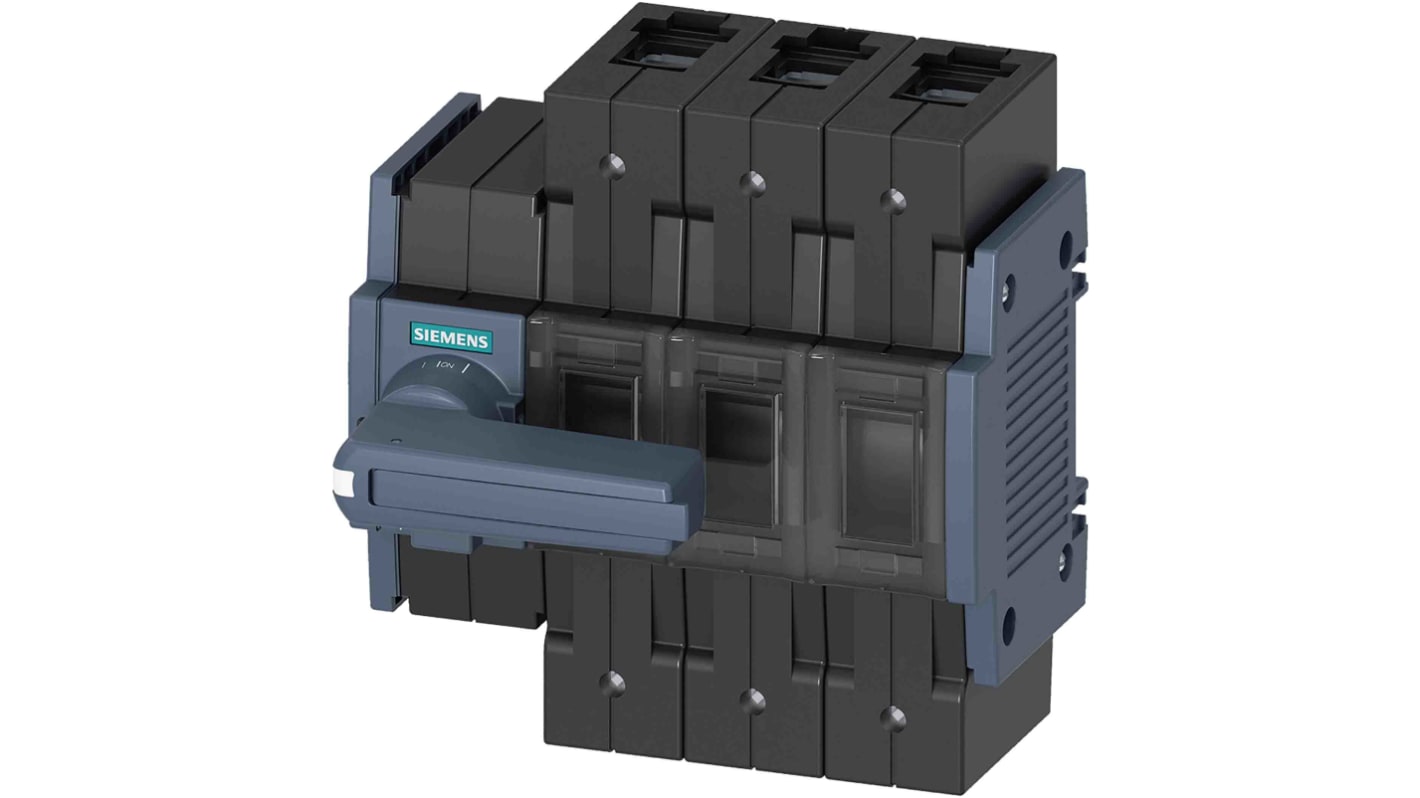

The Siemens SENTRON switch disconnector has current ratings of 160 A with three number of poles. It has front operating mechanism with position of the switch operating mechanism at left end .It offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Protection class IP20
Isolation voltage 1000 V
Ambient temperature -25 °C to +70 °C
Surge voltage resistance 8 kV
Mechanical life 15000
Electrical life 1500
Colour of the actuator grey
Design of the electrical connection frame clamp
Size of the switch dis
Isolation voltage 1000 V
Ambient temperature -25 °C to +70 °C
Surge voltage resistance 8 kV
Mechanical life 15000
Electrical life 1500
Colour of the actuator grey
Design of the electrical connection frame clamp
Size of the switch dis
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3 |
| Maximum Current | 160A |
| Mounting Type | DIN Rail |
| Normal State Configuration | 4CO |
| Range | SENTRON |
| Series | 3KD |
| Auxiliary Contacts Available | Yes |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
