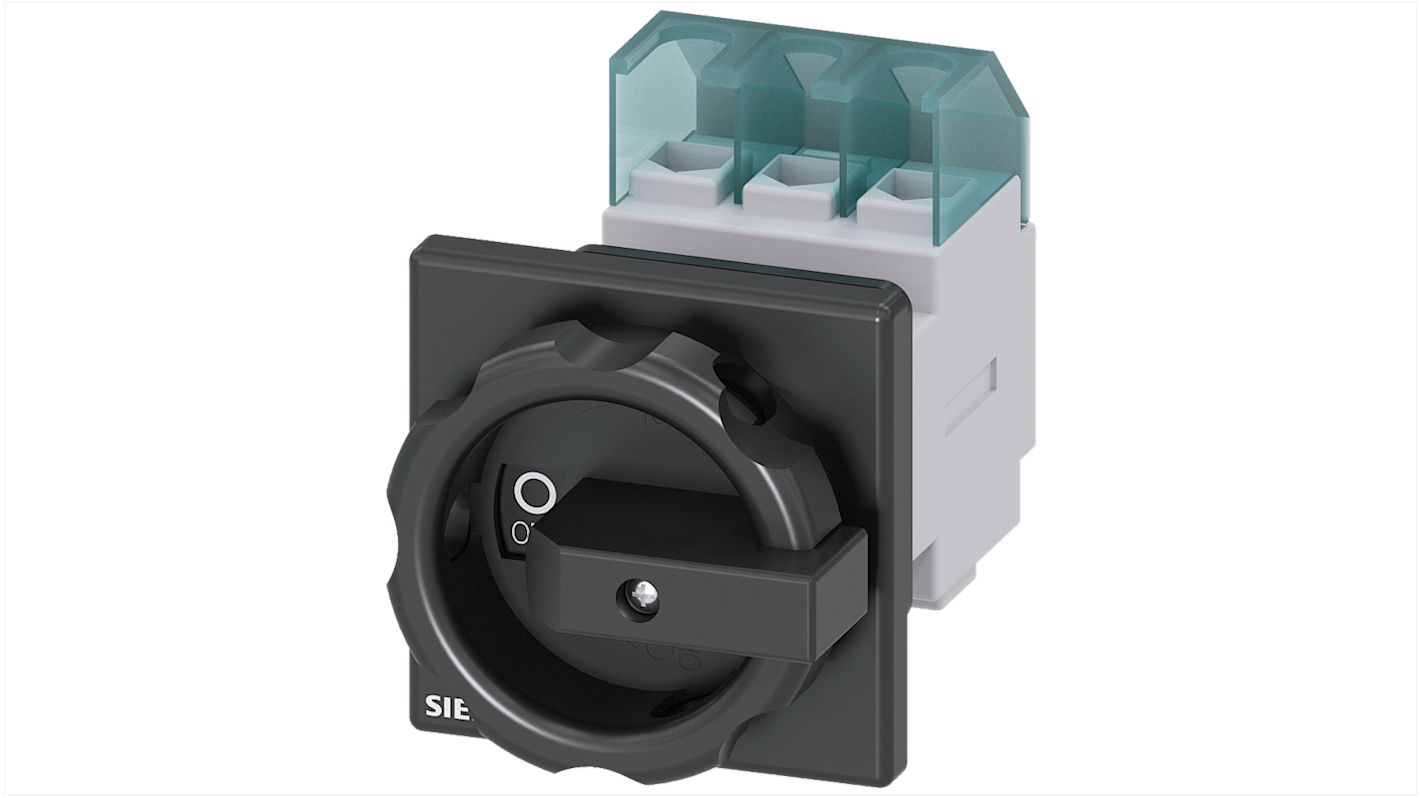

Siemens Switch Disconnector, 3-Pole, 25 A, 25A
- RS Stock No.:
- 212-5784
- Mfr. Part No.:
- 3LD2154-0TK51
- Brand:
- Siemens
Subtotal (1 unit)*
£30.44
(exc. VAT)
£36.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.44 |
*price indicative
- RS Stock No.:
- 212-5784
- Mfr. Part No.:
- 3LD2154-0TK51
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Switch Disconnector | |
| Number of Poles | 3 | |
| Enclosed/Not Enclosed | Enclosed | |
| Mount Type | Fixed | |
| Switching Voltage | 690V | |
| Switching Current | 25A | |
| Terminal Type | Box | |
| Series | 3LD | |
| IP Rating | IP65 | |
| Mechanical Fuse Size | 2 | |
| Fuse Current | 25A | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 9.5kW | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | VDE, UL, RoHS, EN, CSA, CE, CCC | |
| Auxiliary Contacts Available | No | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Switch Disconnector | ||
Number of Poles 3 | ||
Enclosed/Not Enclosed Enclosed | ||
Mount Type Fixed | ||
Switching Voltage 690V | ||
Switching Current 25A | ||
Terminal Type Box | ||
Series 3LD | ||
IP Rating IP65 | ||
Mechanical Fuse Size 2 | ||
Fuse Current 25A | ||
Minimum Operating Temperature -25°C | ||
Switching Power 9.5kW | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals VDE, UL, RoHS, EN, CSA, CE, CCC | ||
Auxiliary Contacts Available No | ||
- COO (Country of Origin):
- DE
The Siemens SENTRON series 3LD switch disconnector has rated continuous current of 25A and type of switch is front mounting. The switches for front mounting are mounted on the inside of the panel door via the operating mechanism. The switches are mounted via the 22.5 mm diameter centre hole.
It consist three poles
Fixed mounting Device type
