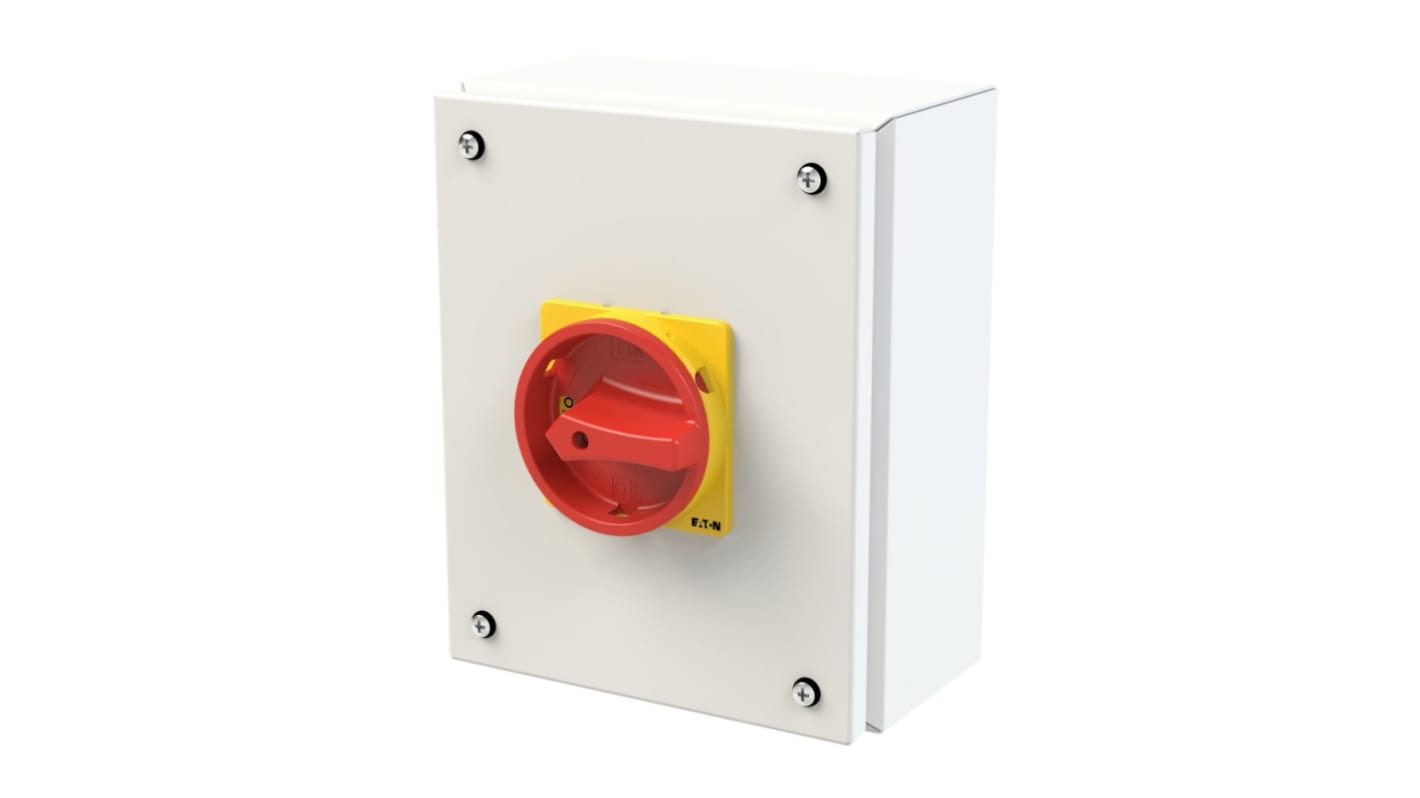

Eaton Switch Disconnector, 3-Pole, 100 A, 100A
- RS Stock No.:
- 204-1577
- Mfr. Part No.:
- 197370 P3-100/SE3/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£369.04
(exc. VAT)
£442.85
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £369.04 |
*price indicative
- RS Stock No.:
- 204-1577
- Mfr. Part No.:
- 197370 P3-100/SE3/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Switch Disconnector | |
| Number of Poles | 3 | |
| Enclosed/Not Enclosed | Enclosed | |
| Mount Type | Surface Mount | |
| Switching Voltage | 690V ac | |
| Electrical Phase | 3 | |
| Terminal Type | Screw | |
| Switching Current | 100A | |
| Series | P3 | |
| IP Rating | IP65 | |
| Switching Power | 55kW | |
| Fuse Current | 100A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 40°C | |
| Auxiliary Contacts Available | No | |
| Standards/Approvals | IEC/EN 60204, VDE 0660, IEC/EN 60947-3, IEC/EN 60947 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Switch Disconnector | ||
Number of Poles 3 | ||
Enclosed/Not Enclosed Enclosed | ||
Mount Type Surface Mount | ||
Switching Voltage 690V ac | ||
Electrical Phase 3 | ||
Terminal Type Screw | ||
Switching Current 100A | ||
Series P3 | ||
IP Rating IP65 | ||
Switching Power 55kW | ||
Fuse Current 100A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 40°C | ||
Auxiliary Contacts Available No | ||
Standards/Approvals IEC/EN 60204, VDE 0660, IEC/EN 60947-3, IEC/EN 60947 | ||
Eaton Series P3 Fuse Switch Disconnector, 100A Maximum Current, 3NO Normal State Configuration - 197370 P3-100/SE3/SVB
This fuse switch disconnector provides isolation and protection for electrical installations. It is suitable for automation and electrical applications, playing a key role in ensuring safety during maintenance and operation. Its robust design and sealed structure make it effective in managing high currents.
Features & Benefits
• Enclosed construction enhances safety and durability
• Surface mount design simplifies installation
• 100A rating supports high current requirements
• 3 pole configuration accommodates versatile electrical applications
• Lockable in the 'Off' position promotes safety during maintenance
• Screw terminal connections ensure secure wiring
Applications
• Isolating electrical circuits in industrial settings
• Emergency shutdown systems for equipment
• Integrated into machinery for maintenance tasks
• Utilised in electrical panels and distribution boards
• Suitable for surface mounting in various installations
What is the maximum operational temperature for this unit?
The maximum operating temperature is +40°C, ensuring effective performance across different conditions.
Can it handle different types of electrical loads?
Yes, it is suitable for both motor loads and general electrical loads within its specified ratings.
What type of cables can be connected?
It accommodates solid or stranded cables with specified cross-sections for secure connections.
How does this product ensure safety during operation?
It features emergency switching off capability and a locking ring, enhancing safety during maintenance tasks.
Note
Eaton formerly known as Moeller
