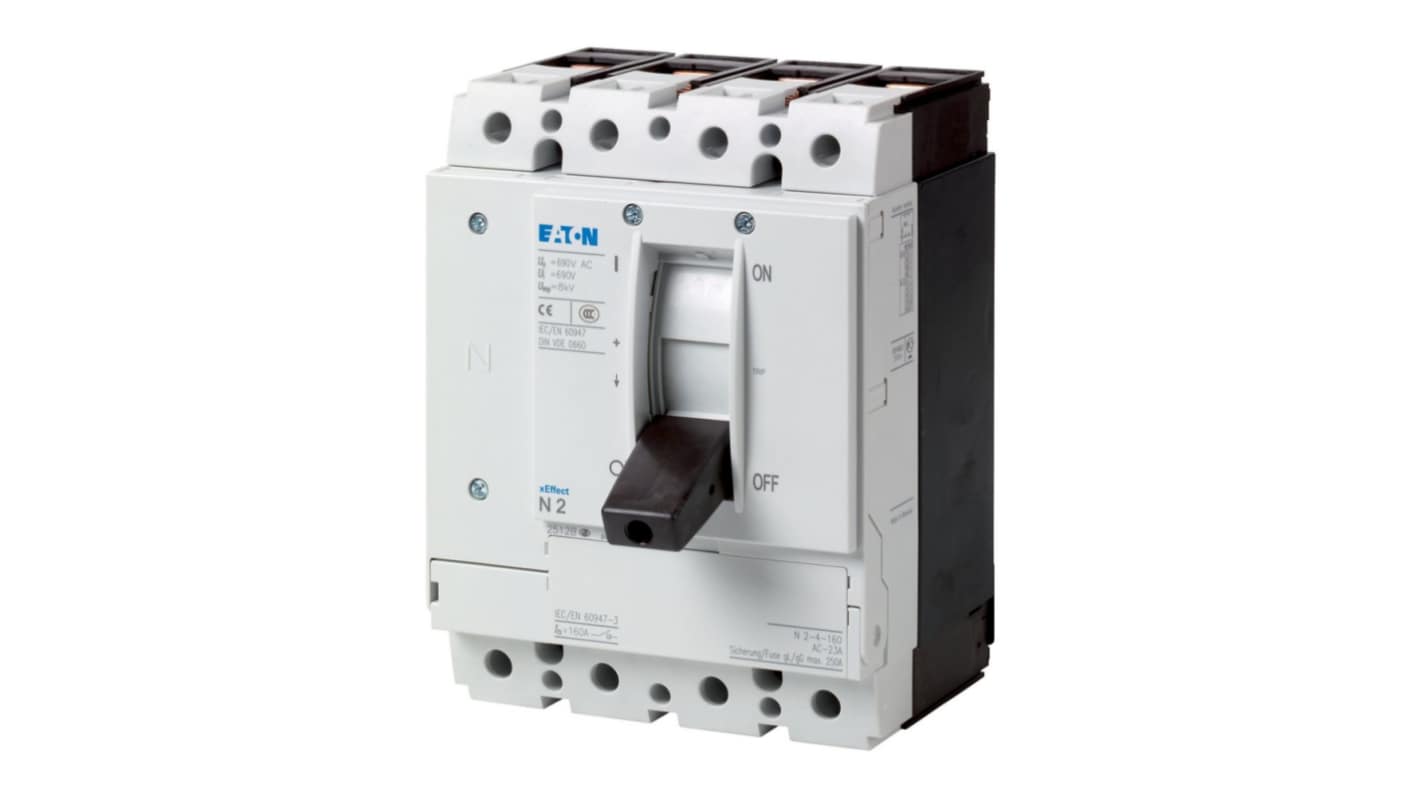

Eaton Switch Disconnector, 4-Pole
- RS Stock No.:
- 244-305
- Mfr. Part No.:
- 127733 N2-4-200-S1-DC
- Brand:
- Eaton
Subtotal (1 unit)*
£1,535.37
(exc. VAT)
£1,842.44
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,535.37 |
*price indicative
- RS Stock No.:
- 244-305
- Mfr. Part No.:
- 127733 N2-4-200-S1-DC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Switch Disconnector | |
| Number of Poles | 4 | |
| Enclosed/Not Enclosed | Not Enclosed | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Series | NZM | |
| Switching Power | 0kW | |
| Minimum Operating Temperature | -25°C | |
| Mechanical Fuse Size | 200 A gG/gL | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC/EN 60947-3, CCC China | |
| Auxiliary Contacts Available | No | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Switch Disconnector | ||
Number of Poles 4 | ||
Enclosed/Not Enclosed Not Enclosed | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Series NZM | ||
Switching Power 0kW | ||
Minimum Operating Temperature -25°C | ||
Mechanical Fuse Size 200 A gG/gL | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC/EN 60947-3, CCC China | ||
Auxiliary Contacts Available No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The Eaton Switch disconnector is engineered to meet the demands of modern applications, ensuring peak performance and reliability. Designed for 200A use at 1000VDC, it effectively enables safe disconnection of electrical circuits while providing robust protection against overload. Its compact dimensions of 149mm in depth, 184mm in height, and 140mm in width make it an ideal choice for various installations, including open areas and utility buildings.
Temperature rise calculations supported to maximise efficiency
Degree of protection IP20 safeguards against particle ingress
Mechanical impact resistance verified to maintain integrity
Quick installation with screw terminal connections for convenience
Excellent compatibility with various copper and aluminium conductor types
