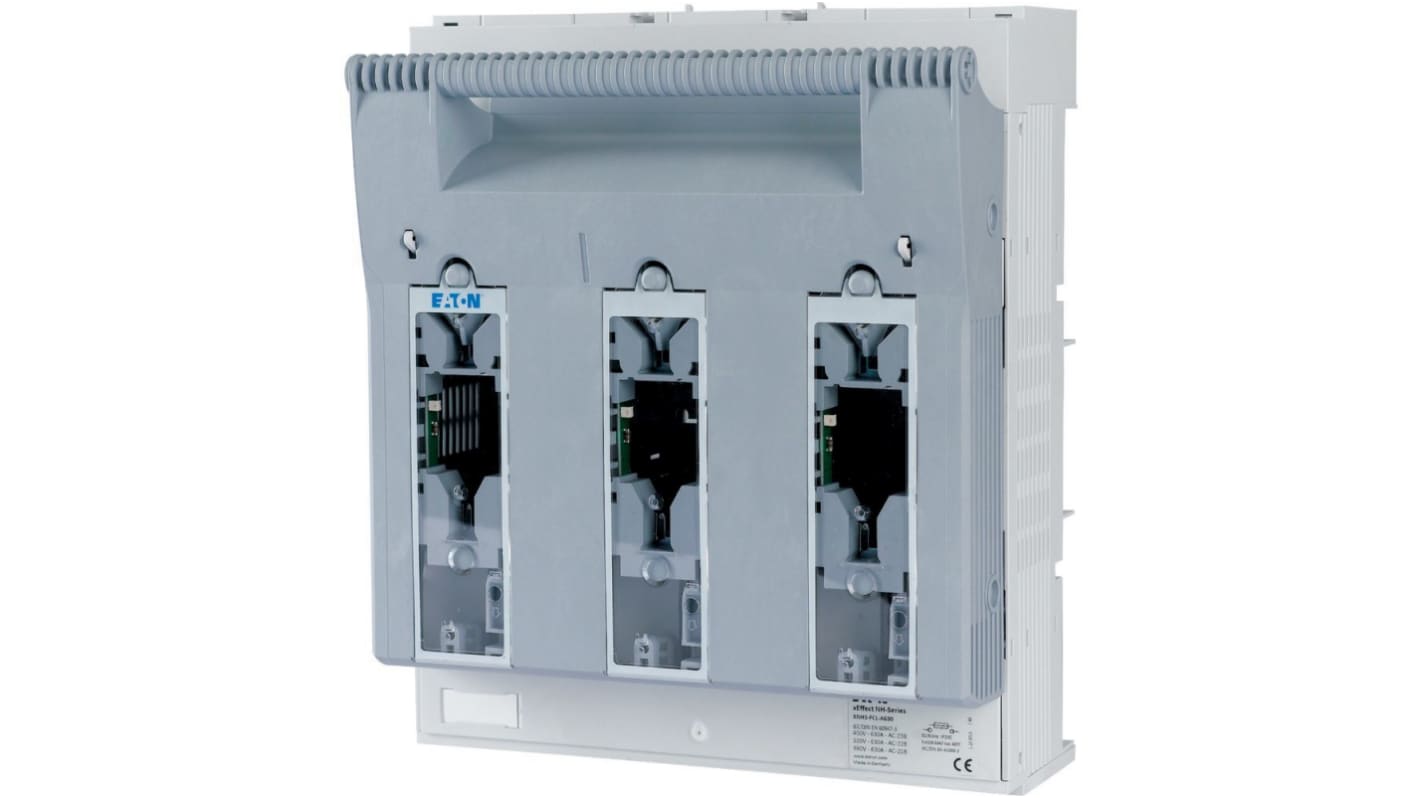

Eaton Switch Disconnector, 3-Pole, 630 A, 630A
- RS Stock No.:
- 242-903
- Mfr. Part No.:
- 183073 XNH3-FCL-A630
- Brand:
- Eaton
Subtotal (1 unit)*
£528.69
(exc. VAT)
£634.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £528.69 |
*price indicative
- RS Stock No.:
- 242-903
- Mfr. Part No.:
- 183073 XNH3-FCL-A630
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Switch Disconnector | |
| Enclosed/Not Enclosed | Not Enclosed | |
| Mount Type | Horizontal, Vertical, Ground | |
| Switching Voltage | 800V | |
| Terminal Type | Screw | |
| Switching Current | 630A | |
| Series | xEffect XNH | |
| IP Rating | IP10, IP20, IP2XC | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 0kW | |
| Fuse Current | 630A | |
| Mechanical Fuse Size | NH3 | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | IEC/EN 60947-3 | |
| Auxiliary Contacts Available | Yes | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Switch Disconnector | ||
Enclosed/Not Enclosed Not Enclosed | ||
Mount Type Horizontal, Vertical, Ground | ||
Switching Voltage 800V | ||
Terminal Type Screw | ||
Switching Current 630A | ||
Series xEffect XNH | ||
IP Rating IP10, IP20, IP2XC | ||
Minimum Operating Temperature -25°C | ||
Switching Power 0kW | ||
Fuse Current 630A | ||
Mechanical Fuse Size NH3 | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals IEC/EN 60947-3 | ||
Auxiliary Contacts Available Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Eaton xEffect XNH circuit protection device is engineered for optimal performance in demanding electrical applications. Designed with robustness in mind, this model offers a three-pole flange connection that supports a maximum conductor size of 300 mm². The integrated light fuse monitoring system enhances operational efficiency, ensuring that users are promptly informed of any fuse-link activations. With compliance to RoHS standards and a range of certifications, this device guarantees reliability and safety across various installations. Its flexible mounting options make it suitable for both vertical and horizontal configurations, providing versatility in various installation environments. The xEffect XNH embodies cutting-edge technology while meeting stringent product standards for performance and safety, making it an ideal choice for panel builders and electricians alike.
Offers permanent operation in rated operating mode for dependable functionality
Features optical signalling for immediate detection of triggered fuse-links
Designed with corrosion-resistant materials for long-lasting durability
Allows for multiple mounting methods, including DIN rail and mounting plates
Performs effectively across a wide ambient temperature range, ensuring adaptability
Incorporates a self-extinguishing material that meets UL 94 flammability standards
Delivers maximum heat dissipation capabilities for enhanced thermal management
Provides robust protection against electric shock with thorough adherence to safety standards
Supports a variety of terminal capacities for flexible installation options
Incorporates an optional locking facility for added security during operation
