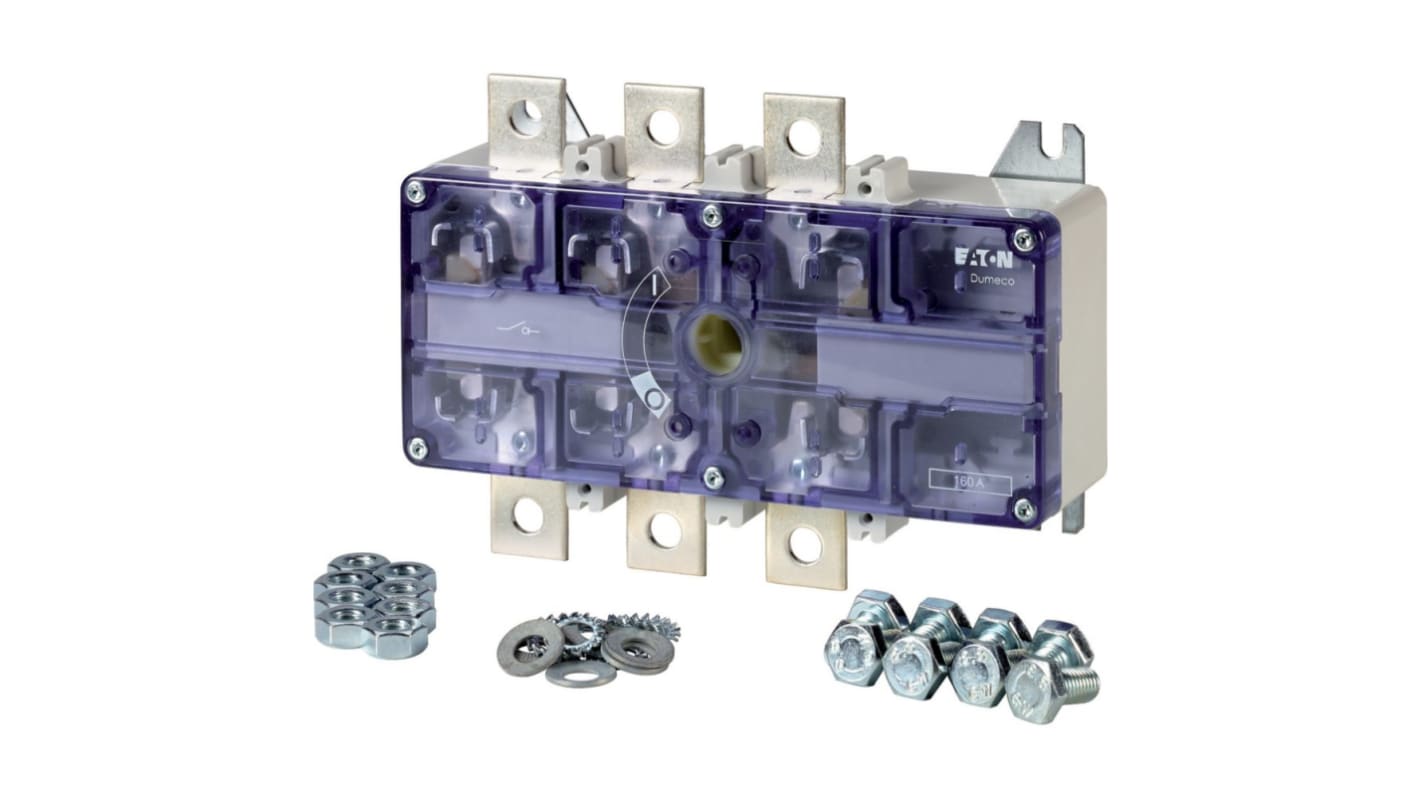

Eaton Fuse Switch Disconnector, 3-Pole, 160 A, 160A
- RS Stock No.:
- 133-023
- Mfr. Part No.:
- 1814186 DMVS-160N/3
- Brand:
- Eaton
Subtotal (1 unit)*
£254.61
(exc. VAT)
£305.53
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £254.61 |
*price indicative
- RS Stock No.:
- 133-023
- Mfr. Part No.:
- 1814186 DMVS-160N/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Fuse Switch Disconnector | |
| Number of Poles | 3 | |
| Enclosed/Not Enclosed | Enclosed | |
| Mount Type | Surface | |
| Switching Voltage | 690V | |
| Terminal Type | Screw | |
| Switching Current | 160A | |
| IP Rating | IP20 | |
| Series | DMVS | |
| Fuse Current | 160A | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 90kW | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC/EN 60947, CE, EAC, IEC/EN 60204, VDE 0660, IEC/EN 60947-3, Lloyds | |
| Auxiliary Contacts Available | Yes | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Fuse Switch Disconnector | ||
Number of Poles 3 | ||
Enclosed/Not Enclosed Enclosed | ||
Mount Type Surface | ||
Switching Voltage 690V | ||
Terminal Type Screw | ||
Switching Current 160A | ||
IP Rating IP20 | ||
Series DMVS | ||
Fuse Current 160A | ||
Minimum Operating Temperature -25°C | ||
Switching Power 90kW | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC/EN 60947, CE, EAC, IEC/EN 60204, VDE 0660, IEC/EN 60947-3, Lloyds | ||
Auxiliary Contacts Available Yes | ||
RoHS Status: Exempt
The Eaton Switch disconnector described is a main switch with optional stop function. It is suitable for motor ratings of AC-23A, 50-60 Hz at 400V, with a power rating of 90 kW and a rated uninterrupted current of 160 A. The device complies with standards IEC/EN 60947, VDE 0660, and IEC/EN 60204 for switch-disconnectors.
RoHS compliant
IP20 degree protection
Version as emergency stop installation
