Eaton Fuse Switch Disconnector, 2-Pole, 125 A, 125A
- RS Stock No.:
- 124-837
- Mfr. Part No.:
- 179258 PV-DIS-06-125/2
- Brand:
- Eaton
Subtotal (1 unit)*
£226.22
(exc. VAT)
£271.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £226.22 |
*price indicative
- RS Stock No.:
- 124-837
- Mfr. Part No.:
- 179258 PV-DIS-06-125/2
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 2 | |
| Product Type | Fuse Switch Disconnector | |
| Enclosed/Not Enclosed | Not Enclosed | |
| Switching Voltage | 1000V | |
| Terminal Type | Frame Clamp | |
| Switching Current | 125A | |
| Series | PV-DIS | |
| IP Rating | IP20, IP40 | |
| Fuse Current | 125A | |
| Minimum Operating Temperature | -20°C | |
| Switching Power | 0kW | |
| Maximum Operating Temperature | 40°C | |
| Auxiliary Contacts Available | Yes | |
| Standards/Approvals | IEC 60947-2, RoHS conform VDE, IEC 60947-3 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 2 | ||
Product Type Fuse Switch Disconnector | ||
Enclosed/Not Enclosed Not Enclosed | ||
Switching Voltage 1000V | ||
Terminal Type Frame Clamp | ||
Switching Current 125A | ||
Series PV-DIS | ||
IP Rating IP20, IP40 | ||
Fuse Current 125A | ||
Minimum Operating Temperature -20°C | ||
Switching Power 0kW | ||
Maximum Operating Temperature 40°C | ||
Auxiliary Contacts Available Yes | ||
Standards/Approvals IEC 60947-2, RoHS conform VDE, IEC 60947-3 | ||

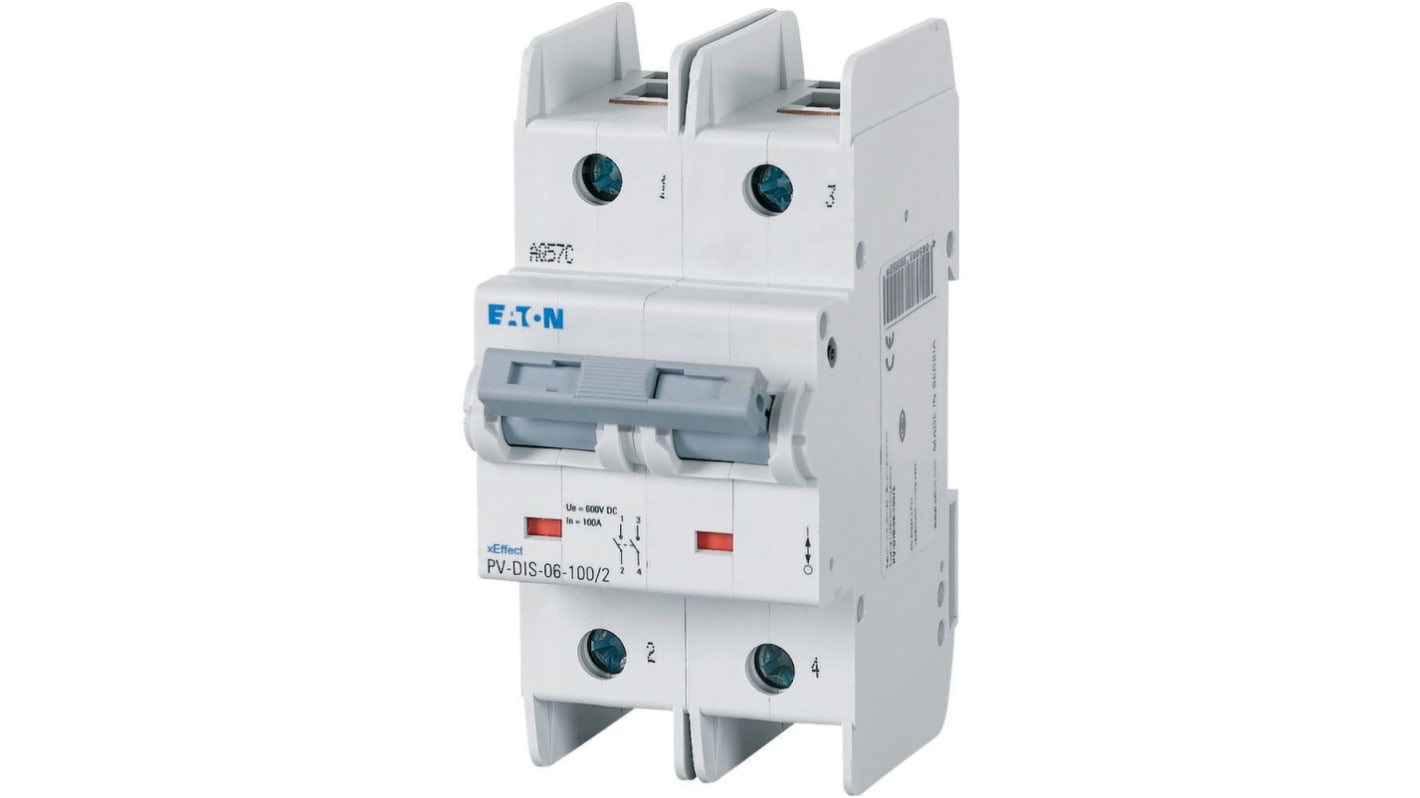

The Eaton Photovoltaic Switch disconnector features a compact design with a width of only 54mm and supports up to 1000V. It offers increased safety through independent manual operation and ensures stable performance at every current level, being polarity independent. The design reduces power loss due to fewer poles and operates at 600V DC with a current rating of 125 A, complying with IEC 60947-3 DC-PV1 standards.
Shock resistance
RoHS compliant
VDE approved
IP20 degree protection
