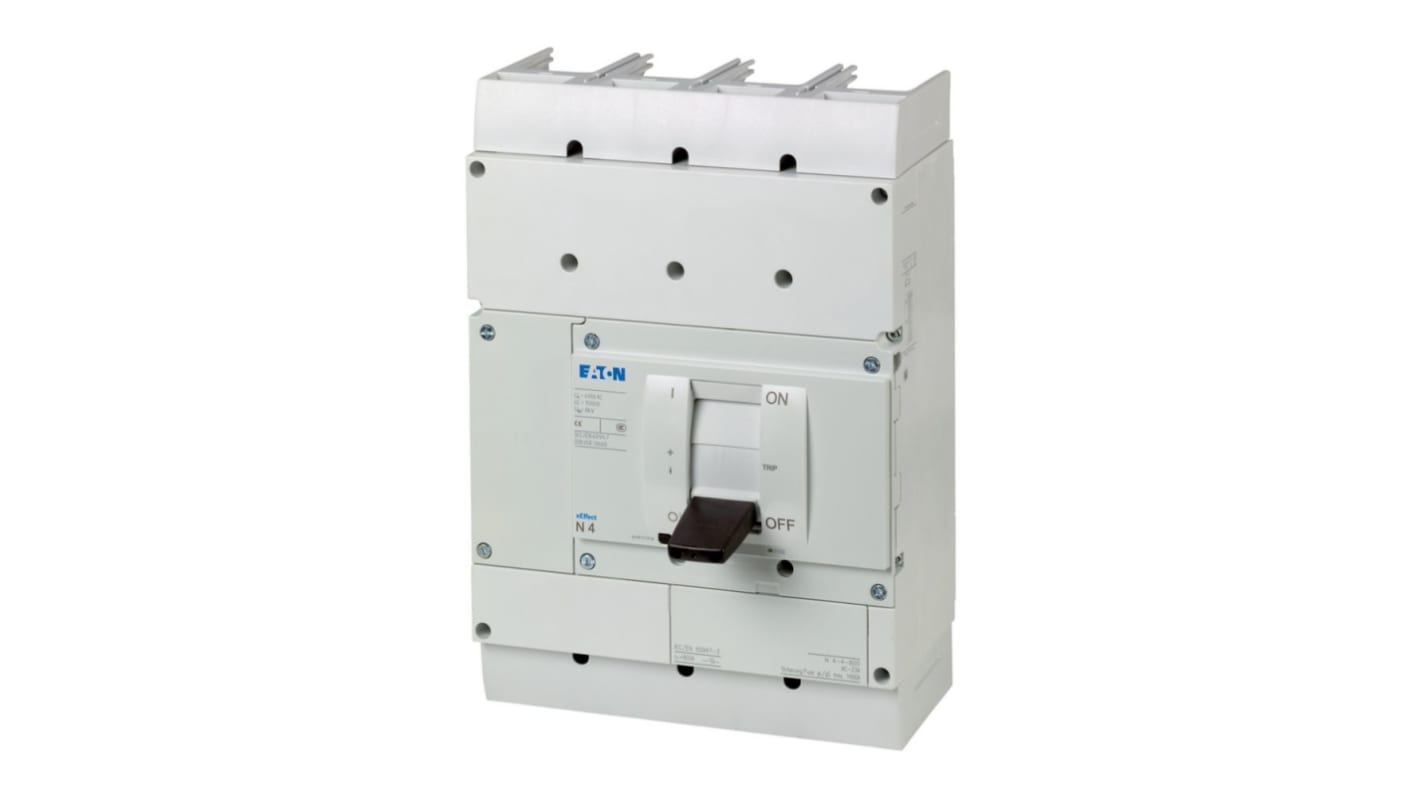

Eaton Switch Disconnector, 4-Pole, 1000 A, 1000A
- RS Stock No.:
- 121-323
- Mfr. Part No.:
- 166414 N4-4-1000-S15-DC
- Brand:
- Eaton
Subtotal (1 unit)*
£8,820.86
(exc. VAT)
£10,585.03
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8,820.86 |
*price indicative
- RS Stock No.:
- 121-323
- Mfr. Part No.:
- 166414 N4-4-1000-S15-DC
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Switch Disconnector | |
| Number of Poles | 4 | |
| Enclosed/Not Enclosed | Enclosed | |
| Mount Type | Floor, Intermediate Mount | |
| Switching Voltage | 1500V | |
| Terminal Type | Screw | |
| Switching Current | 1000A | |
| Series | NZM | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 0kW | |
| Fuse Current | 1000A | |
| Maximum Operating Temperature | 70°C | |
| Auxiliary Contacts Available | Yes | |
| Standards/Approvals | IEC/EN 60947-3, CCC China Compulsory Certificate | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Switch Disconnector | ||
Number of Poles 4 | ||
Enclosed/Not Enclosed Enclosed | ||
Mount Type Floor, Intermediate Mount | ||
Switching Voltage 1500V | ||
Terminal Type Screw | ||
Switching Current 1000A | ||
Series NZM | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Switching Power 0kW | ||
Fuse Current 1000A | ||
Maximum Operating Temperature 70°C | ||
Auxiliary Contacts Available Yes | ||
Standards/Approvals IEC/EN 60947-3, CCC China Compulsory Certificate | ||
The Eaton Switch disconnector comply with isolation properties for earthed IT networks. Accessories like bridge kits, connection terminals and door coupling rotary handles allow individual installation in various distribution systems. They possess main switch characteristics with positive drive according to IEC/EN 60204 and VDE 0113, and isolating characteristics per IEC/EN 60947-3 and VDE 0660.
RoHS compliant
Interlockable
IP20 degree protection
