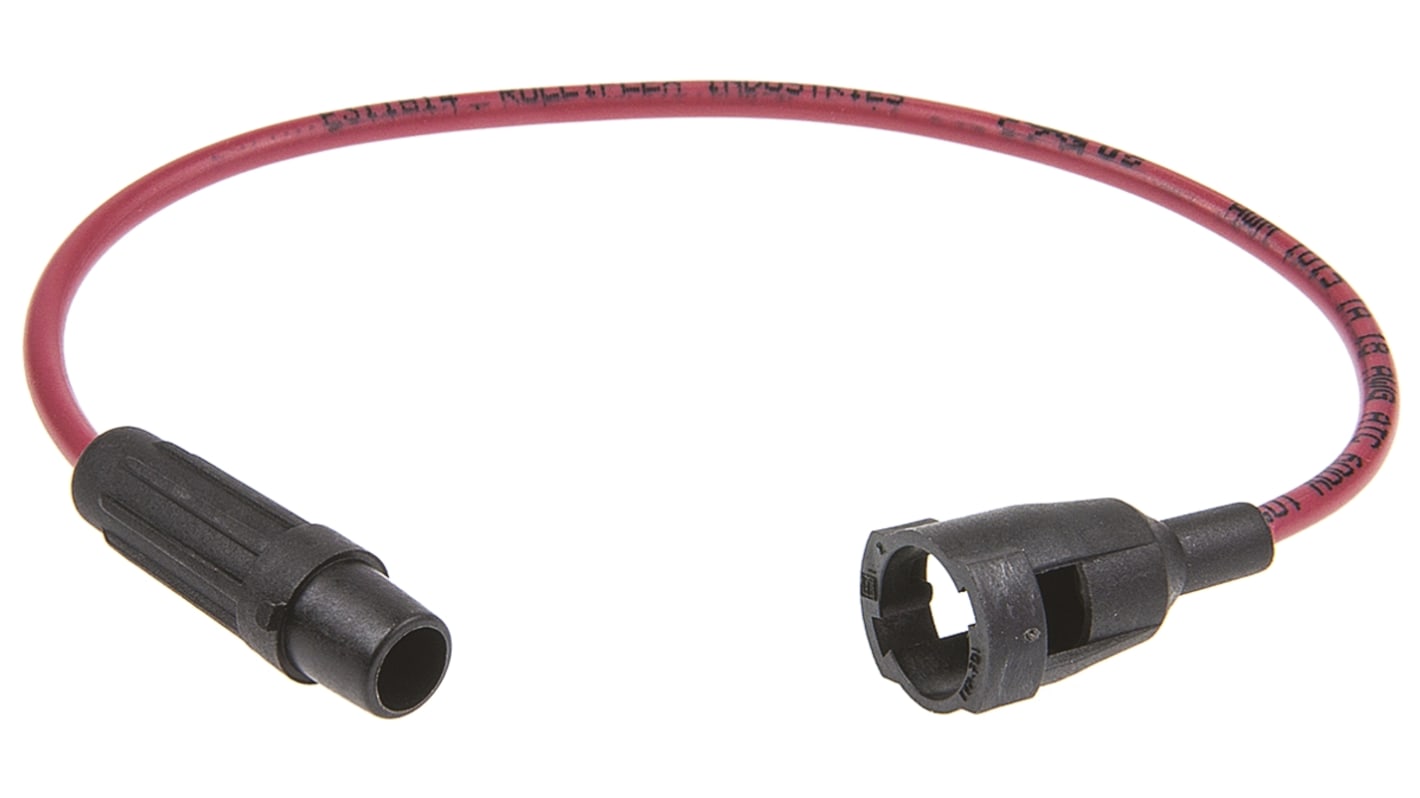

Schurter 6.3 A In-line Fuse Holder for 6.3 x 32 mm, 32 V dc, 32 V ac
- RS Stock No.:
- 703-2815
- Distrelec Article No.:
- 304-43-840
- Mfr. Part No.:
- 8601.2001.08
- Brand:
- Schurter
Bulk discount available
Subtotal (1 bag of 10 units)*
£18.40
(exc. VAT)
£22.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 590 unit(s) shipping from 18 May 2026
- Plus 220 unit(s) shipping from 18 May 2026
- Plus 490 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 10 | £1.84 | £18.40 |
| 20 - 20 | £1.765 | £17.65 |
| 30 + | £1.654 | £16.54 |
*price indicative
- RS Stock No.:
- 703-2815
- Distrelec Article No.:
- 304-43-840
- Mfr. Part No.:
- 8601.2001.08
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Product Type | In-line Fuse Holder | |
| Current Rating | 6.3 A | |
| Voltage | 32 V dc, 32 V ac | |
| Body Material | Thermoplastic | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -40°C | |
| Compatible Fuse Size | 6.3 x 32 mm | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL 94V-0 | |
| Lead Wire Size | 18AWG | |
| Terminal Type | Solder | |
| Contact Material | Tin Plated Brass | |
| Lead Wire Length | 7.87in | |
| Series | FDI | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Product Type In-line Fuse Holder | ||
Current Rating 6.3 A | ||
Voltage 32 V dc, 32 V ac | ||
Body Material Thermoplastic | ||
IP Rating IP40 | ||
Minimum Operating Temperature -40°C | ||
Compatible Fuse Size 6.3 x 32 mm | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL 94V-0 | ||
Lead Wire Size 18AWG | ||
Terminal Type Solder | ||
Contact Material Tin Plated Brass | ||
Lead Wire Length 7.87in | ||
Series FDI | ||
- COO (Country of Origin):
- IN
Schurter In Line Fuseholder
Schurter PC2 Inline Fuseholders has integral protection against electric shock. Live part is not accessible when the fuseholder is closed, after the fuse carrier (incl. fuse-link) has been removed, either during insertion or removal of the fuse carrier (incl. fuse-link). Compliance is checked by using the standard test finger specified in IEC 60529.
Automotive applications/aftermarket
Audio aftermarket
Lighting aftermarket
