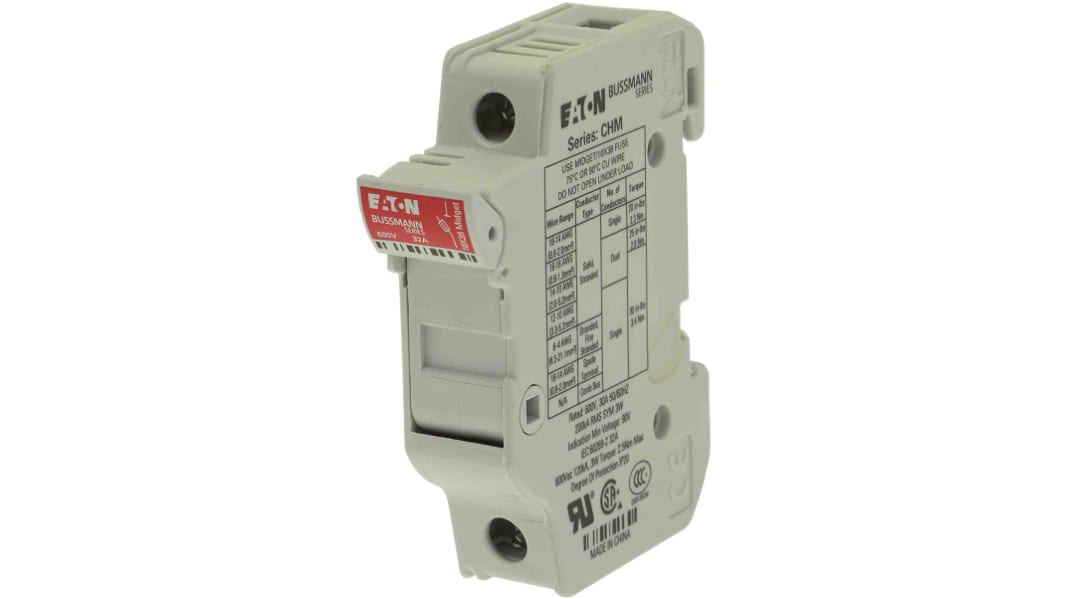

Eaton 32A Rail Mount Fuse Holder for 10 x 38mm Fuse, 1P, 690V ac
- RS Stock No.:
- 489-4578
- Mfr. Part No.:
- CHM1DU
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£5.36
(exc. VAT)
£6.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 170 unit(s) ready to ship from another location
- Plus 288 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £5.36 |
5 - 24 | £4.84 |
25 - 49 | £4.58 |
50 - 99 | £4.02 |
100 + | £3.76 |
*price indicative
- RS Stock No.:
- 489-4578
- Mfr. Part No.:
- CHM1DU
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Fuse Holder Type | Rail Mount | |
Fuse Size | 10 x 38mm | |
Current Rating | 32A | |
Voltage Rating | 690V ac | |
Number of Poles | 1P | |
Includes Indicator | No | |
Rail Type | DIN 35 mm | |
Case Material | PET | |
International Protection Rating | IP20 | |
Compatible Fuse Length | 38mm | |
Compatible Fuse Sizes | 10 x 38 mm | |
Compatible Fuse Diameter | 10mm | |
Standards Met | CCC, IEC 60269-1 and 2, UL Listed File E14853 | |
Select all | ||
---|---|---|
Brand Eaton | ||
Fuse Holder Type Rail Mount | ||
Fuse Size 10 x 38mm | ||
Current Rating 32A | ||
Voltage Rating 690V ac | ||
Number of Poles 1P | ||
Includes Indicator No | ||
Rail Type DIN 35 mm | ||
Case Material PET | ||
International Protection Rating IP20 | ||
Compatible Fuse Length 38mm | ||
Compatible Fuse Sizes 10 x 38 mm | ||
Compatible Fuse Diameter 10mm | ||
Standards Met CCC, IEC 60269-1 and 2, UL Listed File E14853 | ||
- COO (Country of Origin):
- CN
Eaton Fuse Holders - Rail Mount
This range of fuse holders are also known as finger-safe fuse holders, originally created and designed to be used with Class CC, supplemental and PV fuses. These type of fuse holders will predominantly be found within industrial and commercial environments. The rail mount fuse holders contain fuses that are slotted into sets with metal contacts.
Features & Benefits
• Accessories for these types of fuses will extend their application
• The CH series of fuse holders are industry standard for protecting utility and industrial installations
• IP20 rating - holding an IP20 rating means that the fuse holder has ingress protection against solid objects up to 12 mm - such as a person's finger and no protection against liquids)
• Designed to protect applications from potentially devastating effects of low, short circuits and over-voltage conditions
• Compatible with standard and motor rated fuses
• UL recognised midget and IEC holders that have a factory assembles neutral pole option
• Accepts wire security tags
• Multiple pole configurations
• Constructed from self-extinguishing UL 94-V0 rated polyester material, enabling the fuse holders from the CH range to be durable and versatile
• The CH series of fuse holders are industry standard for protecting utility and industrial installations
• IP20 rating - holding an IP20 rating means that the fuse holder has ingress protection against solid objects up to 12 mm - such as a person's finger and no protection against liquids)
• Designed to protect applications from potentially devastating effects of low, short circuits and over-voltage conditions
• Compatible with standard and motor rated fuses
• UL recognised midget and IEC holders that have a factory assembles neutral pole option
• Accepts wire security tags
• Multiple pole configurations
• Constructed from self-extinguishing UL 94-V0 rated polyester material, enabling the fuse holders from the CH range to be durable and versatile
What are fuse holders used for?
One of the main functions of a rail mount fuse holder is to offer circuit protection, it is to also offer protection to both the user and the equipment in the event of a circuit overload within any given application.
Eaton Rail Mount Fuse Holder, 32A, 690V AC - CHM1DU
Use this fuse holder from Eaton to stop overcurrent or short circuits from damaging electrical equipment. It provides a secure housing for a fuse, which trips power circuits in the event of a fault. The robust holder is suitable to use in commercial and industrial settings and is easy to mount onto a standard DIN rail. A locking function prevents unauthorised tampering to improve workplace safety. The holder carries an IP20 (ingress protection) rating, which means it's touch-proof and resistant to dust or objects greater than 12mm in size. Use it in electrical installations and for engineering applications.
• Compatible with standard and motor-rated fuses for versatility
• Made of self-extinguishing polyester material for improved safety in the event of a fire
• 35mm DIN rail mounting ensures quick and easy installation
• Made of self-extinguishing polyester material for improved safety in the event of a fire
• 35mm DIN rail mounting ensures quick and easy installation
What's the power capacity of this fuse holder?
This fuse holder provides safe breaking and isolation of electrical circuits up to 690V AC (alternating current) and 32A.
How many poles are there?
This fuse holder has one pole.
Note
Eaton formerly known as Bussmann
