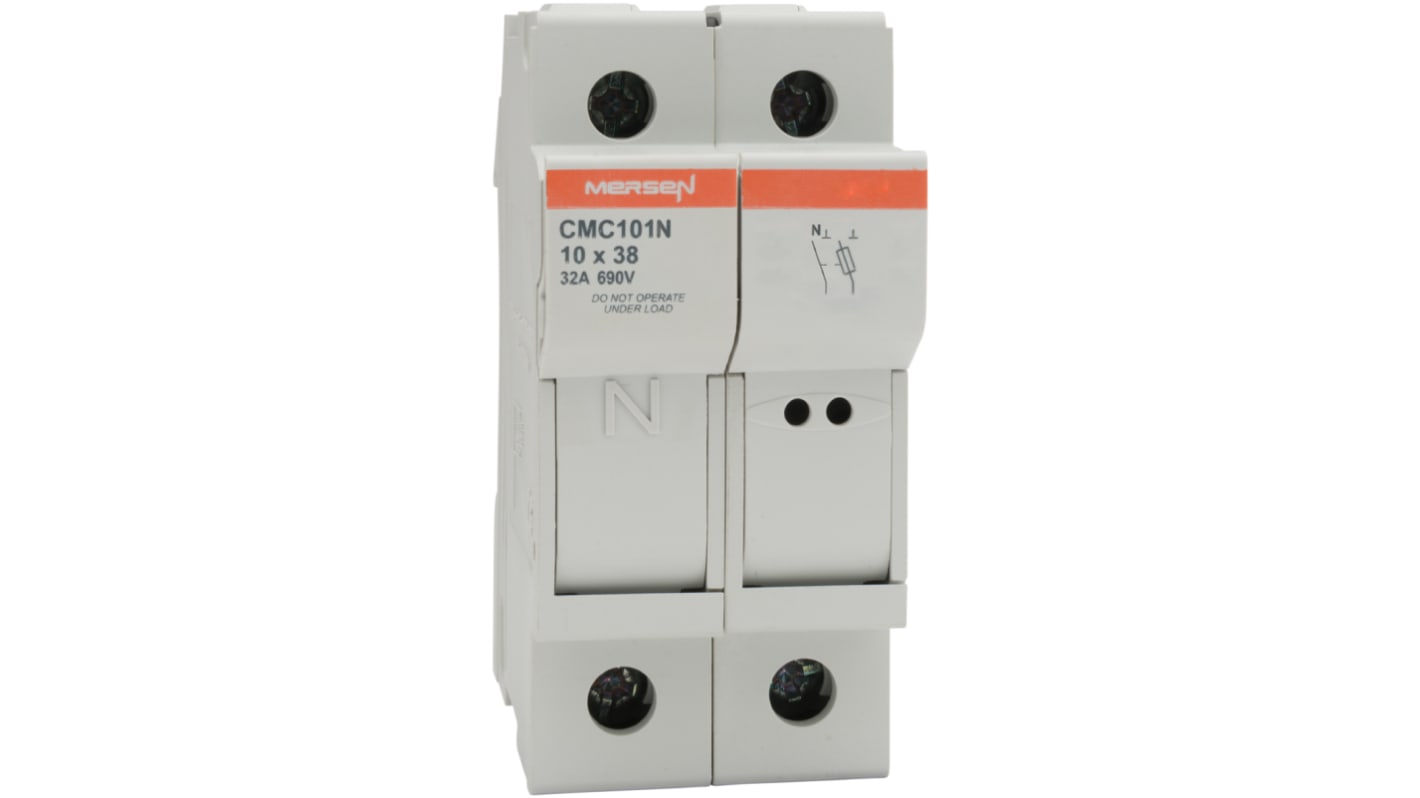

Mersen 32A Rail Mount Fuse Holder for 10 x 38 mm, 1P-Pole, 690V ac
- RS Stock No.:
- 189-5334
- Mfr. Part No.:
- G1062698 / CMC101N
- Brand:
- Mersen
Bulk discount available
Subtotal (1 unit)*
£14.74
(exc. VAT)
£17.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 13 unit(s) shipping from 13 April 2026
- Plus 30 unit(s) shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £14.74 |
| 5 - 9 | £13.63 |
| 10 + | £13.35 |
*price indicative
- RS Stock No.:
- 189-5334
- Mfr. Part No.:
- G1062698 / CMC101N
- Brand:
- Mersen
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mersen | |
| Anti Vibration | Yes | |
| Product Type | Rail Mount Fuse Holder | |
| Range | Modulostar | |
| Current Rating | 32A | |
| Voltage | 690V ac | |
| Number of Poles | 1 | |
| Rail Type | DIN 35 mm | |
| Case Material | Thermoplastic | |
| Indicator | No | |
| Compatible Fuse Size | 10 x 38 mm | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | Marine certificates pending, REACH, IEC 60269-2 and IEC 60947-3 Compliance, RoHS | |
| Series | CMC10 | |
| Select all | ||
|---|---|---|
Brand Mersen | ||
Anti Vibration Yes | ||
Product Type Rail Mount Fuse Holder | ||
Range Modulostar | ||
Current Rating 32A | ||
Voltage 690V ac | ||
Number of Poles 1 | ||
Rail Type DIN 35 mm | ||
Case Material Thermoplastic | ||
Indicator No | ||
Compatible Fuse Size 10 x 38 mm | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals Marine certificates pending, REACH, IEC 60269-2 and IEC 60947-3 Compliance, RoHS | ||
Series CMC10 | ||
The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Modulostar® range is made of tough and durable thermoplastic or thermoset material.
Applications
All circuits up to 690V for protection of motors, transformers,
low voltage distribution, control circuits, drive protection, metering
Non-load operation
