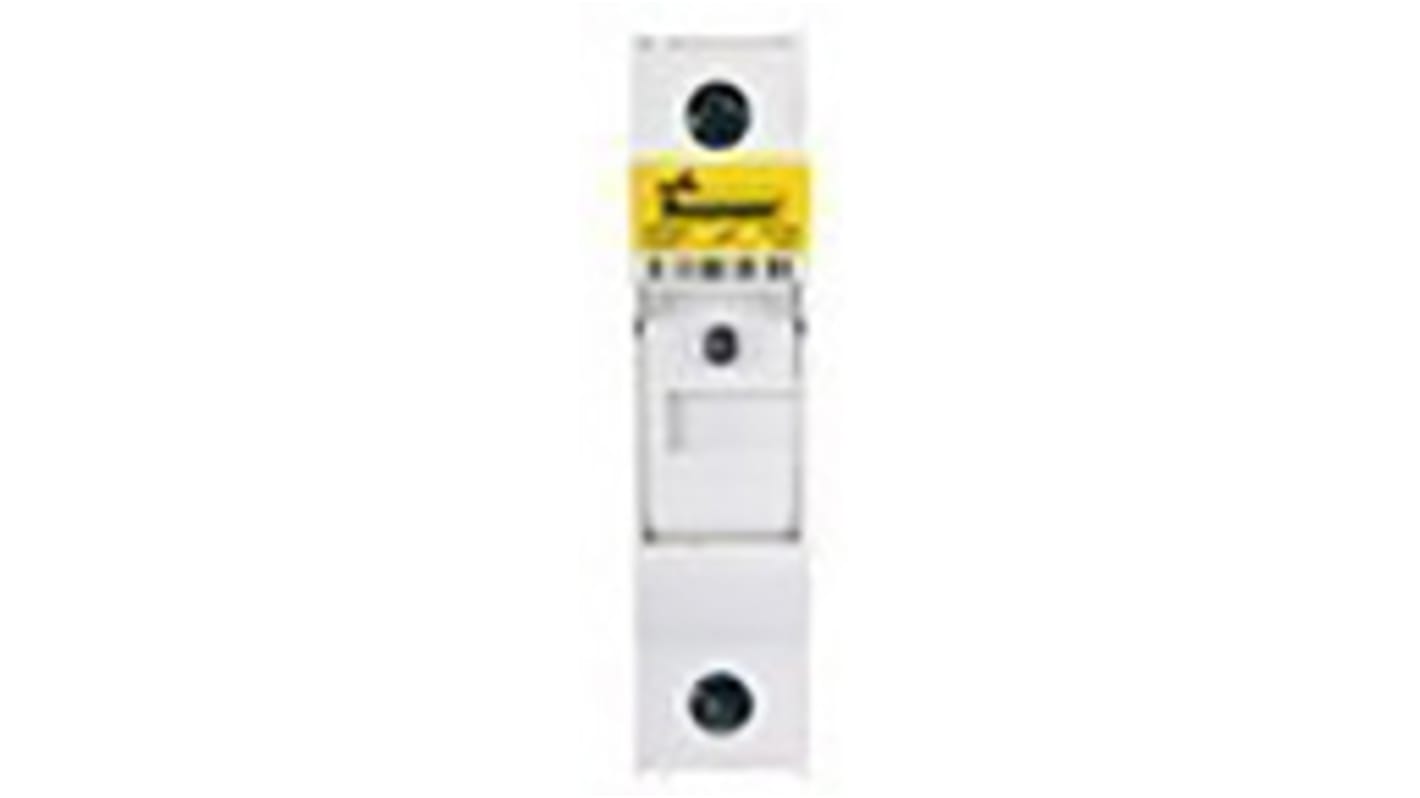

Eaton 32A Rail Mount Fuse Holder for 10 x 38mm Fuse, 2P, 1.5kV
- RS Stock No.:
- 181-8527
- Mfr. Part No.:
- CHPV2U
- Brand:
- Eaton
Subtotal (1 box of 6 units)*
£91.44
(exc. VAT)
£109.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £91.44 | £15.24 |
*price indicative
- RS Stock No.:
- 181-8527
- Mfr. Part No.:
- CHPV2U
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Fuse Holder Type | Rail Mount | |
Fuse Size | 10 x 38mm | |
Current Rating | 32A | |
Voltage Rating | 1.5kV | |
Number of Poles | 2P | |
Includes Indicator | No | |
Rail Type | DIN 35 mm | |
International Protection Rating | IP20 | |
Standards Met | CCC, CSA, IEC 60269-1, UL4248-18, UR | |
Terminal Type | Wire | |
Select all | ||
---|---|---|
Brand Eaton | ||
Fuse Holder Type Rail Mount | ||
Fuse Size 10 x 38mm | ||
Current Rating 32A | ||
Voltage Rating 1.5kV | ||
Number of Poles 2P | ||
Includes Indicator No | ||
Rail Type DIN 35 mm | ||
International Protection Rating IP20 | ||
Standards Met CCC, CSA, IEC 60269-1, UL4248-18, UR | ||
Terminal Type Wire | ||
- COO (Country of Origin):
- CN
Eaton CHPV Series Rail Mount Fuse Holder, 10 x 38 mm Fuse size, 32A Current Rating - CHPV2U
This rail mount fuse holder is designed to securely accommodate two-pole fuses, making it an essential component for electrical installations. It is crafted for 10 x 38 mm fuses with a current rating of 32A and is suitable for high voltage applications up to 1.5kV. Constructed for versatility, it is compatible with standard DIN 35mm rails and features an IP20 rating for safety in electrical settings.
Features & Benefits
• Designed for 10 x 38 mm fuses for compatibility
• Supports up to 32A for robust electrical performance
• High voltage rating of 1.5kV ensures safety under load
• Meets IEC 60269 standards for reliable operation
• Supports up to 32A for robust electrical performance
• High voltage rating of 1.5kV ensures safety under load
• Meets IEC 60269 standards for reliable operation
Applications
• Used in solar photovoltaic systems for fuse protection
• Ideal for integration in inverters for electrical safety
• Suited for use in combiner boxes for solar arrays
• Can be incorporated into PV wire harnesses for efficient wiring
• Ideal for integration in inverters for electrical safety
• Suited for use in combiner boxes for solar arrays
• Can be incorporated into PV wire harnesses for efficient wiring
How does the mounting system enhance usability?
The DIN 35mm rail compatibility allows for straightforward installation and ensures stability within electrical enclosures.
What safety features are inherent to its design?
The IP20 rating protects against solid objects, and its high voltage capabilities enhance safety in high-demand applications.
What standards does this holder conform to?
It meets IEC 60269 standards and other international regulations for dependable operation in electrical systems.
Is this holder adaptable to different environmental conditions?
Yes, it is engineered to perform efficiently under extreme ambient temperature conditions, providing reliability in variable climates.
Note
Eaton formerly known as Bussmann
