Eaton 10 A PCB Mount Fuse Holder for 5 x 20 mm, 250 V ac

Subtotal (1 pack of 5 units)*

£5.13

(exc. VAT)

£6.155

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 415 unit(s) shipping from 30 March 2026
  • Plus 215 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.026£5.13

*price indicative

RS Stock No.:
171-6798
Mfr. Part No.:
H15-V-1
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

PCB Mount Fuse Holder

Current Rating

10 A

Voltage

250 V ac

Body Material

Thermoplastic

Minimum Operating Temperature

24°C

Compatible Fuse Size

5 x 20 mm

Maximum Operating Temperature

41°C

Standards/Approvals

cULusVoltage Rating

Cap Style

Carrier, Threaded Cap

Terminal Type

Solder

Contact Material

Tin Plated, Copper

Series

H15

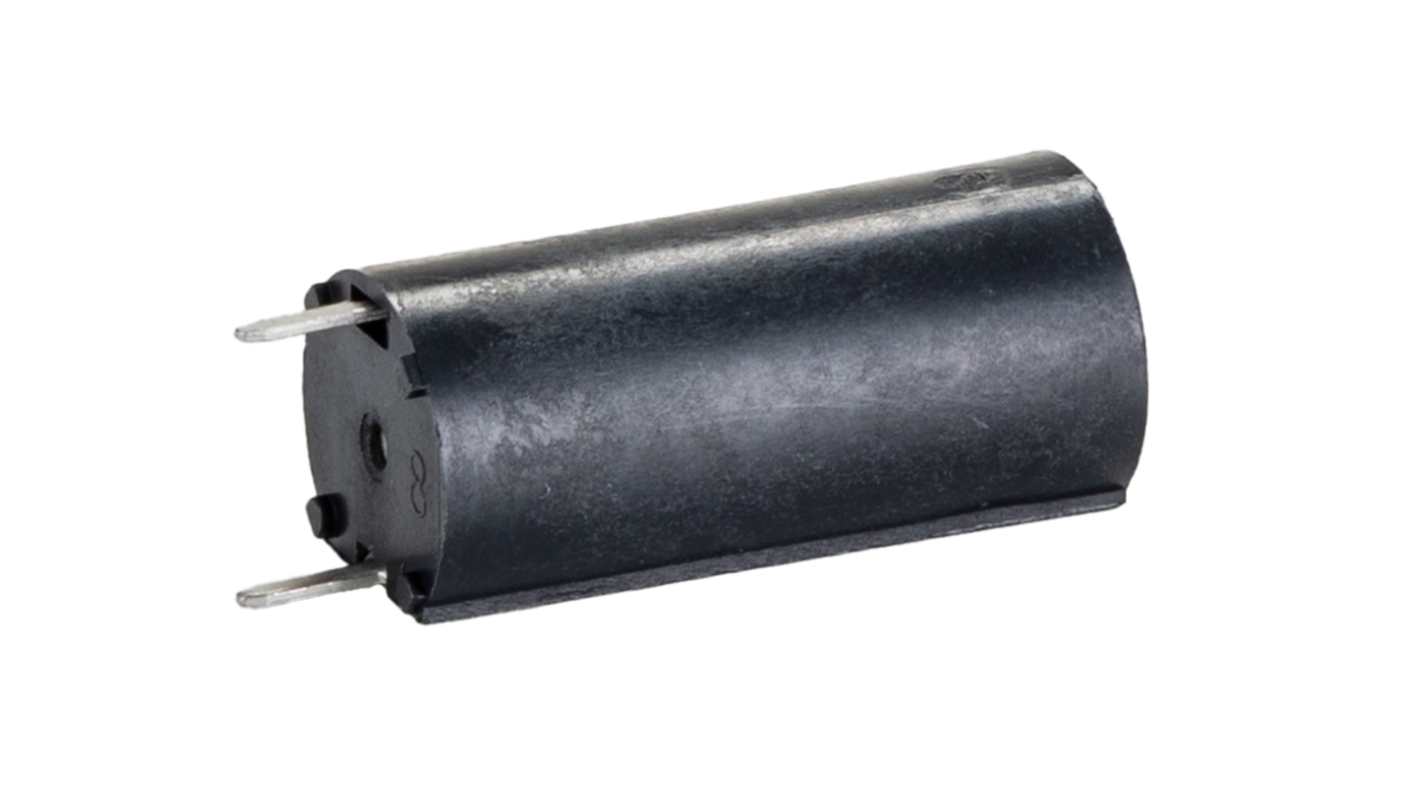

Eaton H15 Series PCB Mount Fuse Holder, 10A Current Rating, 250V AC Voltage Rating - H15-V-1


This PCB mount fuse holder is designed for use with standard 5mm x 20mm fuses. The thermoplastic fuse holder is part of the H15 series and is engineered for both vertical and horisontal mounting configurations, ensuring versatility in various applications. With a voltage rating of 250V AC and a current rating of 10A, it is suitable for reliable use in electronic and electrical systems.

Features & Benefits


• Compatible with 5mm x 20mm fuses for standard applications

• Spring-loaded bayonet type for easy fuse replacement

• Available in vertical and horisontal mounting options

• High temperature thermoplastic meets UL 94V0 standards

• cULus certified, ensuring compliance with safety regulations

• Interchangeable fuse carriers for flexibility

Applications


• Used in circuit boards for effective fuse protection

• Suitable for automation control panels

• Ideal for in the electrical and mechanical industries

• Employed in consumer electronics for reliable operation

What are the specific temperature ratings for this fuse holder?


The ambient temperature rating is 24°C, with a temperature rise of 41°C during operation, ensuring proper thermal management in applications.

How do the interchangeable fuse carriers improve usability?


The interchangeable carriers allow for quick swapping of components without the need for special tools, streamlining maintenance and enhancing system uptime.

What materials are used in the construction of this fuse holder?


The body is constructed from high-quality thermoplastic, while the terminals are copper with a tin plating for excellent conductivity.

What are the soldering specifications for installation?


The recommended soldering method is wave immersion at a maximum temperature of 260°C for no longer than 10 seconds, ensuring reliable solder connections.

Note

Eaton formerly known as Bussmann
