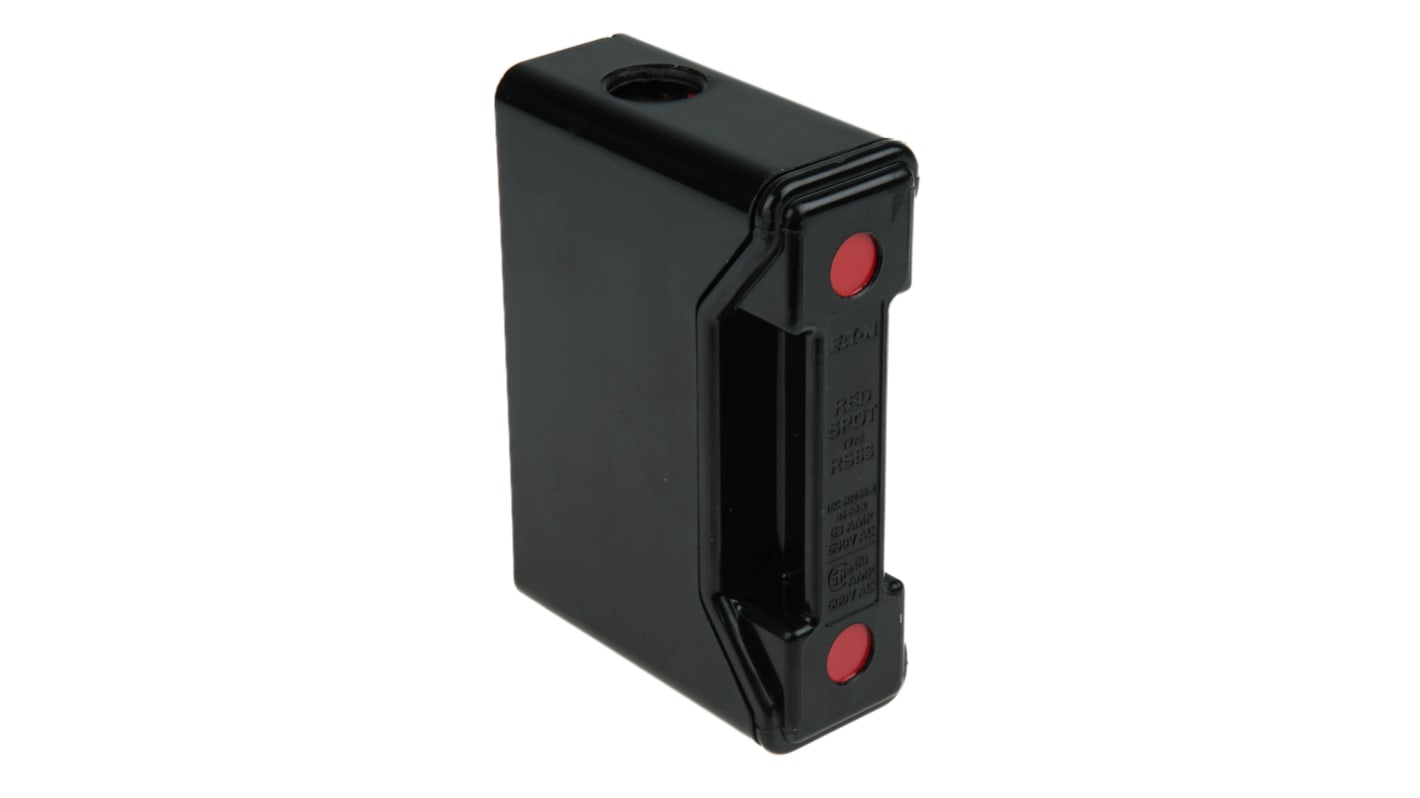

Eaton 63A Rail Mount Fuse Holder for A3 Fuse, 1P, 690V ac
- RS Stock No.:
- 413-923
- Mfr. Part No.:
- RS63H
- Brand:
- Eaton
View all Fuse Holders
63 In stock - FREE next working day delivery available
Price Each
£26.16
(exc. VAT)
£31.39
(inc. VAT)
Units | Per unit |
1 - 9 | £26.16 |
10 - 49 | £22.11 |
50 - 99 | £19.02 |
100 - 249 | £16.98 |
250 + | £15.98 |
- RS Stock No.:
- 413-923
- Mfr. Part No.:
- RS63H
- Brand:
- Eaton
RoHS Status: Not Applicable
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Eaton Bussmann Series Fuse Holders - Red Spot Fuse Holder Range
This range of Red Spot fuse holders are also known as finger-safe fuse holders, originally created and designed to be used with BS88 fuses. These types of fuse holders will predominantly be found within industrial and commercial environments. The rail mount fuse holders contain fuses that are slotted into sets with metal contacts.
Features & Benefits
Red Spot range of fuse holders are industry standard for protecting utility and industrial installations
Anti-vibration and the large contact system ensures a perfect carrier contact alignment and superior electrical contact
Each conductor insulating sleeve help to prevent inadvertent contact at the entry point whilst fully shrouded terminals deliver an IP20 rating. (Holding an IP20 rating means that the fuse holder has ingress protection against solid objects up to 12 mm - such as a person's finger and no protection against liquids)
The parts are moulded, constructed from flame-retardant, non-hygroscopic, high dielectric strength phenolic material
Red Spot fuse holders range offers a multitude of different accessories and Bussman fuses
Designed to protect applications from potentially devastating effects of low, short circuits and overvoltage conditions
Compatible with standard and motor rated fuses
Taper shank fuse fixing screws ensure easy re-entry
Large fuse carriers contact areas for low resistance and longer life
Full shrouded construction
Anti-vibration and the large contact system ensures a perfect carrier contact alignment and superior electrical contact
Each conductor insulating sleeve help to prevent inadvertent contact at the entry point whilst fully shrouded terminals deliver an IP20 rating. (Holding an IP20 rating means that the fuse holder has ingress protection against solid objects up to 12 mm - such as a person's finger and no protection against liquids)
The parts are moulded, constructed from flame-retardant, non-hygroscopic, high dielectric strength phenolic material
Red Spot fuse holders range offers a multitude of different accessories and Bussman fuses
Designed to protect applications from potentially devastating effects of low, short circuits and overvoltage conditions
Compatible with standard and motor rated fuses
Taper shank fuse fixing screws ensure easy re-entry
Large fuse carriers contact areas for low resistance and longer life
Full shrouded construction
What are fuse holders used for?
One of the main functions of a rail mount fuse holder is to offer circuit protection, it is to also offer protection to both the user and the equipment in the event of a circuit overload within any given application.
Note: Essential extra adapter is stock no. 414-213
Eaton Rail Mount Fuse Holder, A3 Fuse Size, 63A RS63H
Insert your fuse into this Eaton fuse holder to secure it in place on your DIN rail. This component acts as a convenient access unit any time you need to replace a fuse. It also protects the delicate fuse system from exposure and external tampering. You can integrate the rail mount fuse holder into your power control units and circuits to protect them from the damaging effects of short circuits and overvoltage. It's suitable for fuse systems in domestic and low-level commercial electrical applications.
Anti-vibration system allows for better contact positioning and current flow
Housed in phenolic casing for insulation and resistance to fire and moisture
IP20 (ingress protection) indicates protection to ensure accidental physical contact doesn't affect fuse performance
A3 fuse size for standard use
Housed in phenolic casing for insulation and resistance to fire and moisture
IP20 (ingress protection) indicates protection to ensure accidental physical contact doesn't affect fuse performance
A3 fuse size for standard use
What's the function of the contacts in this Eaton fuse holder?
The contacts directly interact with the fuse and distribute current. This Eaton fuse holder has a large contact relay system for perfect carrier contact alignment and low resistance, meaning it transmits current quickly and effectively.
Note
Eaton formerly known as Bussmann
Specifications
Attribute | Value |
Anti Vibration | Yes |
Fuse Holder Type | Rail Mount |
Fuse Size | A3 |
Current Rating | 63A |
Voltage Rating | 690V ac |
Number of Poles | 1P |
Rail Type | DIN 35 mm |
Series | Bussmann |
Cap Style | Manual |
Compatible Fuse Sizes | A3 |
International Protection Rating | IP20 |
Gauge Piece Colour | Black |
Terminal Type | Front Connected |
