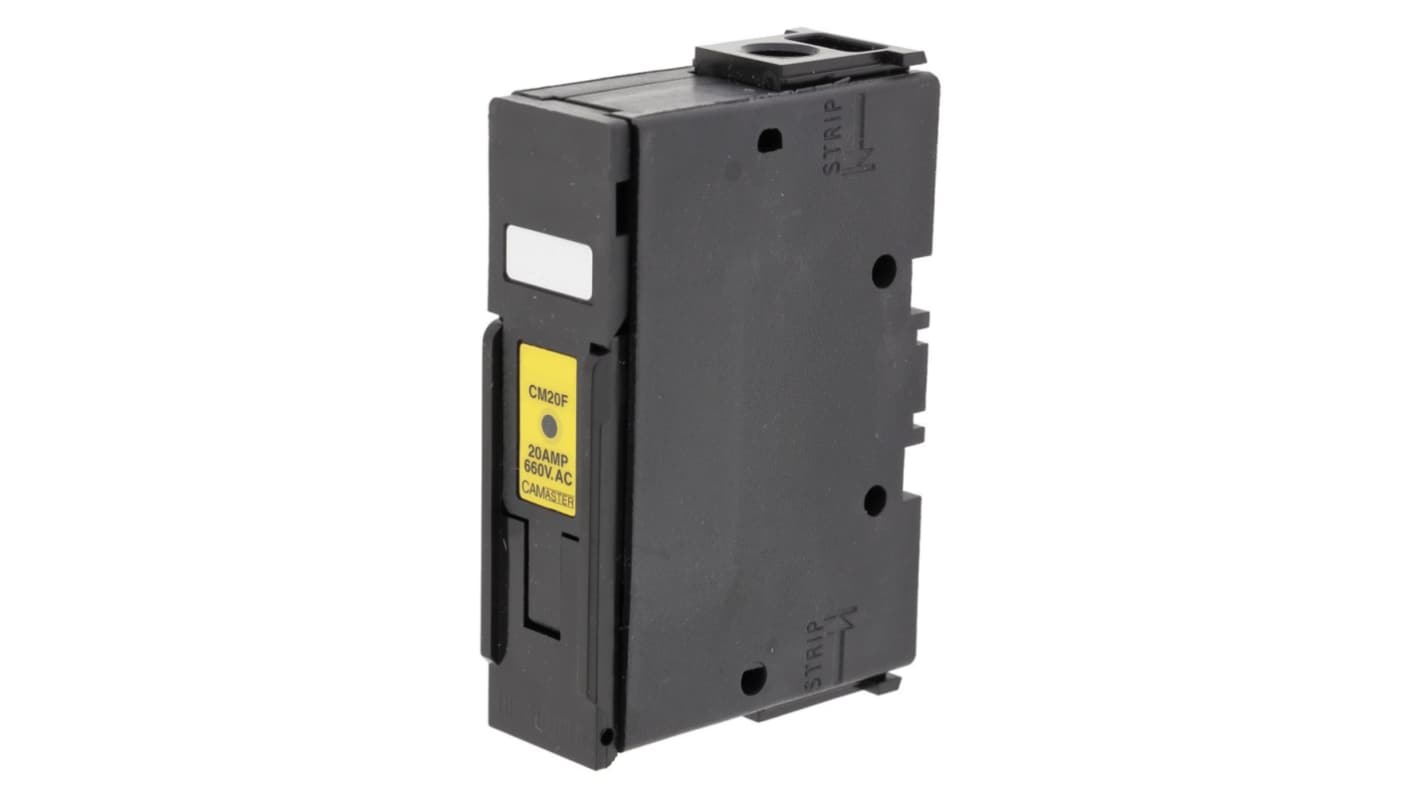

Eaton 20 A Fuse Holder for 60 x 93.7 x 25.4 mm, 1P-Pole, 690V
- RS Stock No.:
- 229-023
- Mfr. Part No.:
- CM20F CAMASTER ADAPTABLE TO FB/BB 20A 660V
- Brand:
- Eaton
Subtotal (1 pack of 10 units)*
£377.43
(exc. VAT)
£452.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £377.43 | £37.743 |
*price indicative
- RS Stock No.:
- 229-023
- Mfr. Part No.:
- CM20F CAMASTER ADAPTABLE TO FB/BB 20A 660V
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Fuse Holder | |
| Range | Bussmann | |
| Current Rating | 20 A | |
| Voltage | 690V | |
| Number of Poles | 1 | |
| Rail Type | DIN Rail | |
| Compatible Fuse Size | 60 x 93.7 x 25.4 mm | |
| Standards/Approvals | RoHS and CE | |
| Series | Eaton Bussmann | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Fuse Holder | ||
Range Bussmann | ||
Current Rating 20 A | ||
Voltage 690V | ||
Number of Poles 1 | ||
Rail Type DIN Rail | ||
Compatible Fuse Size 60 x 93.7 x 25.4 mm | ||
Standards/Approvals RoHS and CE | ||
Series Eaton Bussmann | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
Eaton Fuse Holder, 20A Current Rating, 690V Voltage - CM20F CAMASTER ADAPTABLE TO FB/BB 20A 660V
This fuse holder provides a DIN-rail mounted solution for securing and connecting cartridge fuses in industrial control and distribution panels. It is designed for single-pole installations where a compact, front-wirable unit is required to integrate fusible protection into electrical systems operating at elevated voltages.
Features & Benefits
• Rated for 20A operation and supports higher-current circuit protection
• Compatible with 690V systems to suit high-voltage electrical installations
• Front-connected terminals for straightforward wiring and maintenance
• Single-pole construction to simplify circuit segregation and layout
• Compatible with 690V systems to suit high-voltage electrical installations
• Front-connected terminals for straightforward wiring and maintenance
• Single-pole construction to simplify circuit segregation and layout
Applications
• Suitable for motor control panels requiring single-pole fuse protection
• Ideal for distribution boards in factory automation installations
• Used with power conversion equipment operating near 690V
• Can be used for protective circuits in electrical maintenance rigs
• Suitable for replacing or upgrading holders for FB and BB style fuses
• Ideal for distribution boards in factory automation installations
• Used with power conversion equipment operating near 690V
• Can be used for protective circuits in electrical maintenance rigs
• Suitable for replacing or upgrading holders for FB and BB style fuses
What fuse envelope will fit into the holder?
It accepts cartridge fuses with a rectangular envelope measuring 60 x 93.7 x 25.4 mm.
How is the device mounted within an electrical enclosure?
It is designed for secure attachment to standard DIN rails for modular panel layout.
Can it be used in multi-pole configurations?
The unit is a single-pole device
multi-pole requirements should be met by installing multiple single-pole units side by side.
Which Terminal orientation does it use for incoming and outgoing conductors?
The terminals are located at the front to allow direct front wiring access during installation.
