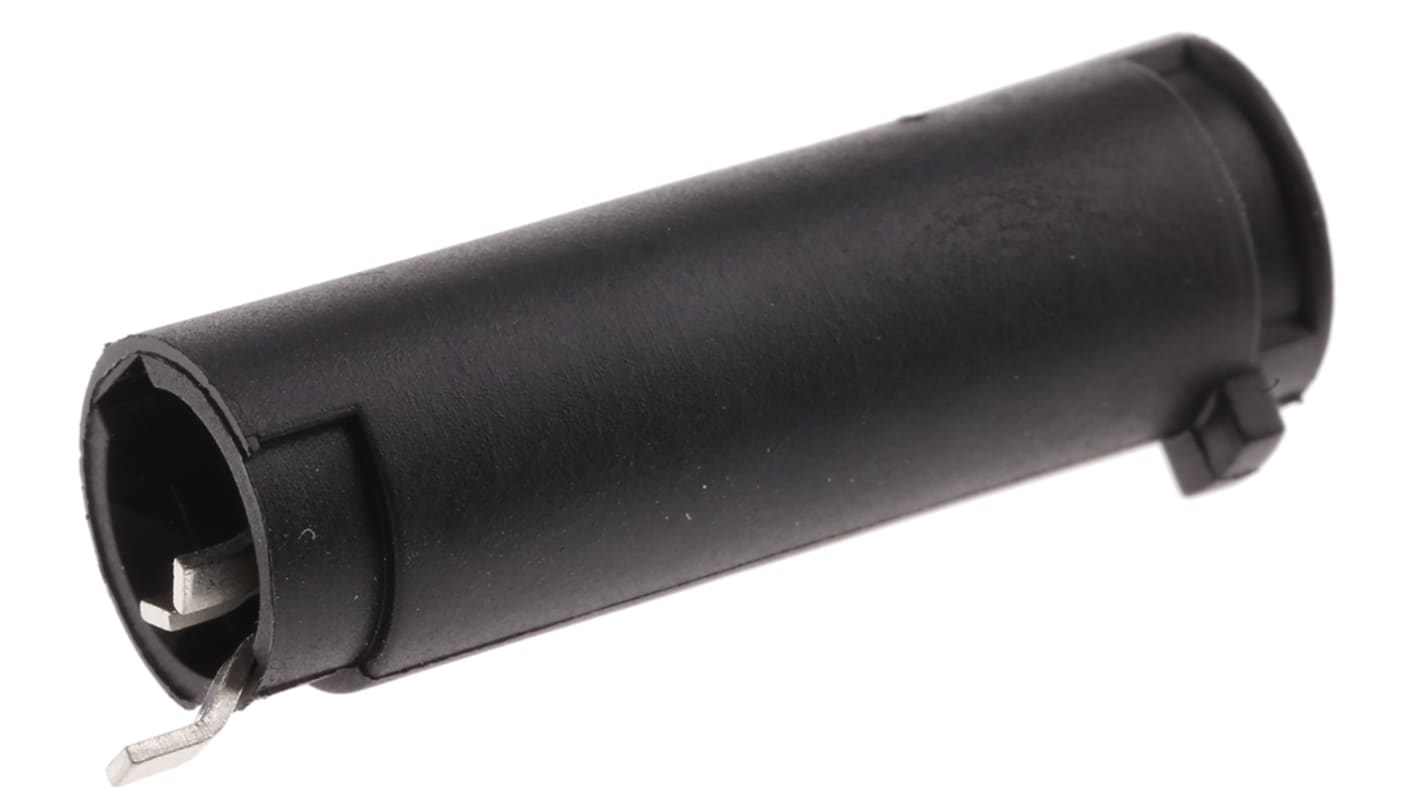

Littelfuse Polyamide PCB Mount Fuse Holder Cover for 5 x 20mm Fuse, IP40

  • RS Stock No. 769-0161
  • Mfr. Part No. 81500000005
  • Brand Littelfuse
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Littelfuse Fuseholders and Clips - 6.35x32mm

Littelfuse fuseholders and clips offer a comprehensive solution to a variety of application requirements. Littlefuse fuse holders offer protection for electrical circuits when used in conjunction with a 6.35x32mm fuse.

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.

Specifications
Attribute Value
Fuse Holder Type Panel Mount
Fuse Size 5 x 20mm
Height 34mm
Cover Material Polyamide
International Protection Rating IP40
Dimensions 9.2 (Dia.) x 34mm
360 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 1.01
(exc. VAT)
£ 1.21
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£1.01
£5.05
25 - 45
£0.956
£4.78
50 - 120
£0.91
£4.55
125 - 245
£0.86
£4.30
250 +
£0.806
£4.03
*price indicative
