Keysight Technologies 33520B Function Generator, 1μHz Min, 30MHz Max, FM Modulation, Variable Sweep - RS Calibration
- RS Stock No.:
- 761-1051
- Mfr. Part No.:
- 33520B
- Brand:
- Keysight Technologies

Specifications |
---|
Series:33500B |
Model Number:33520B |
Calibrated:RSCAL |
Digital Frequency:Yes |
Maximum Frequency Range Sinewave:30MHz |
View datasheets |
Available to back order for despatch 08/02/2024
Price Each
£3,533.50
(exc. VAT)
£4,240.20
(inc. VAT)
Units | Per unit |
1 + | £3,533.50 |
- RS Stock No.:
- 761-1051
- Mfr. Part No.:
- 33520B
- Brand:
- Keysight Technologies
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

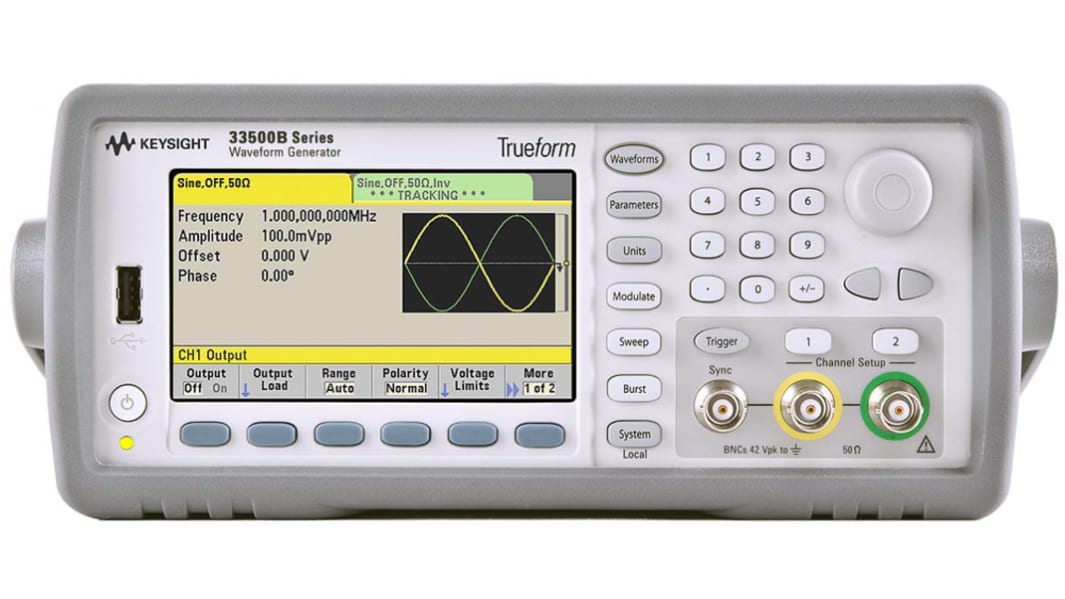

Keysight 33500B Series Waveform Generators
Keysight 33500B Series waveform generators incorporate Trueform signal-generation technology, which combines the best of direct digital synthesis (DDS) and point-by-point architectures. It delivers increased performance at a price associated with DDS only. The 33500B models offer lower jitter and lower harmonic distortion than alternative instruments in the same class.
The jitter performance gives users the ability to place edges more accurately, helping reduce timing errors in circuit designs. Total harmonic distortion is less than 0.04% and non-harmonic spurs are less than 75dBc. This means clean signals that do not introduce noise, giving users greater accuracy. The jitter rate, together with 8.4ns rise and fall times, enables users to set trigger points more accurately. The 16 bit resolution of the 33500B models facilitates output changes down to 1uV, providing users with the ability to test low-voltage circuits and designs.
The jitter performance gives users the ability to place edges more accurately, helping reduce timing errors in circuit designs. Total harmonic distortion is less than 0.04% and non-harmonic spurs are less than 75dBc. This means clean signals that do not introduce noise, giving users greater accuracy. The jitter rate, together with 8.4ns rise and fall times, enables users to set trigger points more accurately. The 16 bit resolution of the 33500B models facilitates output changes down to 1uV, providing users with the ability to test low-voltage circuits and designs.
Waveform summing and combining capability
Variable-bandwidth noise
Waveform sequencing
Pseudo-random binary sequence pattern generation
Variable-bandwidth noise
Waveform sequencing
Pseudo-random binary sequence pattern generation
Keysight Technologies Function Generator, 2 Channels, 40ps Edge Jitter - 33500B Series - 33520B
Looking for a testing element that generates high-quality signals with minimal noise? Choose this waveform generator from Keysight Technologies. It has a typical crosstalk of less than -85dB to reduce the risk of interference. Thanks to its maximum edge jitter of just 40ps, it allows you to place edges accurately to minimise the risk of timing errors when setting trigger points. Thanks to its built-in Ethernet, LAN, USB and GPIB ports, it connects to other devices with ease.
Features & Benefits
Bandwidth of 30MHz for use in heavy-duty applications
Wide operating temperature range between 0°C and +55°C for use in tough conditions
Low total harmonic distortion of 0.04% ensures good signal integrity
Compact dimensions of 88.3 (height) x 212.8 (width) x 272.3mm (depth) for ease of handling
Wide operating temperature range between 0°C and +55°C for use in tough conditions
Low total harmonic distortion of 0.04% ensures good signal integrity
Compact dimensions of 88.3 (height) x 212.8 (width) x 272.3mm (depth) for ease of handling
Applications
PCB manufacturing industry
Instrumentation and control
Robotics and automation
Instrumentation and control
Robotics and automation
What types of modulation are available on this device?
This device has a wide range of modulation types to choose from, including AM, FM, PM, FSK, BPSK and PWM. This makes it a highly versatile choice.
Specifications
Attribute | Value |
Series | 33500B |
Model Number | 33520B |
Calibrated | RSCAL |
Digital Frequency | Yes |
Maximum Frequency Range Sinewave | 30MHz |
Minimum Frequency Range Sinewave | 1µHz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 30MHz |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz |
Maximum Frequency Range Triangle/Saw | 20kHz |
Minimum Frequency Range Triangle/Saw | 1µHz |
Digital Amplitude and Offset | Yes |
Internal Linear and Log Sweep | Yes |
Variable Sweep | Yes |
Internal and External Amplitude Modulation | Yes |
FM Modulation | Yes |
Time Base Accuracy | ±0.1ppm |
Input Impedance | 5 kΩ |
Height | 88.3mm |
Minimum Operating Temperature | 0°C |
Output Impedance | 50Ω |
Length | 272.3mm |
Width | 212.8mm |
Interface Type | Ethernet, GPIB, LAN, USB |
Dimensions | 272.3 x 212.8 x 88.3mm |
Weight | 3.3kg |
Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 30 MHz |
Output Amplitude | 20V Pk-Pk |
Maximum Operating Temperature | +55°C |
