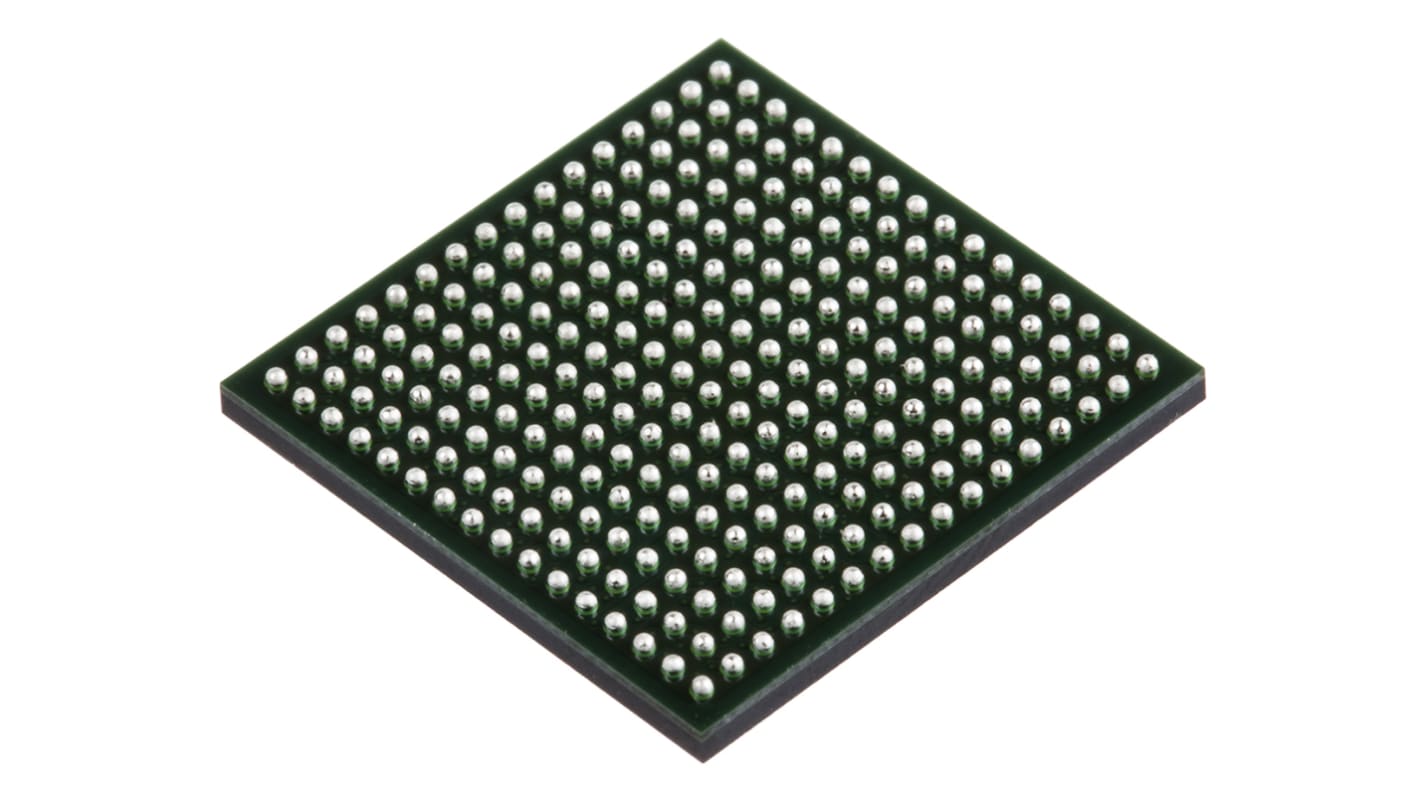

Altera FPGA EP2C5F256I8N, Cyclone II 4608 Cells, 120000 Gates, 4608 Blocks, 256-Pin FBGA
- RS Stock No.:
- 169-5519
- Mfr. Part No.:
- EP2C5F256I8N
- Brand:
- Altera
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 169-5519
- Mfr. Part No.:
- EP2C5F256I8N
- Brand:
- Altera
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Altera | |
| Family Name | Cyclone II | |
| Number of Logic Gates | 120000 | |
| Number of Logic Cells | 4608 | |
| Number of Logic Units | 4608 | |
| Number of Multipliers | 13 (18 x 18) | |
| Mounting Type | Surface Mount | |
| Package Type | FBGA | |
| Pin Count | 256 | |
| Dimensions | 17 x 17 x 1.05mm | |
| Height | 1.05mm | |
| Length | 17mm | |
| Width | 17mm | |
| Minimum Operating Supply Voltage | 1.15 V | |
| Maximum Operating Temperature | +100 °C | |
| Maximum Operating Supply Voltage | 1.25 V | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Altera | ||
Family Name Cyclone II | ||
Number of Logic Gates 120000 | ||
Number of Logic Cells 4608 | ||
Number of Logic Units 4608 | ||
Number of Multipliers 13 (18 x 18) | ||
Mounting Type Surface Mount | ||
Package Type FBGA | ||
Pin Count 256 | ||
Dimensions 17 x 17 x 1.05mm | ||
Height 1.05mm | ||
Length 17mm | ||
Width 17mm | ||
Minimum Operating Supply Voltage 1.15 V | ||
Maximum Operating Temperature +100 °C | ||
Maximum Operating Supply Voltage 1.25 V | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- KR
Cyclone FPGA, Altera
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
