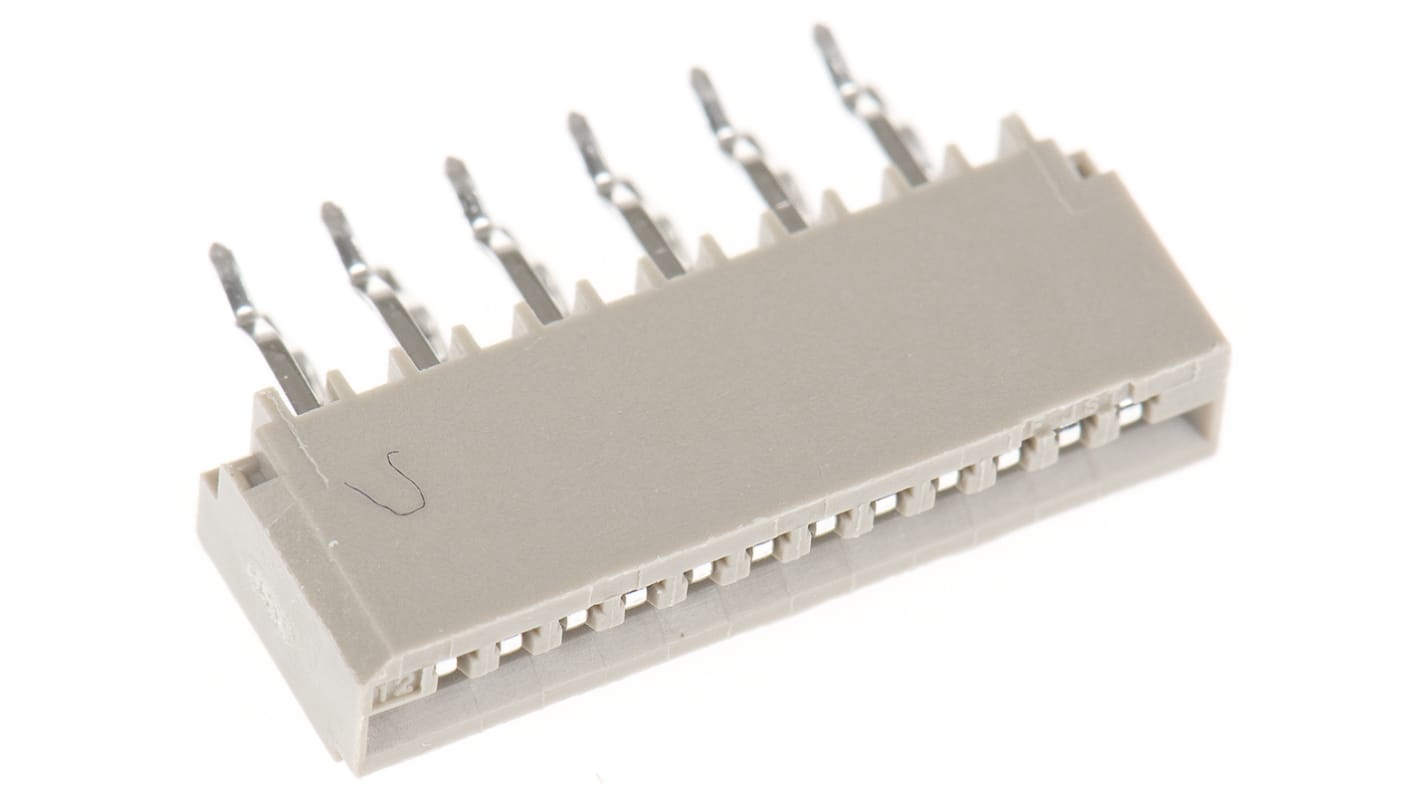

JST 1mm Pitch 12 Way Straight Female FPC Connector, Top Entry

  • RS Stock No. 515-1484
  • Mfr. Part No. 12FMN-BTK-A (LF)(SN)
  • Brand JST
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Top Entry FFC Connectors - JST FMN Series

FMN Series of PCB connectors suitable for accepting FFC cable on a 1mm pitch. Circuits are staggered on a 1mm pitch with 2mm between each row. Recommended PCB hole dia 0.75mm.

Note

For FCC Cable assemblies see stock number 352-3342 typical.

//media.rs-online.com/t_line/L361643-01.gif

1.0mm FFC

Specifications
Attribute Value
Number of Contacts 12
Contact Material Phosphor Bronze
Pitch 1mm
Mounting Type Through Hole
Gender Female
Termination Type Top Entry
Body Orientation Straight
Current Rating 500mA
Voltage Rating 50 V dc
Number of Rows 1
Contact Plating Tin over Copper
Minimum Operating Temperature -25°C
Termination Method Solder
Maximum Operating Temperature +85°C
Housing Material PBT
