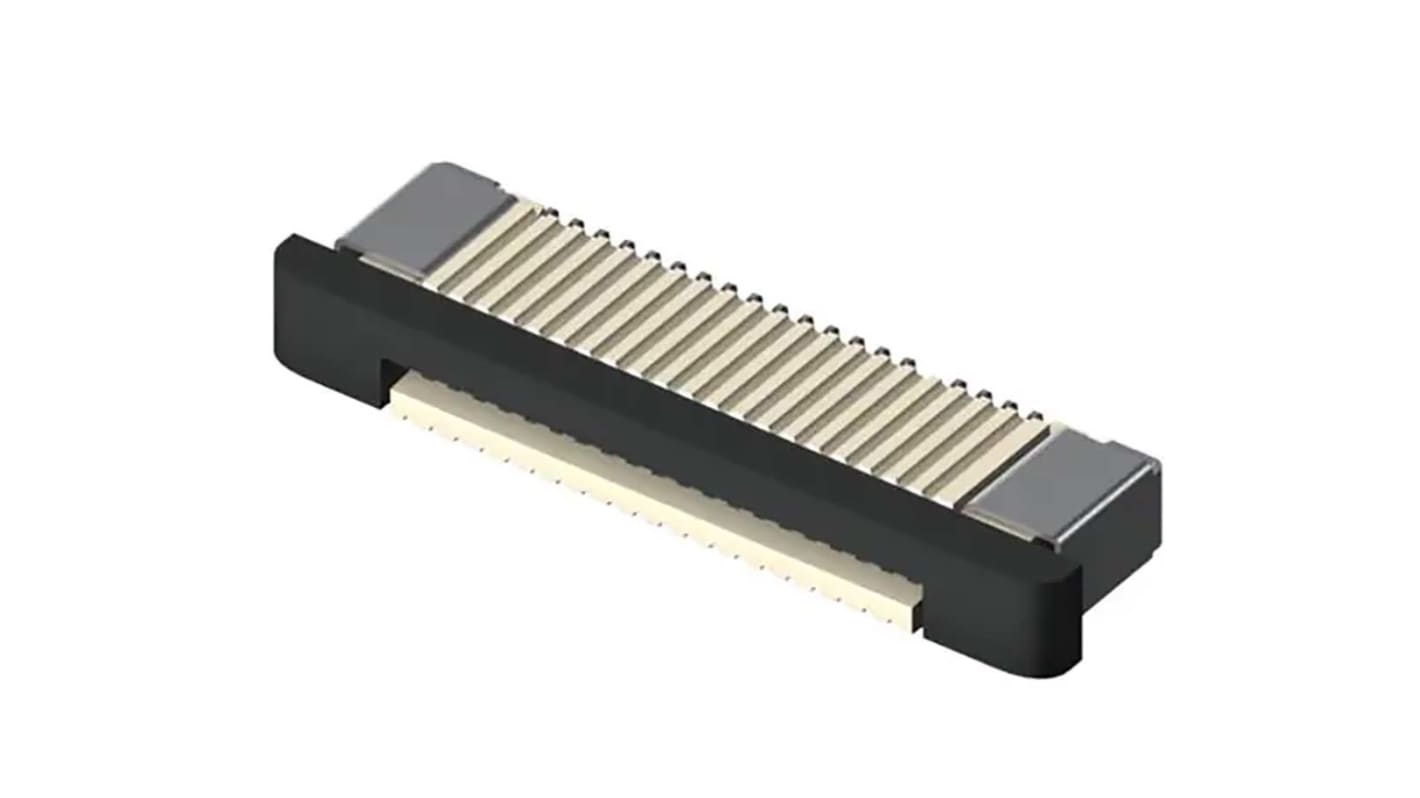

Samtec, ZF1 Horizontal Female Edge Connector, Solder
- RS Stock No.:
- 200-0014
- Mfr. Part No.:
- ZF5S-50-01-T-WT
- Brand:
- Samtec
Subtotal (1 pack of 2 units)*
£6.84
(exc. VAT)
£8.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £3.42 | £6.84 |
*price indicative
- RS Stock No.:
- 200-0014
- Mfr. Part No.:
- ZF5S-50-01-T-WT
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Contact Material | Phosphor Bronze | |
| Mounting Type | Surface Mount | |
| Gender | Female | |
| Termination Type | Solder | |
| Body Orientation | Horizontal | |
| Series | ZF1 | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Contact Material Phosphor Bronze | ||
Mounting Type Surface Mount | ||
Gender Female | ||
Termination Type Solder | ||
Body Orientation Horizontal | ||
Series ZF1 | ||
2
The Samtec ZF5S series is 0.50 mm zero insertion force FFC connector. The insulation material is Natural LCP whereas the contact material and the weld tab is Phosphor Bronze. It has a current rating of 1.8 A per pin (1 pin powered). The operating range is between -55 °C to +105 °C.
Horizontal orientation
Surface mount
RoHS compliant
Surface mount
RoHS compliant
