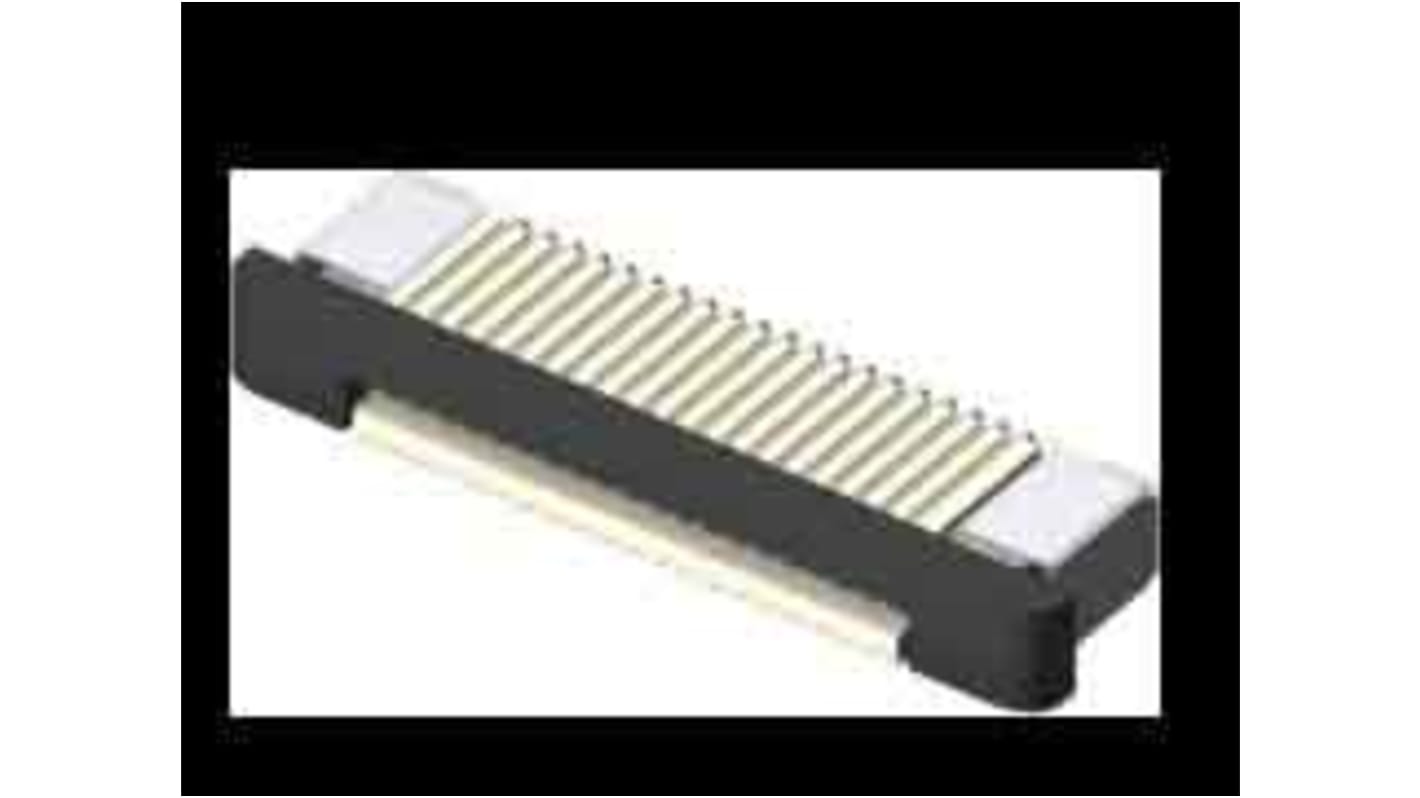

Samtec, ZF5S 0.5 mm Pitch 15 Way Horizontal Female FPC Connector, Solder
- RS Stock No.:
- 180-5017
- Mfr. Part No.:
- ZF5S-15-01-T-WT
- Brand:
- Samtec
Bulk discount available
Subtotal (1 pack of 5 units)*
£9.79
(exc. VAT)
£11.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.958 | £9.79 |
| 25 - 45 | £1.638 | £8.19 |
| 50 - 95 | £1.512 | £7.56 |
| 100 - 245 | £1.41 | £7.05 |
| 250 + | £1.316 | £6.58 |
*price indicative
- RS Stock No.:
- 180-5017
- Mfr. Part No.:
- ZF5S-15-01-T-WT
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | FPC Connector | |
| Number of Contacts | 15 | |
| Sub Type | FFC | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Current | 1.8A | |
| Mount Type | Surface Mount | |
| Connector Gender | Female | |
| Contact Position | Bottom | |
| Termination Type | Solder | |
| Orientation | Horizontal | |
| Insertion Force | ZIF | |
| Minimum Operating Temperature | -55°C | |
| Series | ZF5S | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Number of Rows | 1 | |
| Standards/Approvals | No | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type FPC Connector | ||
Number of Contacts 15 | ||
Sub Type FFC | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Current 1.8A | ||
Mount Type Surface Mount | ||
Connector Gender Female | ||
Contact Position Bottom | ||
Termination Type Solder | ||
Orientation Horizontal | ||
Insertion Force ZIF | ||
Minimum Operating Temperature -55°C | ||
Series ZF5S | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Number of Rows 1 | ||
Standards/Approvals No | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
Horizontal orientation
Surface mount
