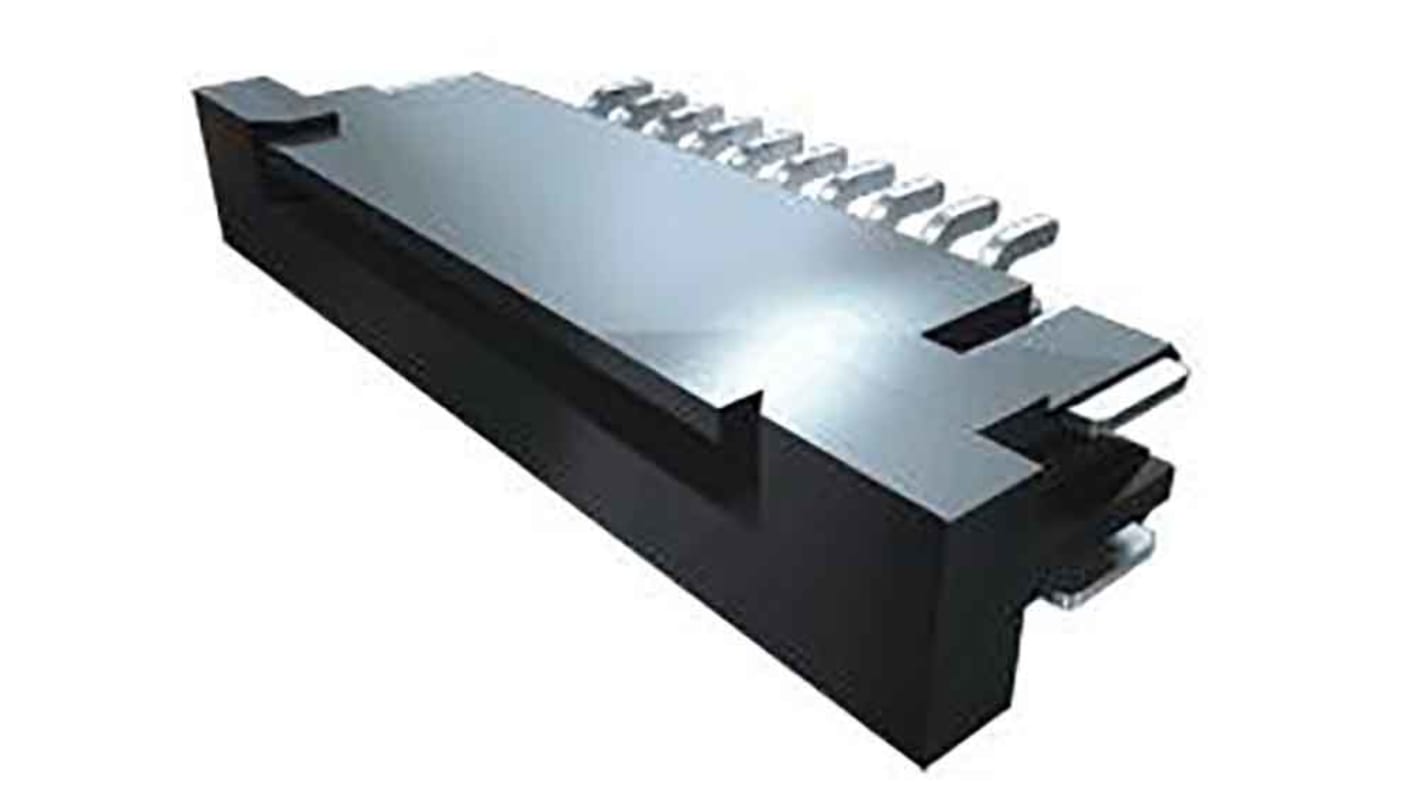

Samtec, ZF1 1mm Pitch 15 Way Horizontal Female FPC Connector, Solder
- RS Stock No.:
- 180-1783
- Mfr. Part No.:
- ZF1-15-01-T-WT
- Brand:
- Samtec
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.86
(exc. VAT)
£9.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 999,999,975 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.572 | £7.86 |
| 25 - 45 | £1.302 | £6.51 |
| 50 - 95 | £1.20 | £6.00 |
| 100 - 245 | £1.108 | £5.54 |
| 250 + | £1.034 | £5.17 |
*price indicative
- RS Stock No.:
- 180-1783
- Mfr. Part No.:
- ZF1-15-01-T-WT
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 15 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 1mm | |
| Mounting Type | Surface Mount | |
| Gender | Female | |
| Termination Type | Solder | |
| Contact Position | Bottom | |
| Body Orientation | Horizontal | |
| Insertion Force | ZIF | |
| Series | ZF1 | |
| Number of Rows | 1 | |
| Termination Method | Solder | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 15 | ||
Contact Material Phosphor Bronze | ||
Pitch 1mm | ||
Mounting Type Surface Mount | ||
Gender Female | ||
Termination Type Solder | ||
Contact Position Bottom | ||
Body Orientation Horizontal | ||
Insertion Force ZIF | ||
Series ZF1 | ||
Number of Rows 1 | ||
Termination Method Solder | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CN
Horizontal orientation
Surface mount
Surface mount
