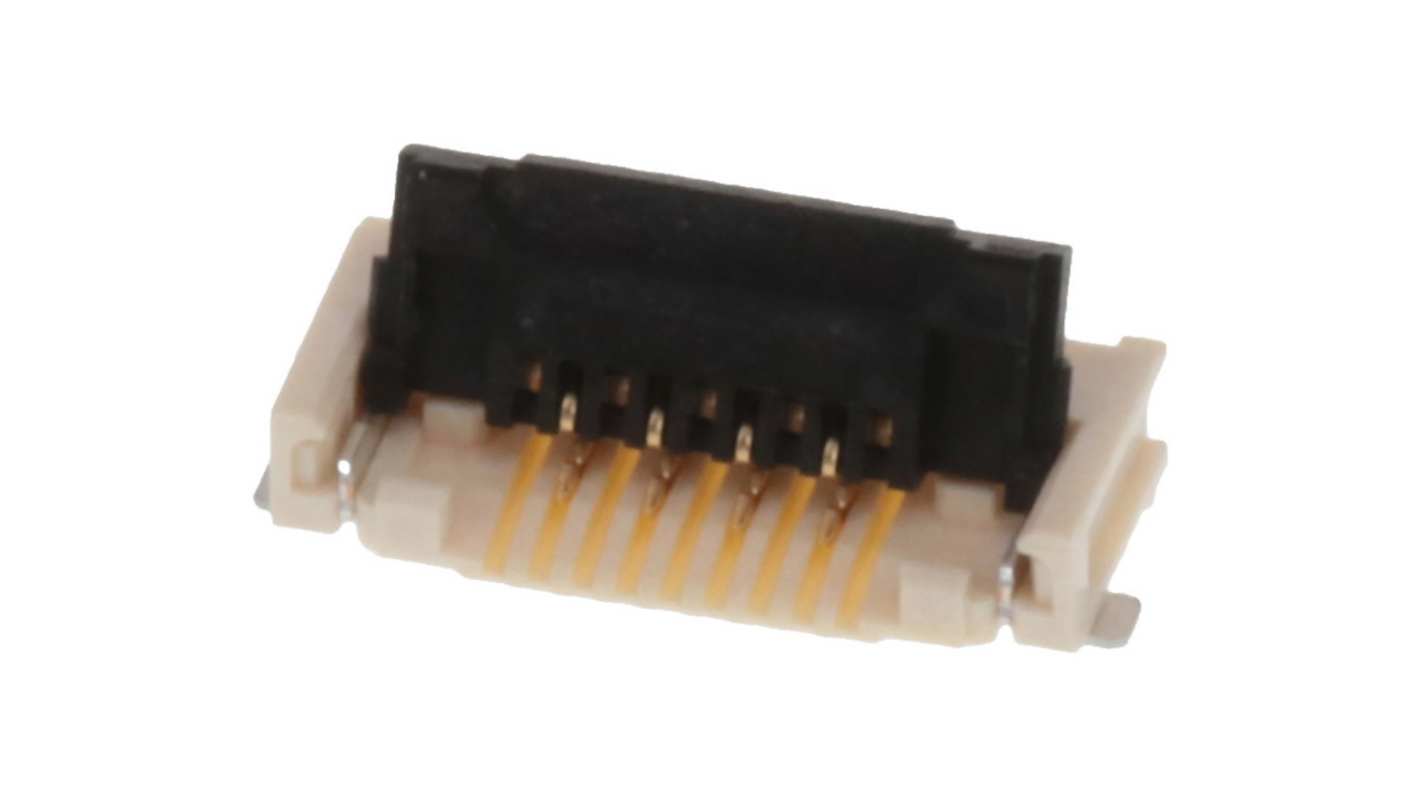

Molex, 2005, 200528-0181 1mm Pitch 18 Way Right Angle FPC Connector, Bottom Contact

View all FPC Connectors

Subtotal (1 reel of 3000 units)*

£6,559.82

(exc. VAT)

£7,871.78

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Reel(s)
Per Reel
Per unit*
1 +£6,559.82£2.187

*price indicative

RS Stock No.:
683-852
Mfr. Part No.:
200528-0181
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Number of Contacts

18

Contact Material

Copper Alloy

Pitch

1mm

Mounting Type

Surface Mount

Termination Type

Bottom Contact

Body Orientation

Right Angle

Series

2005

Series Number

200528-0181

COO (Country of Origin):
VN
The Molex easy-on FFC/FPC connector designed for seamless integration in high-density applications, featuring a 1.00mm pitch for efficient space utilisation. With a right-angle orientation and bottom contact positioning, this connector provides robust connectivity with a maximum height of just 1.90mm. The easy-on series excels in harsh environments, operating efficiently at temperatures up to 150°C. Its durable construction includes a copper alloy for the metal component, with gold plating ensuring excellent conductivity and corrosion resistance. Ideal for a variety of uses, this connector enhances device reliability while maintaining a low profile, making it an essential choice for modern electronic designs.

Right angle configuration facilitates easy installation in tight spaces
Bottom contact design ensures reliable connectivity and optimal performance
Durability rated for 20 mating cycles ensures long lasting connections
Embossed tape on reel packaging simplifies assembly processes
Liquid crystal polymer resin enhances thermal stability and electrical performance
Gold plated contacts provide superior conductivity and resistance to tarnishing
