Molex, 502598-2593 0.3 mm Pitch 25 Way Right Angle Female FPC Connector, Surface Mount
- RS Stock No.:
- 505-846
- Mfr. Part No.:
- 502598-2593
- Brand:
- Molex

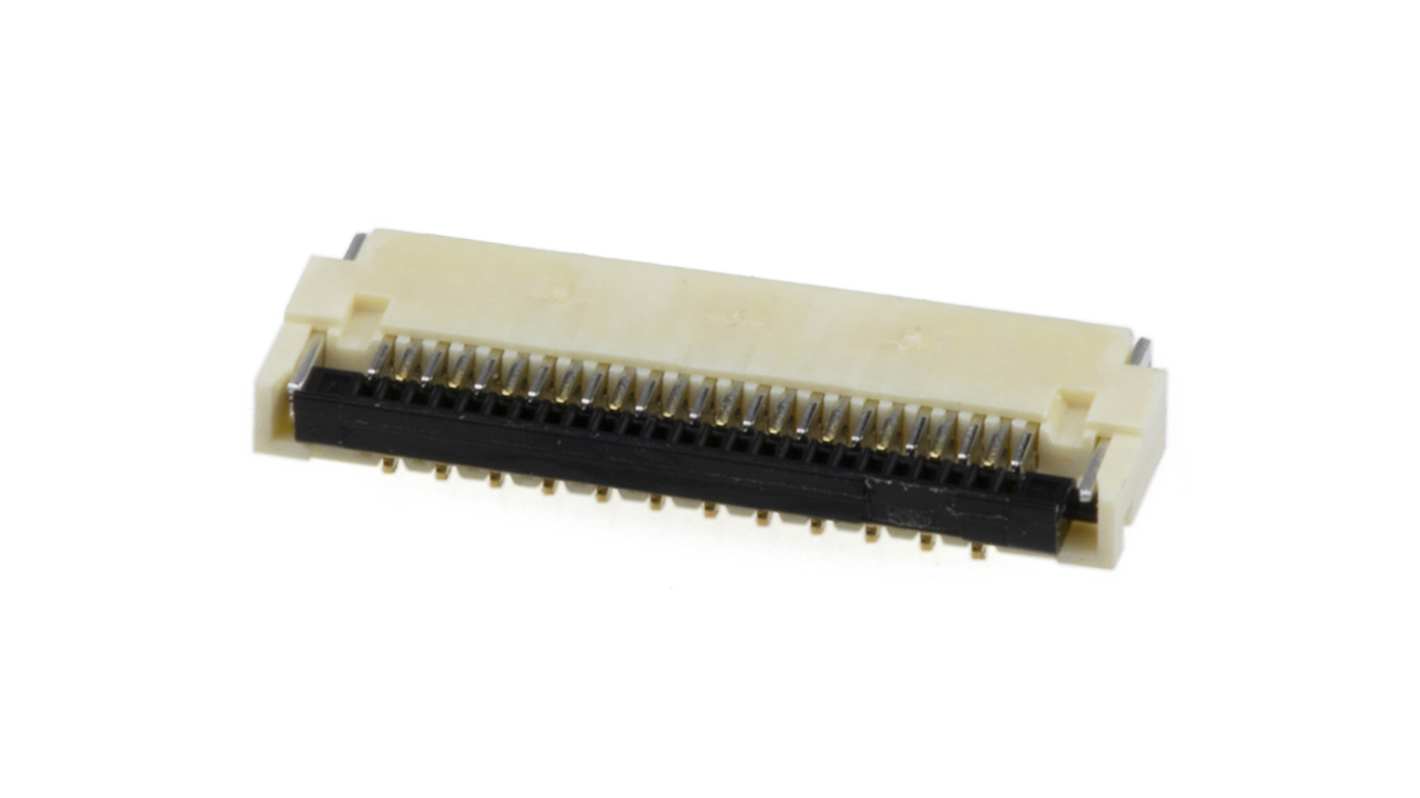

Image representative of range
Subtotal (1 reel of 3000 units)*
£2,438.40
(exc. VAT)
£2,926.08
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,438.40 | £0.813 |
*price indicative
- RS Stock No.:
- 505-846
- Mfr. Part No.:
- 502598-2593
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 25 | |
| Product Type | FPC Connector | |
| Sub Type | Connector | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.3mm | |
| Current | 0.3A | |
| Mount Type | Surface Mount | |
| Connector Gender | Female | |
| Contact Position | Dual | |
| Termination Type | Surface Mount | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Series | 502598-2593 | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Number of Rows | 1 | |
| Standards/Approvals | chemSHERPA, IEC-62474, IEC 61249-2-21, EU RoHS | |
| Contact Plating | Gold | |
| Housing Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 25 | ||
Product Type FPC Connector | ||
Sub Type Connector | ||
Contact Material Phosphor Bronze | ||
Pitch 0.3mm | ||
Current 0.3A | ||
Mount Type Surface Mount | ||
Connector Gender Female | ||
Contact Position Dual | ||
Termination Type Surface Mount | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Series 502598-2593 | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Number of Rows 1 | ||
Standards/Approvals chemSHERPA, IEC-62474, IEC 61249-2-21, EU RoHS | ||
Contact Plating Gold | ||
Housing Material Phosphor Bronze | ||
- COO (Country of Origin):
- JP
The TE Connectivity 0.30mm Pitch Back Flip FPC Connector is meticulously designed for Advanced connectivity solutions in Compact applications. With a right-angle configuration and a surface mount design, this connector provides optimal space efficiency without compromising performance. Ideal for a variety of use cases, it supports dual contact styles and ensures reliable connections throughout its designated lifecycle. The connector is particularly suited for environments where durability and compliance are paramount, making it a robust choice for modern electronic devices. Its low-halogen status further affirms its commitment to environmentally friendly manufacturing while adhering to industry standards for safety and longevity. Offering a maximum current rating of 0.3A and a voltage rating of 50V, it sets a Benchmark for efficient electrical performance in the Compact connector category.
Designed for surface mount applications to optimise PCB space
Back flip actuator allows for easy mating and demating
Durable construction ensures long-lasting performance in demanding environments
Low-halogen construction supports eco-friendly initiatives
Polarised design enhances correct orientation during installation
Compatible with a range of FPC-only wire and cable types
Features embedded PCB retention for improved stability in installation
Supports operational temperatures from -40°C to +105°C for versatility in applications
