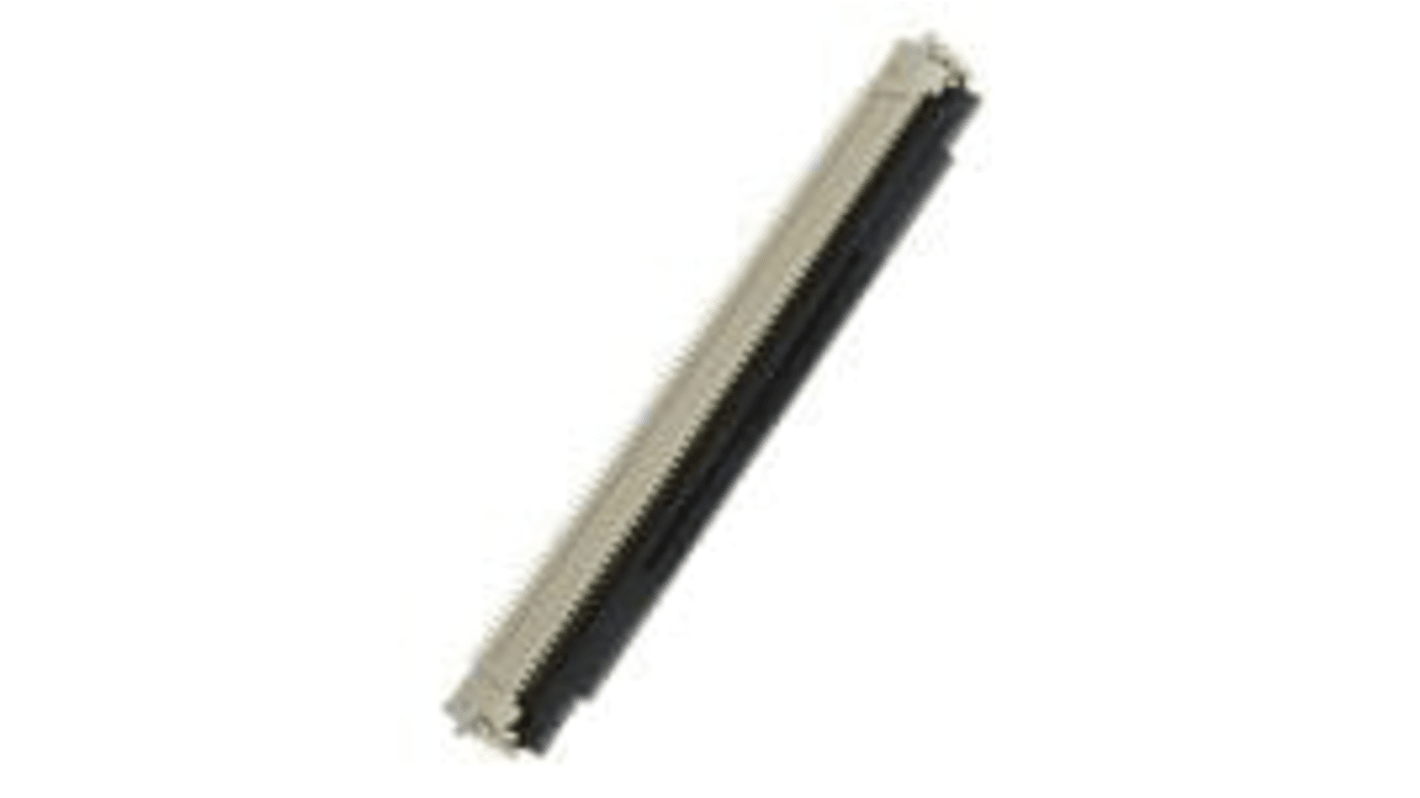

Molex, 502790-6491 0.5 mm Pitch 64 Way Right Angle FPC Connector, Surface Mount
- RS Stock No.:
- 476-557
- Distrelec Article No.:
- 304-56-473
- Mfr. Part No.:
- 502790-6491
- Brand:
- Molex
Subtotal (1 reel of 2000 units)*
£3,110.88
(exc. VAT)
£3,733.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £3,110.88 | £1.555 |
*price indicative
- RS Stock No.:
- 476-557
- Distrelec Article No.:
- 304-56-473
- Mfr. Part No.:
- 502790-6491
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 64 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Current | 0.5A | |
| Mount Type | Surface | |
| Contact Position | Bottom | |
| Termination Type | Surface Mount | |
| Orientation | Right Angle | |
| Voltage | 50 Vrms | |
| Series | 502790-6491 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CHINA RoHS, EU RoHS | |
| Number of Rows | 1 | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 64 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Current 0.5A | ||
Mount Type Surface | ||
Contact Position Bottom | ||
Termination Type Surface Mount | ||
Orientation Right Angle | ||
Voltage 50 Vrms | ||
Series 502790-6491 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CHINA RoHS, EU RoHS | ||
Number of Rows 1 | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- VN
The TE Connectivity front flip type connector is designed to facilitate seamless connections in your FFC/FPC applications. With its innovative 0.50mm pitch and surface mount configuration, it caters to the need for efficient and reliable electronic connectivity. The lightweight and compact design, featuring double bottom contact technology, enhances space efficiency while ensuring that connections remain robust and dependable. Whether used in consumer electronics or industrial applications, this connector guarantees optimal performance across various environments, with an operating temperature range from -40°C to +105°C. Easily mounted and compatible with FFC/FPC cables that feature ear-tabs, this connector is perfect for those who demand the best in quality and functionality.
Utilises a 90° entry angle for straightforward integration into designs
Incorporates PCB retention features to ensure stability during operation
Crafted from high-quality phosphor bronze for enhanced conductivity and durability
Designed with gold plating to minimise resistance at the contact points
Employs a surface mount termination style, catering to modern manufacturing practices
Includes an embossed tape packaging for convenient handling and application
Halogen-free material composition supports eco-conscious initiatives
Polarised design ensures correct orientation during installation
